NTA520E-10A

Gasoline Earth Auger NTA520E-10A for Agricultural Drilling and Other Semi-Professional Use

The engine and crankshaft body is made of aluminum alloy material with optimal light weight Machining at CNC center has good accuracy.

The plastic material adopts excellent grade nylon reinforcement, which has good thermal resistance and physical strength.

The ignition system of this machine is set to easy start, which has fast starting speed, easy and labor-saving.

The important power output part gearbox is manufactured with high precision and strict tolerance control, the service life can reach more than 200 hours.

All machines are accurately tested and adjusted to ensure that the engine works stably under suitable fuel consumption and temperature, and ensures that it will not stop at high temperature or be difficult to start under long-term high-speed operation.

PRODUCT DESCRIPTION

The Craftop NTA520E-10A agricultural auger is equipped with a 51.7cc gasoline engine. This gasoline auger is used for a wide variety of drilling tasks, including tree planting, road construction, fence post setting, etc. It has an easy-to-use ergonomic design. We designed its handle to work with one or two operators, with a low-vibration frame and stop button control with user safety in mind. It can accommodate bits 34″ or 36″ in length with 8″ to 12″ diameters. Auger bits can be easily replaced without tools thanks to their quick connector.

SPECIFICATIONS

Package dimension	540 x 385 x 285 (21.3 x 15.2 x 11.2 inch) 815 x 265 x 280 (32.1 x 10.4 x 11 inch)
Gross weight	17.4 kg (38 lbs)
Net weight	16 kg (35 lbs)
Application type	Heavy-duty
Displacement	51.7 cc
Engine power	1.5 kW / 7800 rpm
Fuel	Mixed gasoline and two-stroke air-cooled engine oil with a ratio 40:1
Fuel capacity	750 ml
Starter type	Easy start
Clutch type	Centrifugal
Drilling gear type	Spur gear
Maximum spindle speed	350 rpm
Recommended drill size	6”, 8”, 10”

INCLUDES

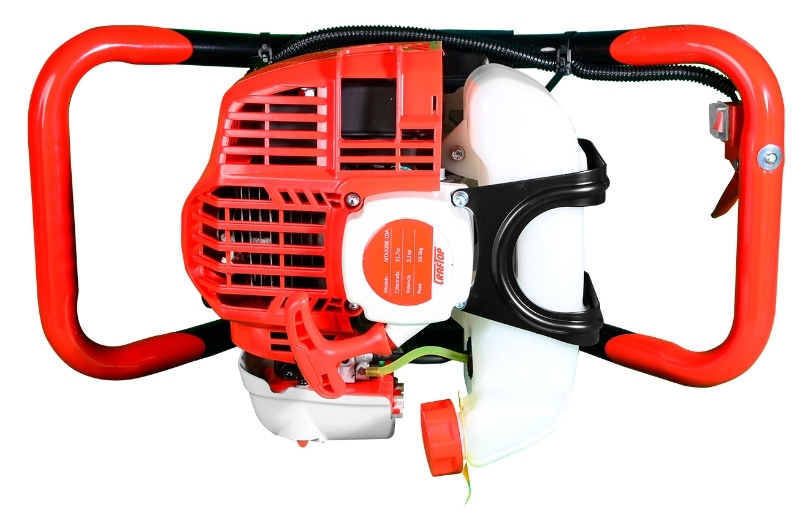

(1x) Power unit

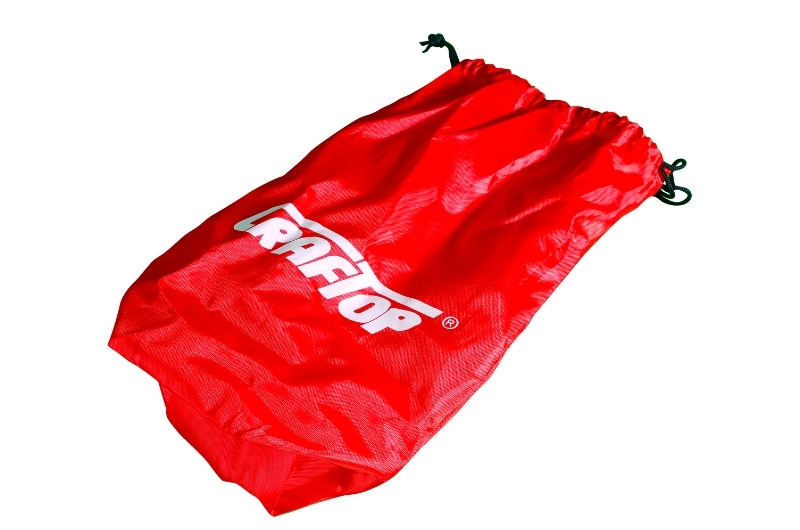

(1x) Tool bag
(1x) Warranty Card
(1x) Owner’s Manual

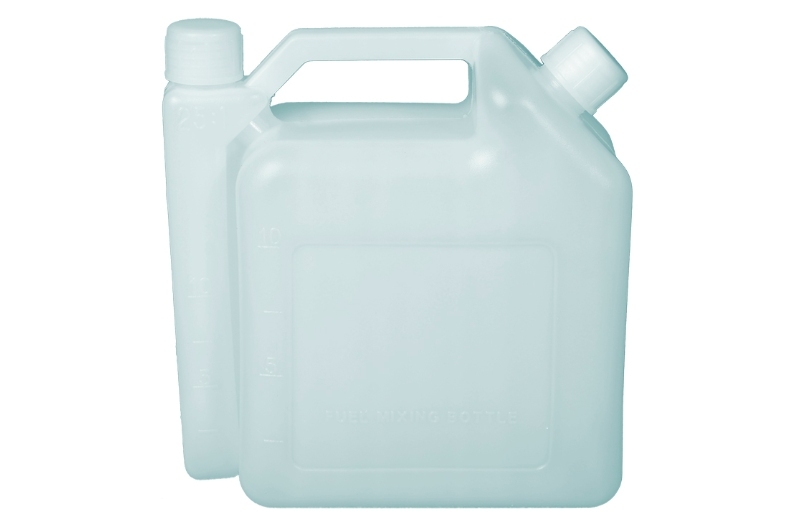

(1x) Two-hole fuel mixing bottle

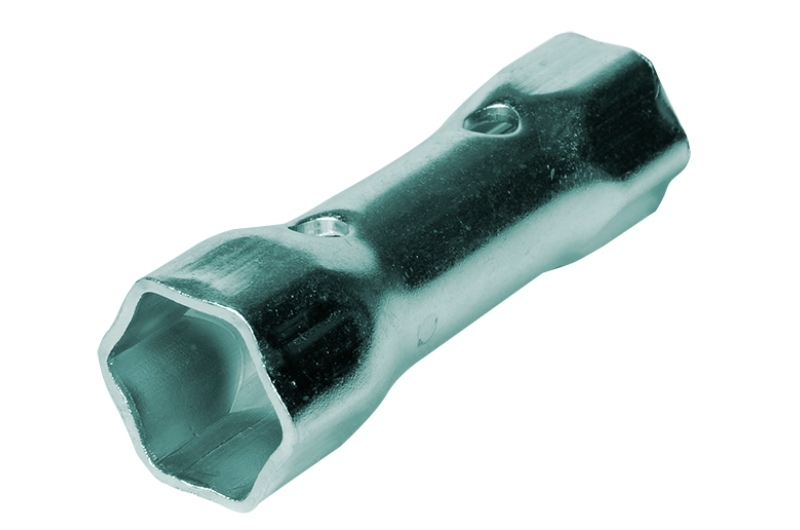

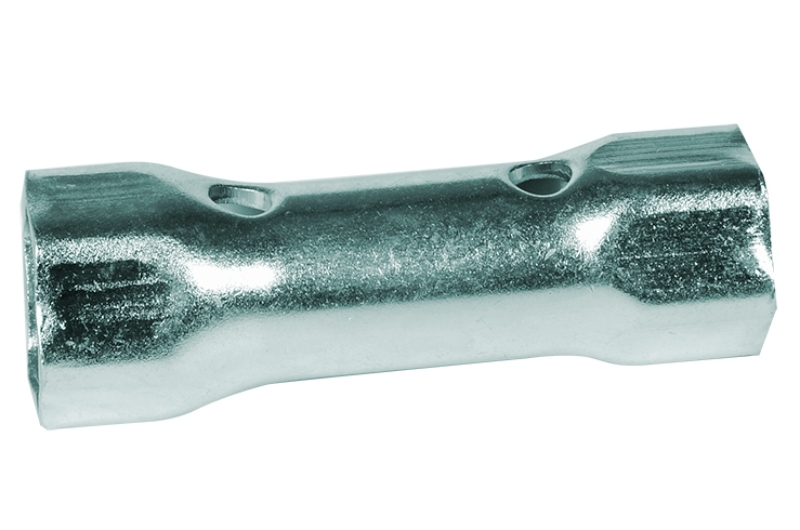

(1x) Socket wrench 17×19

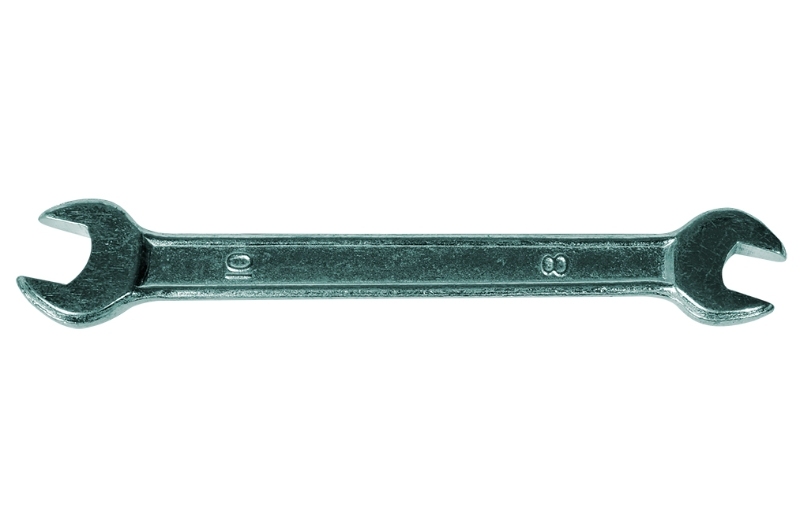

(1x) Open-end wrench 8-10
(1x) Torx key (4mm) lengthened

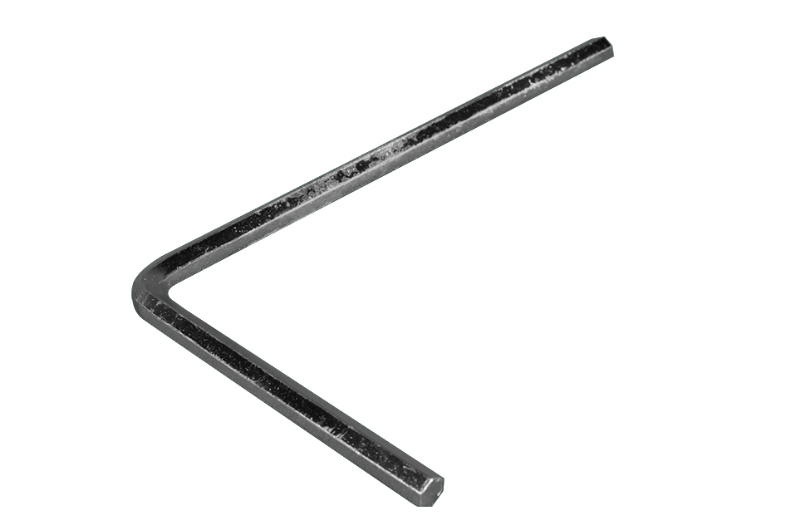

(1x) Hex wrench (5mm) lengthened

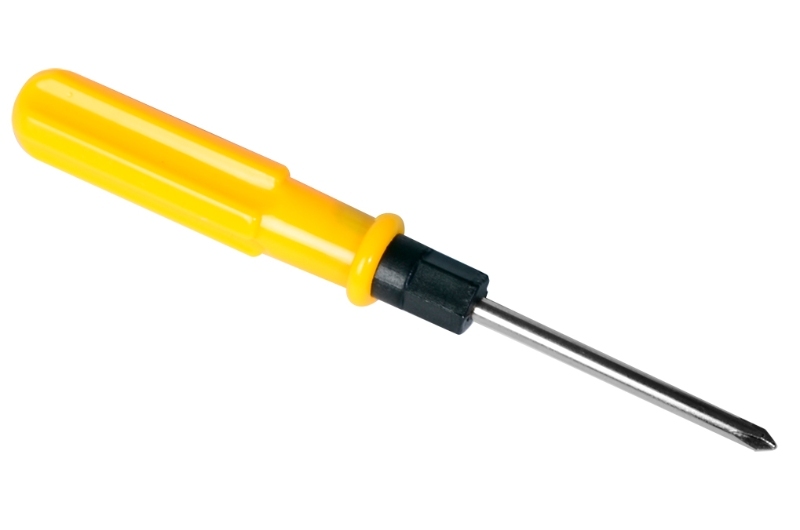

(1x) Dual-purpose screwdriver

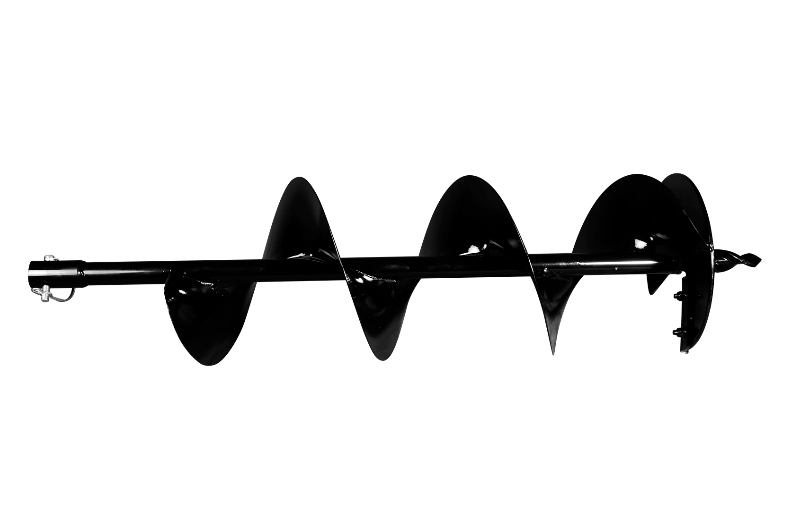

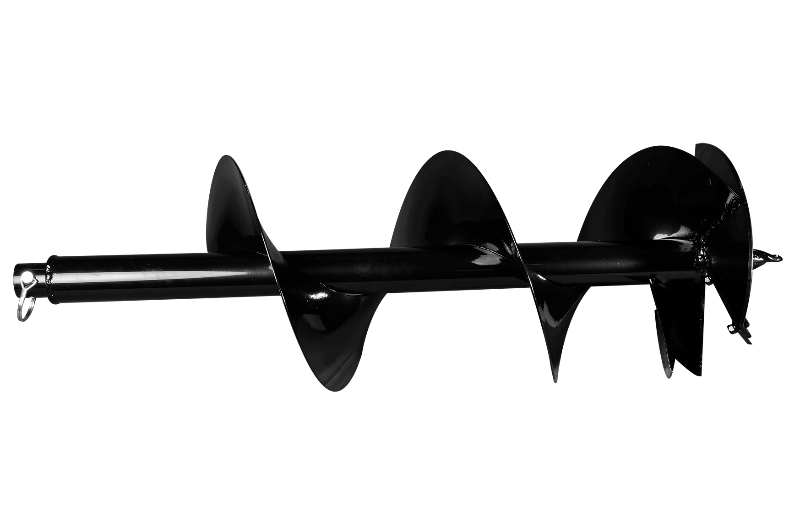

(1x) Drill bit 8″ or 10″ (choose either of them)

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

NTA520F-10A

Gasoline Earth Auger NTA520F-10A, The Best Soil Auger for Ground Drilling & Post Hole Digging

GGR5500A

GGR5500A Gasoline Power Generator for Professional Use

NTB450B

41.5cc Brush Cutter NTB450B Professional Grass Trimmer Machine

NTBG520D

NTBG520D Professional Gasoline Grass Brush Cutter

NTB430D

NTB430D Heavy Duty Brush Cutter for Professional Use

NT9210

Gasoline Chainsaw NT9210 with 36” Bar Length, Professional Woodcutting Tool

NT6800

Gasoline Saw NT6800 with 16”-26” Bar Length, Professional Forest Saw, Wood Logging Machine

NT6200

Gasoline Chain Saw NT6200 with 16”-24” Bar Length, Professional Forest Saw, Wood Logging Machine

FAQ

Q Where can I buy spare parts for my auger?

A You can buy spare parts for your auger with our distributors. Be sure to provide your auger’s model and serial number to obtain the correct parts.

Q What is the drilling capacity of an auger?

A The drilling capacity of an auger varies by model and brand, but they can generally drill holes of various diameters and depths, from a few centimeters to several meters.

Q What is the difference between a two-stroke and a four-stroke auger?

A Two-stroke augers require oil and gasoline in the fuel tank, while four-strokes use gasoline without an oil mixture. Four-strokes tend to be more fuel-efficient and emit less smoke.

Q How do you keep an auger in good condition?

A To keep an auger in good condition, you must: ● Regularly clean the bit to prevent dirt buildup. ● Check and adjust drive chain tension. ● Change the oil and spark plug according to the manufacturer’s recommendations. ● Inspect and adjust belts and pulleys if necessary.

Q What are the key parts of a motorized auger?

A The key elements of a power auger include the motor, grip handle, throttle trigger, bit or auger, and the gearbox that transmits power from the engine to the bit.

Q What safety precautions should I take when using an auger?

A When using an auger, it is essential to follow these precautions: ● Wear personal protective equipment, such as safety glasses and a hard hat. ● Read and follow the manufacturer’s instructions. ● Keep hands and feet away from the operating bit. ● Avoid drilling near buried utility lines.

Q What types of augers are there?

A There are two main types of augers: hand-held and motorized. Hand-held augers are manually operated, while motorized ones use a gasoline or electric motor to facilitate drilling.

Q What is the primary use of an auger?

A Augers are primarily used to dig holes in the ground, making them ideal for installing posts, fences, signs, trees, and columns, among other construction and landscaping applications.

Q What is an auger?

A An earth auger is a powered tool designed to drill holes in the ground efficiently. It is equipped with a rotary bit that makes digging holes of different sizes and depths easy.
