DGR6500E

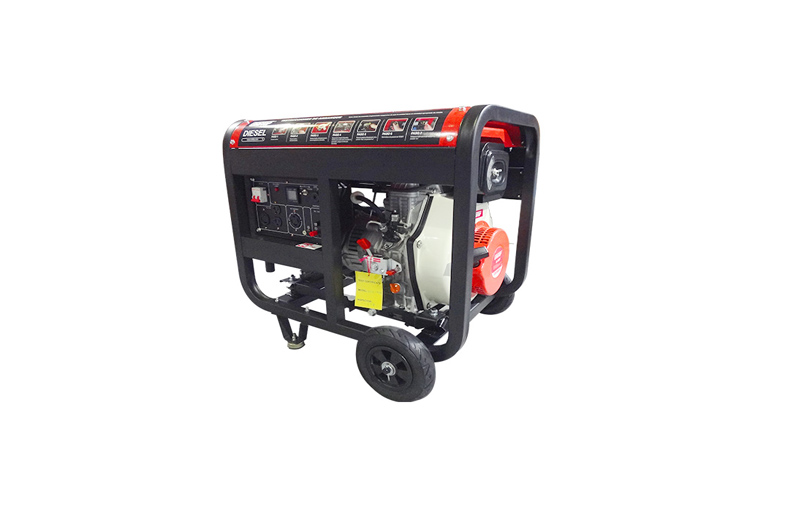

Diesel Generator DGR6500E

1. EURO V certified diesel engine for enhanced combustion and powerful performance.

2. 100% copper motor with F-class insulation for high efficiency and stable voltage output.

3. Intelligent voltage AVR regulation for minimal waveform distortion.

4. AC and DC multifunctional outputs.

5. Equipped with an intelligent digital display control panel.

6. Optional remote control technology enables quick automatic switching between grid and diesel power.

7. Sturdy construction with reinforced thick square tube frame.

8. Lightweight design and four-wheel mobility for greater convenience.

9. Widely used for emergency power generation and welding operations.

PRODUCT DESCRIPTION

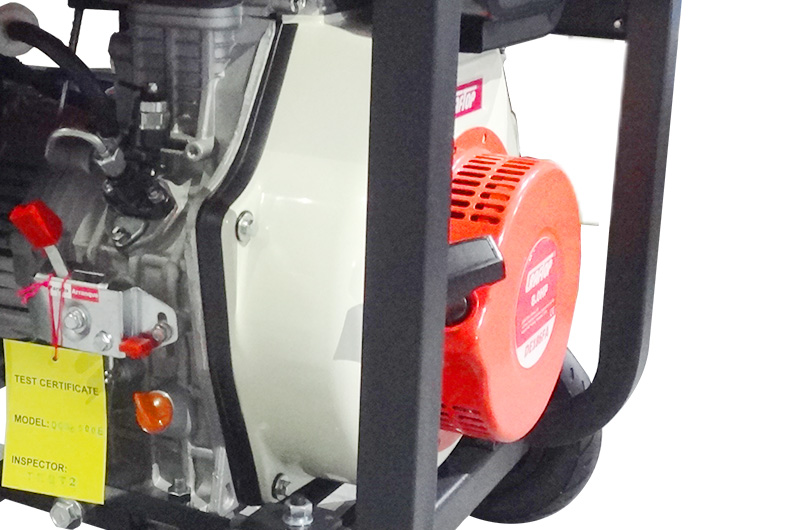

1. Equipped with EURO V certified CRAFTOP four-stroke diesel engine, which adopts top clearance oil pump and low inertia fuel injection technology to achieve more complete combustion and more powerful power;

2. Using 100% all-copper motor, Class F insulation, high conversion efficiency; intelligent voltage AVR adjustment, stable voltage output and small voltage waveform distortion;

3. Optional remote control technology and ATS automatic switching technology can realize rapid automatic switching between mains electricity and diesel electricity;

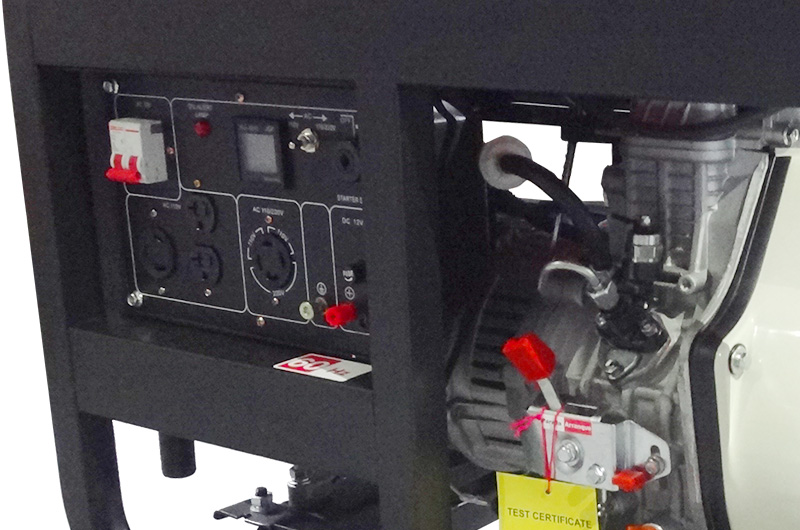

4. Equipped with an intelligent digital display control panel, which has overload, overvoltage, overcurrent and low-voltage protection, and a three-in-one intelligent display of voltage, frequency and timing, making it easy to maintain and maintain;

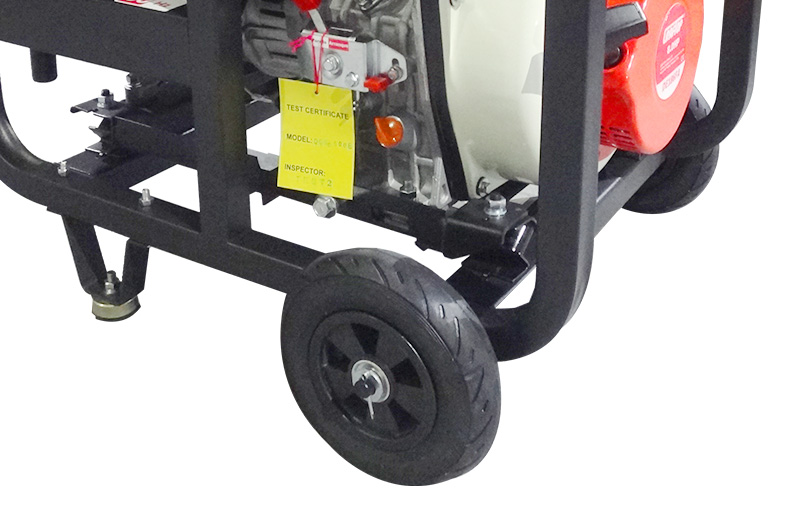

5. Thickened and thickened square tube frame, the structure is more reliable and firm, the lightweight design and four-wheel movement are more convenient, and the use is more convenient;

6. AC and DC multi-function output, fully meet user needs, widely used in emergency power generation and welding operations

SPECIFICATIONS

Product Name	5.0kW Silent Diesel Generator
Model Name	DGR6500E
Generator type (avr/inverter)	AVR-CASE
Motor type (2stroke/4stroke/diesel)	4Stroke/Diesel
Displacement (cc)	418cc
Power output (rpm)	3600rpm
Oil engine capacity (L)	1.65L
Three phase max power	─
Three phase rated power	─
Single phase max power (kW)	5.5kW
Single phase rated power (kW)	5.0kW
Voltage (V)	110V+220V
Frequency (Hz)	60Hz
Fuel consumption (g/kWh or L/h)	≤280g/kWh
Running time at 75% of load hours
Tank capacity (L)	12.5L
Starting system	Recoil&Electric
Guaranteed sound level ( (LWA) dB (A))*
Noise emission at 7m (dB (A))*	85dB
Weight (kg(lbs))	113kg
Socket type ac (eu/uk/usa..)	USA
Number of sockets AC	2 Postion
Socket type DC	Post
Number of sockets DC	2 Post
Oil guard	√
Oil alarm	√
Fuel level gauge	√
Thermic protection	√
Hour meter	─
Volt meter	√
Frequency meter	─
Wheel kit	√
Battery charger	√
Logistic
Box size (mm)	740x505x630mm
Box weight (kg(lbs))	113kg
Units container 20/40/40HQ	108/288pcs(20/40GP)
