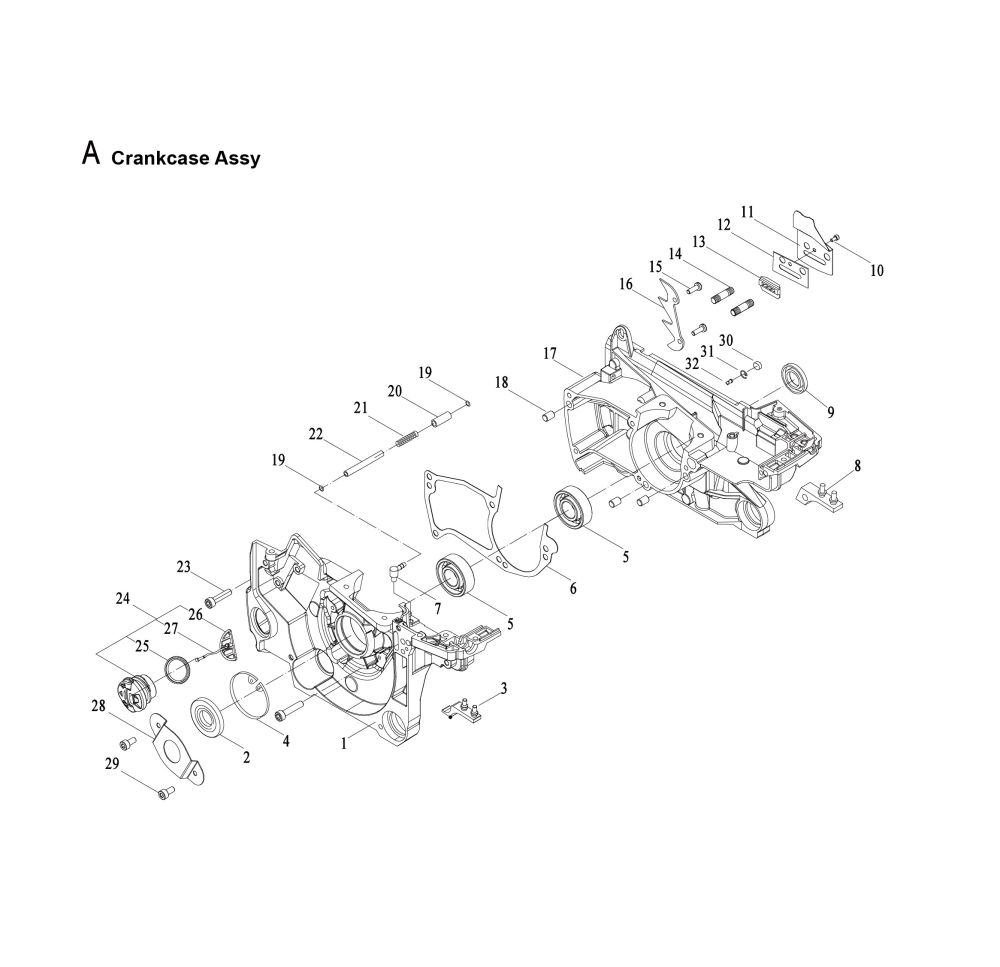

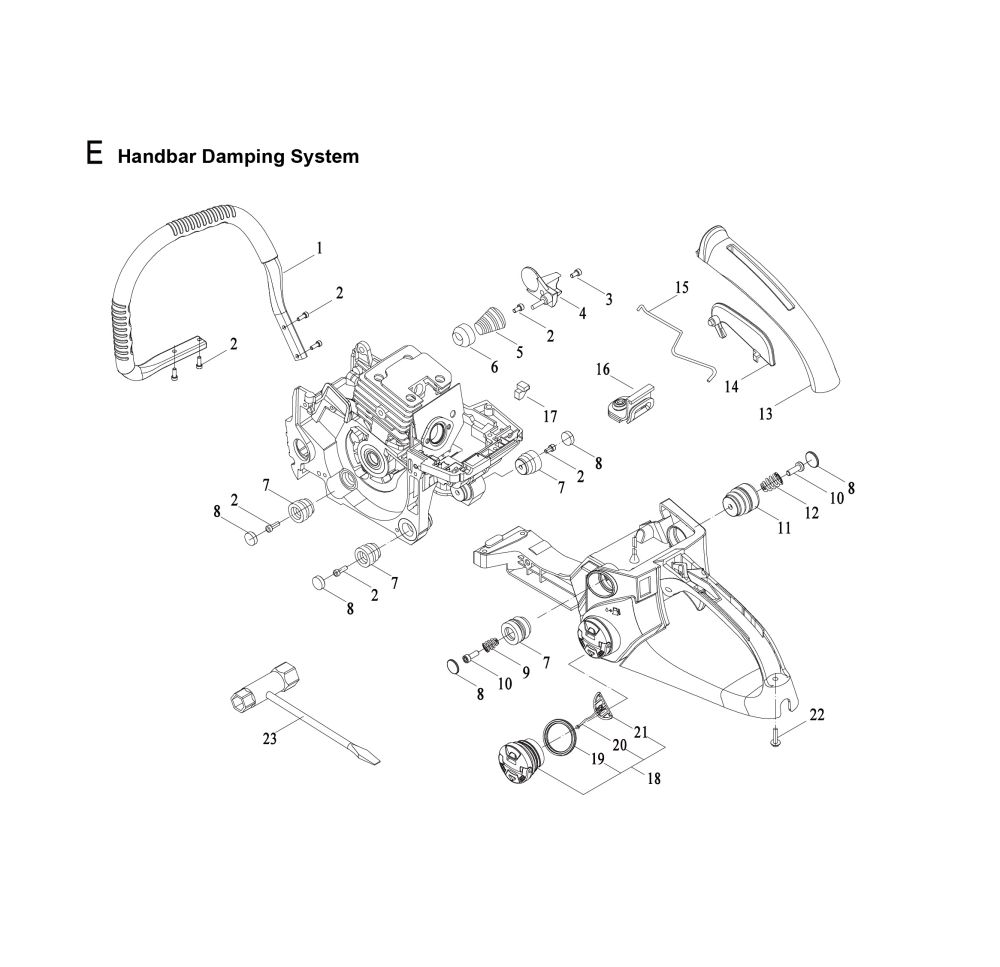

| A. Box Assembly | E. Handlebar and Shock Absorption System | ||
| Code | Part Name | Code | Part Name |

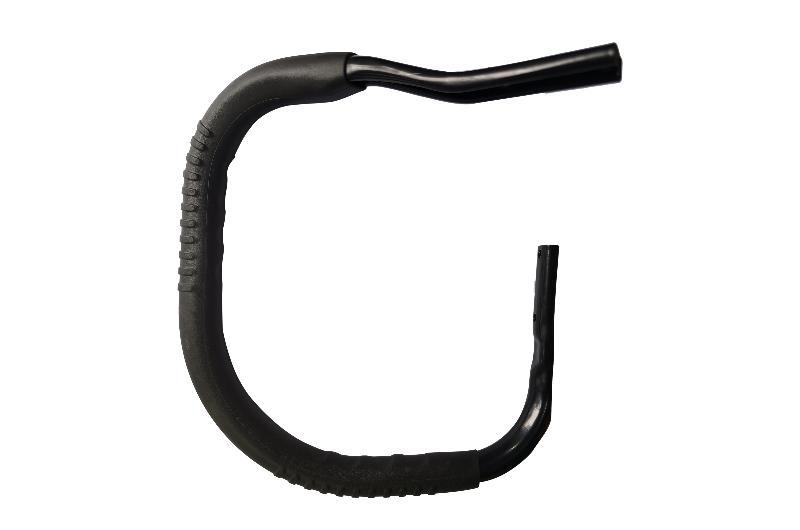

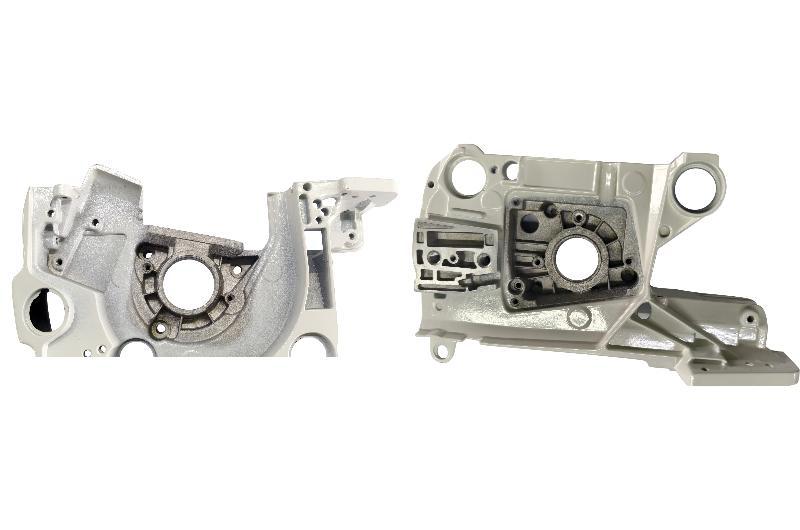

| A-1 | Crankcase L | E-1 | Handle |
| A-2 | Left Oil Seal | E-2 | Screw |
| A-3 | Left Box Shock Absorber | E-3 | Screw |
| A-4 | Hole Retaining Ring | E-4 | Tower Spring Gland |

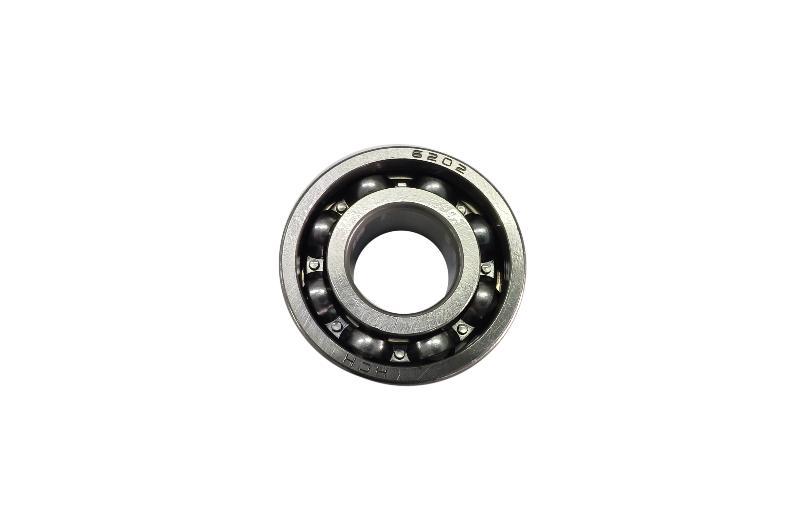

| A-5 | Bearing | E-5 | Conical Tower Spring |
| A-6 | Packing Paper Pad | E-6 | Tower Spring Seat |
| A-7 | Pipe Joint | E-7 | Shock Absorber Seat (Short) |
| A-8 | Double Needle Shock Absorber | E-8 | Dust Cover |
| A-9 | Right Oil Seal | E-9 | Shock Absorber Spring (Short) |
| A-10 | Screw | E-10 | Screw |
| A-11 | Oil Outlet Cover | E-11 | Shock Absorbing Seat (Long) |
| A-12 | Oil Outlet Cover Gasket | E-12 | Shock Absorber Spring (Long) |

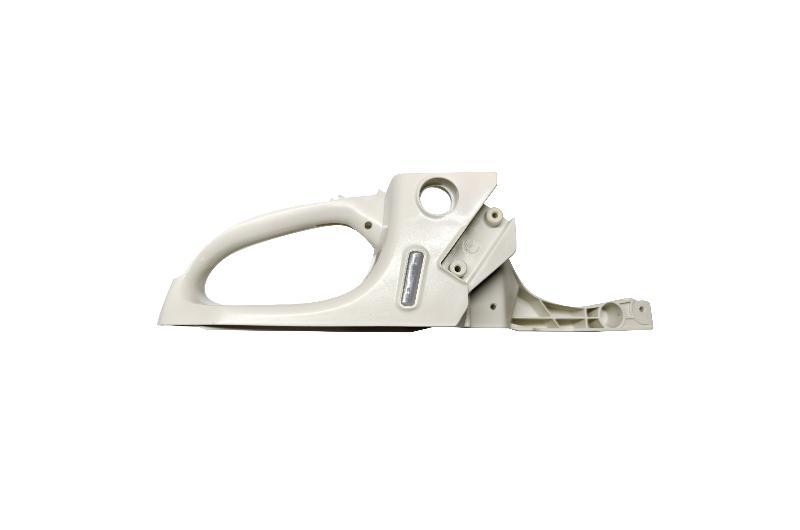

| A-13 | Chain Guide Block | E-13 | Rear Handle Cover |
| A-14 | Stud | E-14 | trigger Control Arm |
| A-15 | Screw | E-15 | Throttle Push Rod |
| A-16 | Chainsaw Bumper Spikes | E-16 | Dustproof Rubber Block |
| A-17 | Crankcase R | E-17 | Wind Resistance Tie Rod Shock Absorber |
| A-18 | Cylindrical Pin | E-18 | Fuel Filler Cap Assy |
| A-19 | Oil Inlet Pipe Circlip | E-19 | Fuel Tank Cap Gasket |
| A-20 | Insulation Sleeve | E-20 | Oil Bottle Cap Lanyard |
| A-21 | Spring Sleeve | E-21 | Hook Up |
| A-22 | Negative Pressure Oil Pipe | E-22 | Screw |
| A-23 | Screw | E-23 | Socket Wrench |

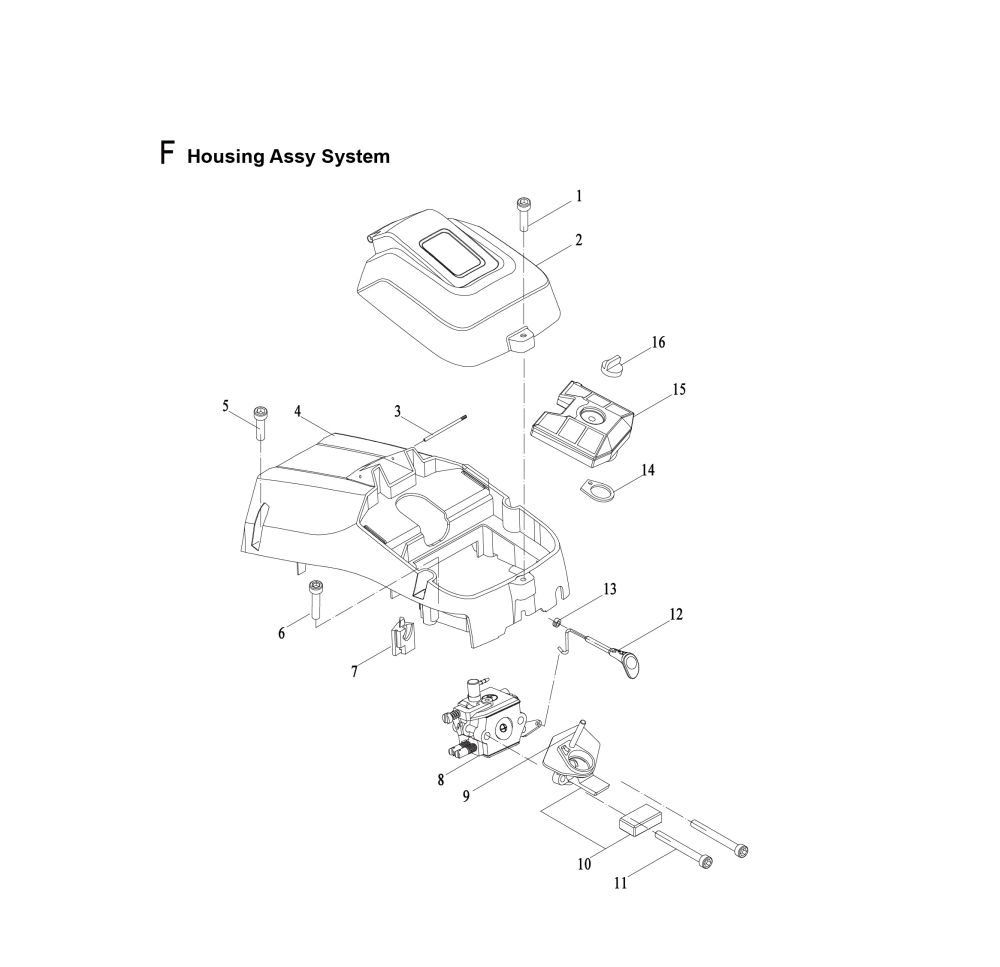

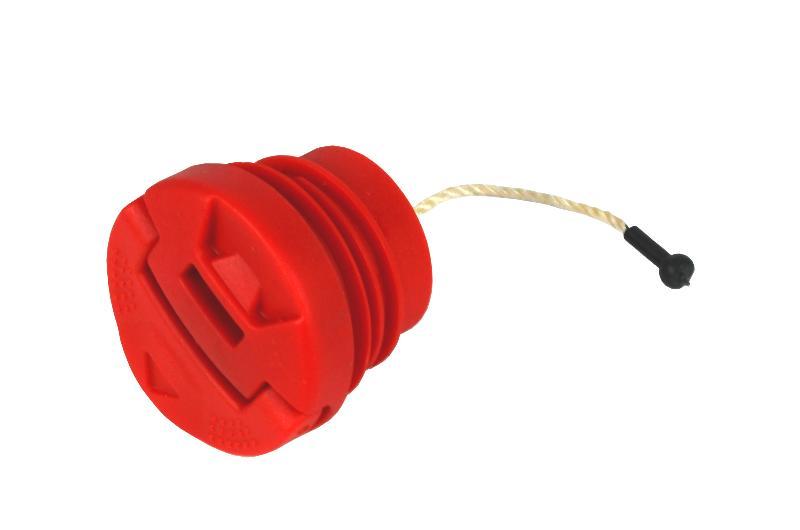

| A-24 | Oil Tank Cap Assembly | F. Air filter and outer cover | |
| A-25 | Oil Tank Cap Gasket | Code | Part Name |
| A-26 | Hook Up | F-1 | Screw |
| A-27 | Oil Bottle Cap Lanyard | F-2 | Upper Cover |
| A-28 | Oil Seal Pressure Plate | F-3 | Fuel Tank Cap Pin |
| A-29 | Screw | F-4 | Cylinder Cover |
| A-30 | Sponge | F-5 | Screw |
| A-31 | Intake Valve Circlip | F-6 | Screw |
| A-32 | Breather Valve | F-7 | High Voltage Line Sealing Sheet |

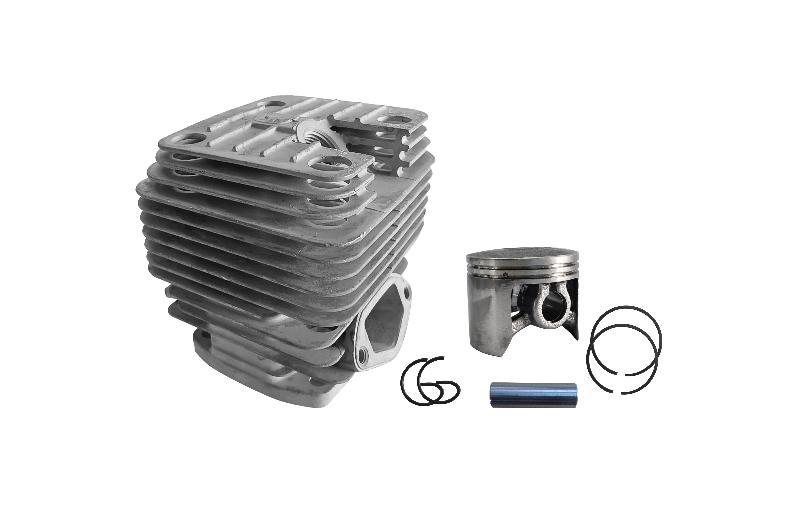

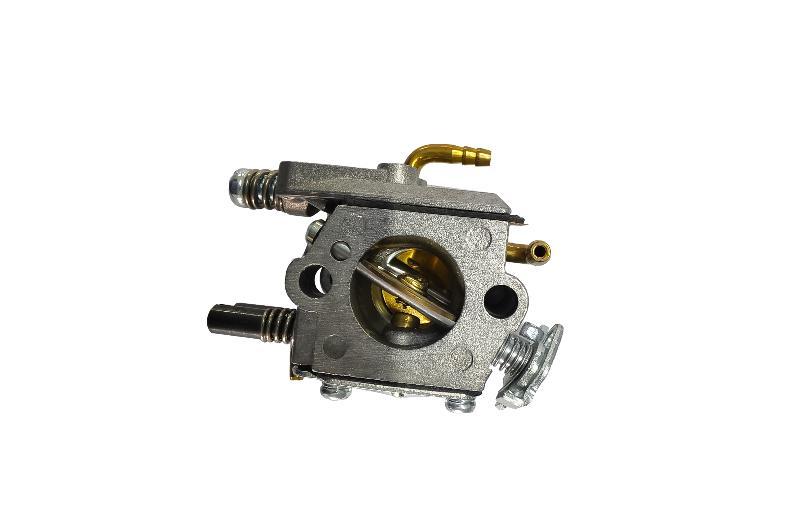

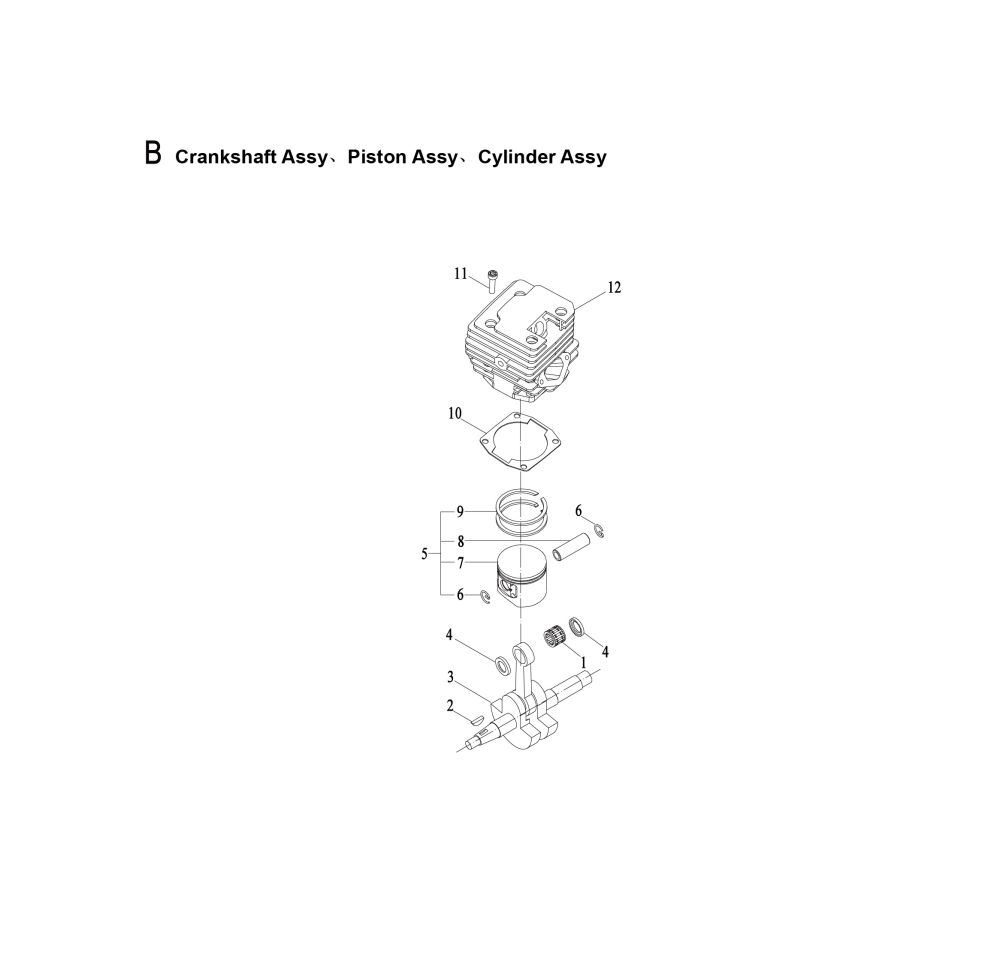

| B. Crankshaft Piston Cylinder Assembly | F-8 | Carburetor (Linked, With Oil Bubble) | |
| Code | Part Name | F-9 | Stud |
| B-1 | Small Head Needle Roller Bearing | F-10 | Intake Pipe |
| B-2 | Half Round Key | F-11 | Screw |

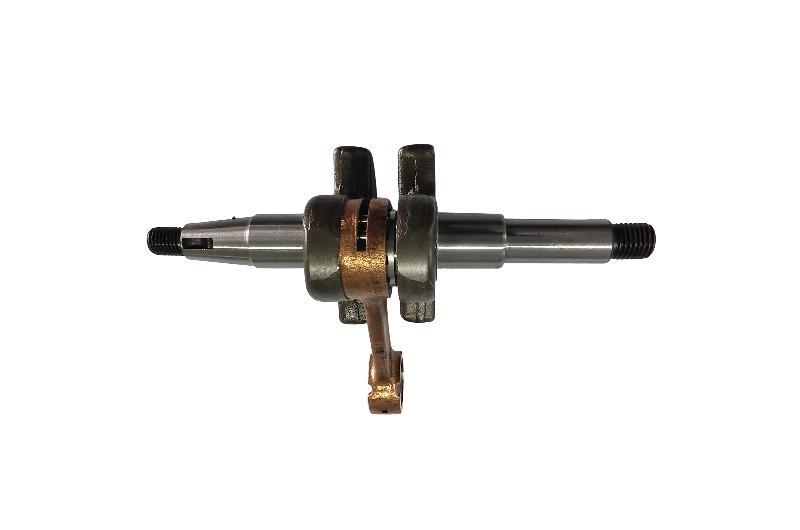

| B-3 | Crankshaft | F-12 | Damper Lever |
| B-4 | Small Head Anti-Friction Pad | F-13 | Open Rubber Gasket |
| B-5 | Piston Group | F-14 | Gasket, Air Filiter |

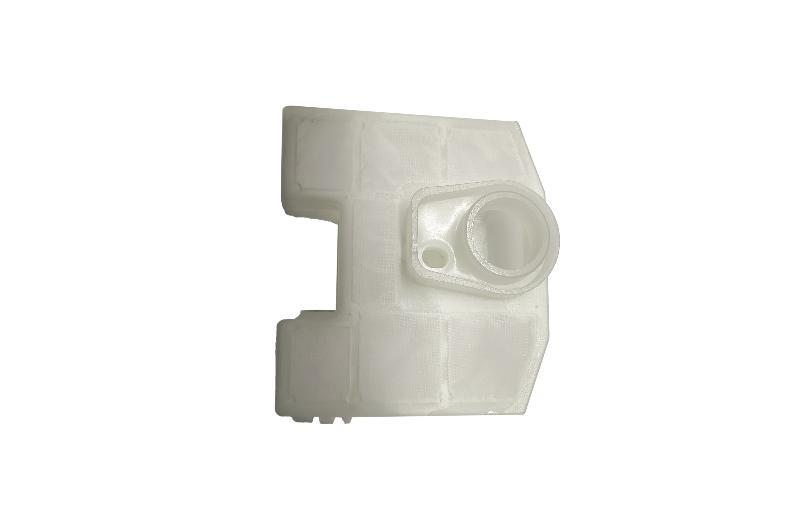

| B-6 | Piston Pin Circlip | F-15 | Air Filter |
| B-7 | Piston | F-16 | Knob, Air Filter |

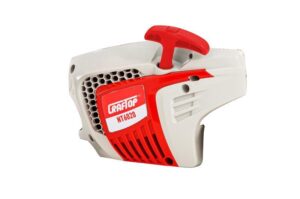

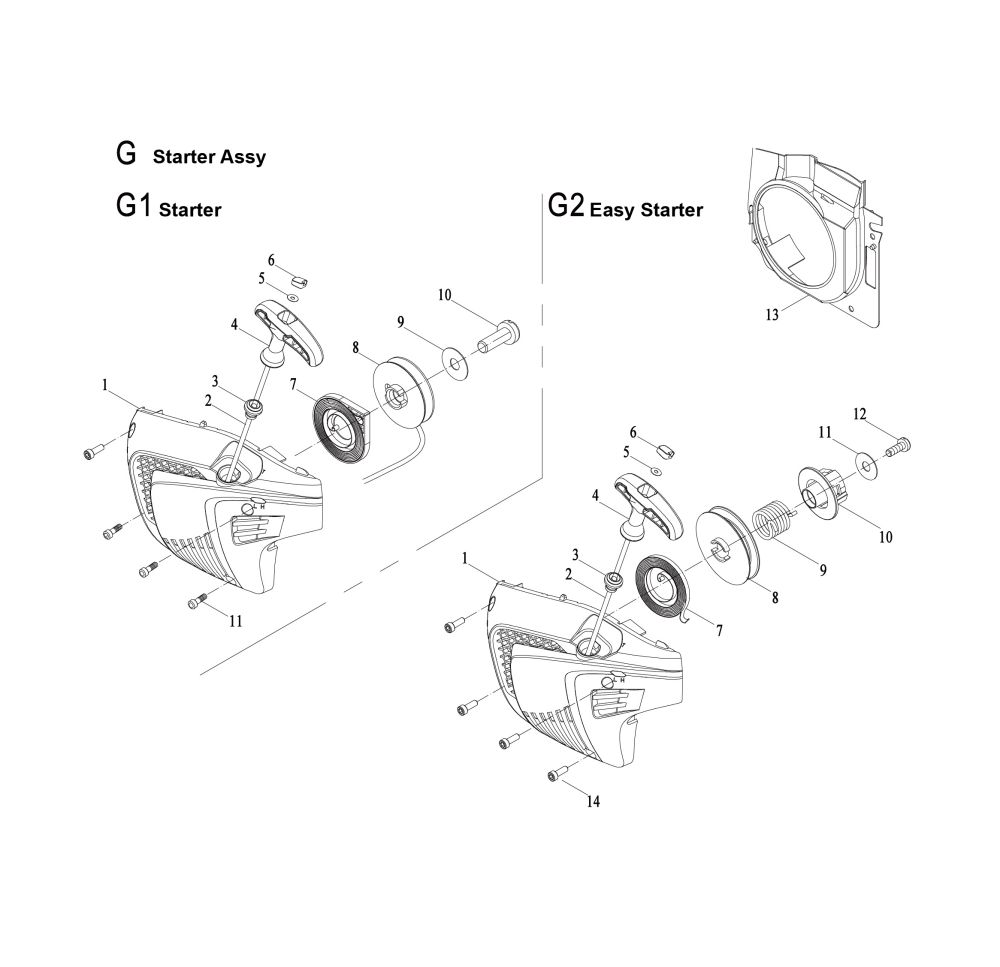

| B-8 | Piston Pin | G1. Starter Assembly | |
| B-9 | Piston Rings | Code | Part Name |

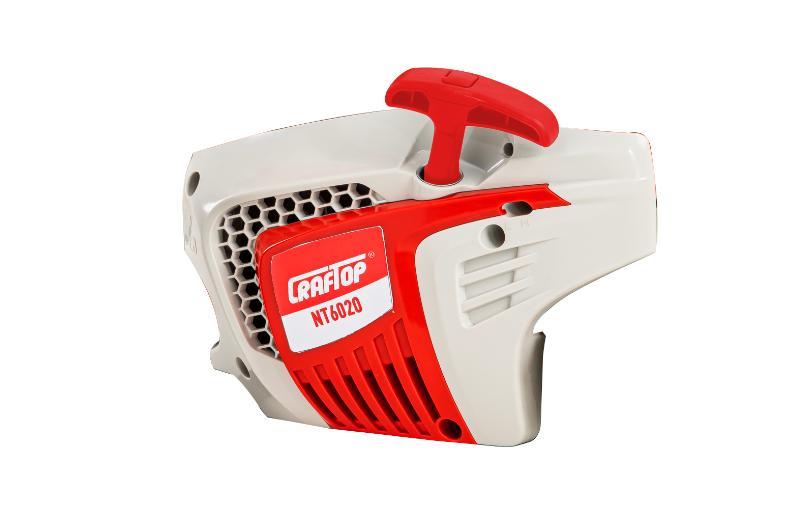

| B-10 | Cylinder Gasket | G1 | Starter Assembly |
| B-11 | Screw | G1-1 | Cover, Starter |
| B-12 | Cylinder | G1-2 | Drawstring |

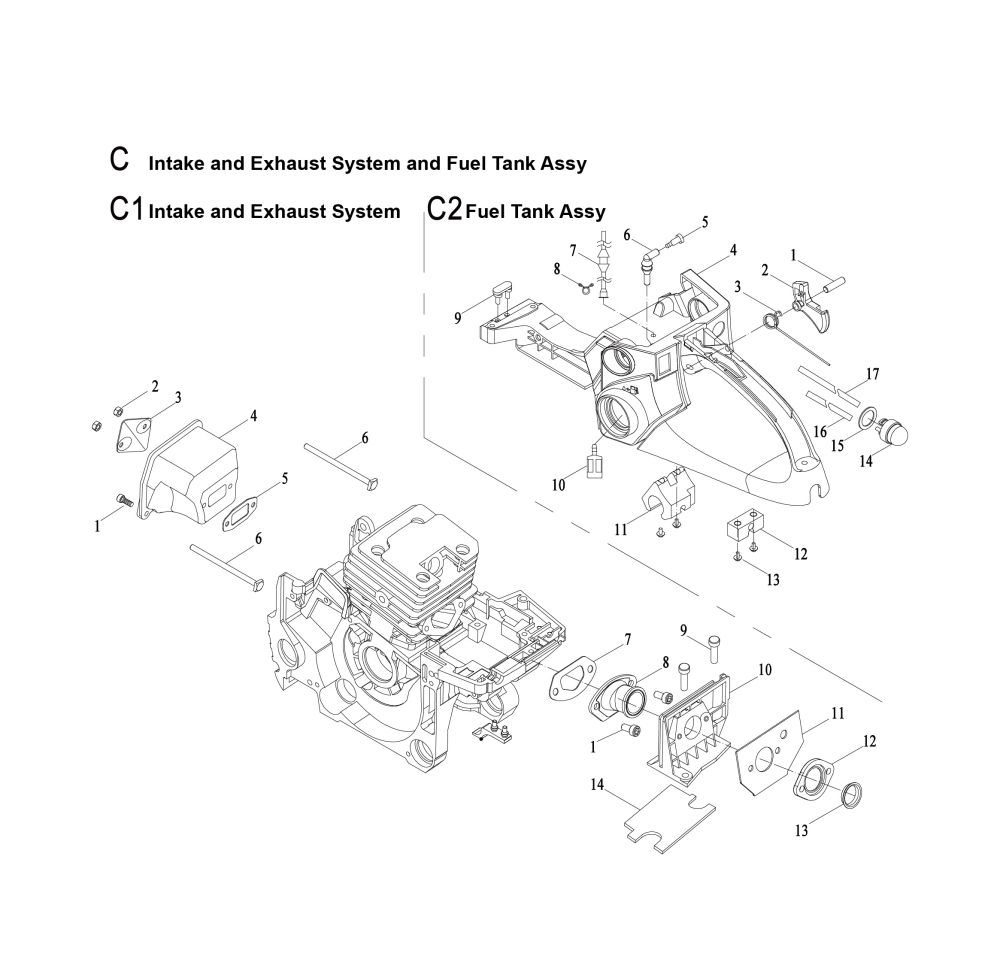

| C1. Intake and Exhaust System | G1-3 | Noose | |
| Code | Part Name | G1-4 | Start The Handle |
| C1-1 | Screw | G1-5 | Flat Pad |
| C1-2 | Nut | G1-6 | Handle Plug |
| C1-3 | Double Holes Silencer Pressure Plate | G1-7 | Return Coil Spring (With Box) |

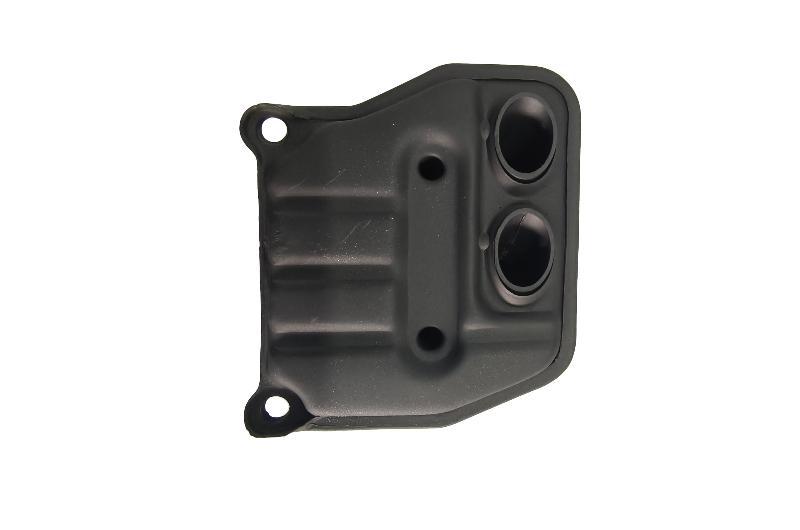

| C1-4 | Muffler (double holes) | G1-8 | Rope Pulley |
| C1-5 | Muffler Gasket | G1-9 | Flat Pad |
| C1-6 | Bolt | G1-10 | Screw |
| C1-7 | Intake Pipe Paper Gasket | G1-11 | Screw |
| C1-8 | Intake Pipe | G2. Easy Starter Assembly | |
| C1-9 | Screw | Code | Part Name |
| C1-10 | Intake Pipe Bracket | G2 | Easy Starter Assembly |
| C1-11 | Thermal Paper Pad | G2-1 | Starter Cover (Easy Start) |
| C1-12 | Flange | G2-2 | Drawstring |
| C1-13 | Intake Pipe Liner | G2-3 | Noose |
| C1-14 | Lower Potholder | G2-4 | Start The Handle |
| C2. Fuel Tank Assy | 00000000 | G2-5 | Flat Pad |
| Code | Part Name | G2-6 | Handle Plug |
| C2-1 | Cylindrical Pin | G2-7 | Return Coil Spring (With Box) |
| C2-2 | Throttle trigger | G2-8 | Rope Pulley |
| C2-3 | trigger Torsion Spring | G2-9 | Buffer Spring |
| C2-4 | Chain Saw Fuel Tank | G2-10 | Cover, Pulley |
| C2-5 | Balancer | G2-11 | Flat Pad |
| C2-6 | Balancer Tube | G2-12 | Screw |
| C2-7 | Fuel Pipe | G2-13 | Air Deflector |
| C2-8 | Fuel Pipe Circlip | G2-14 | Screw |

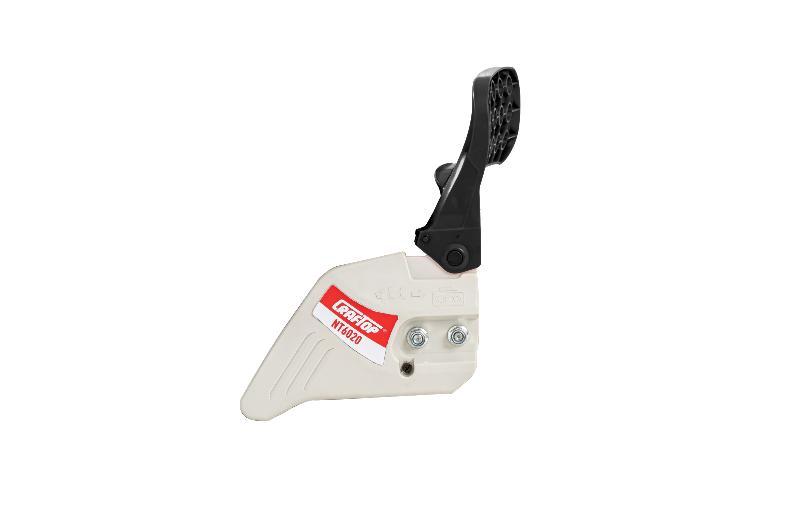

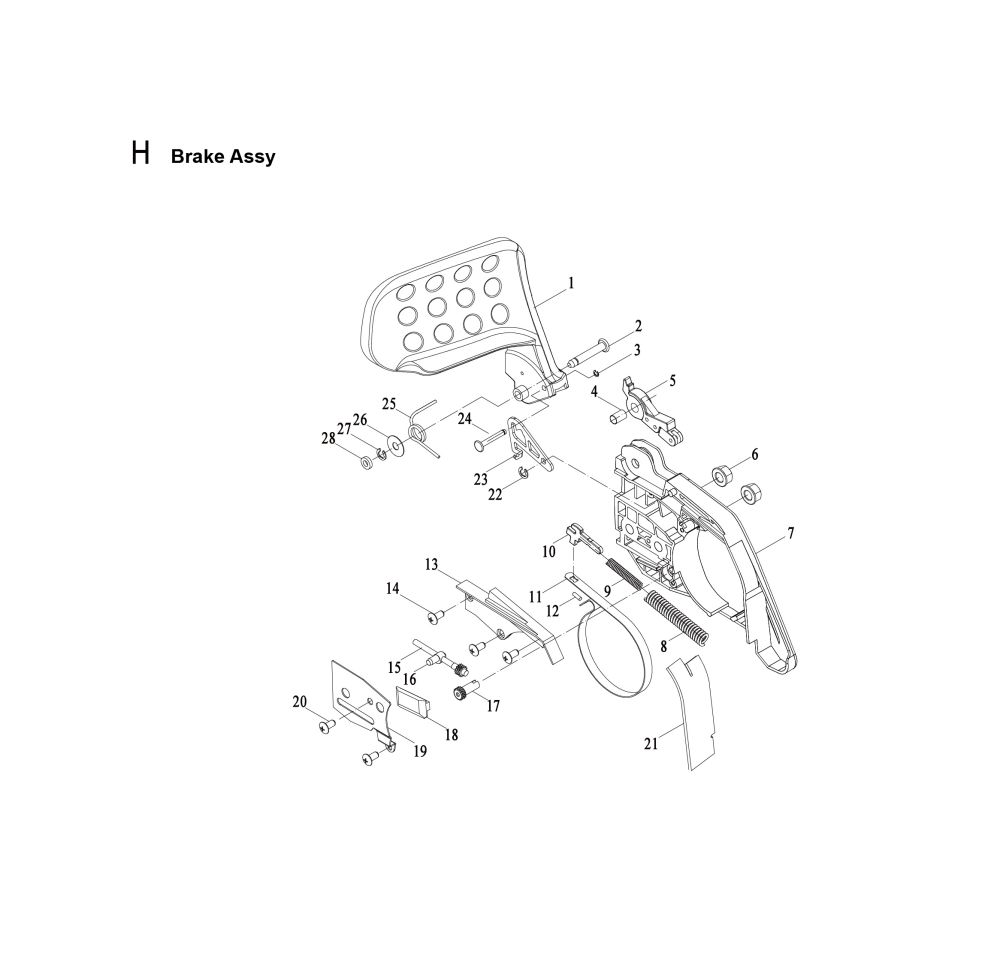

| C2-9 | Double Headed Pin | H. Brake Assembly | |

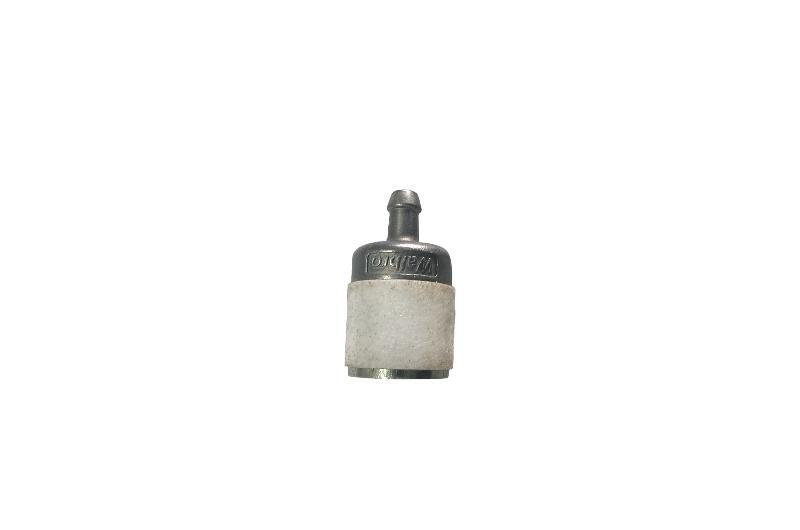

| C2-10 | Fuel Filter | Code | Part Name |
| C2-11 | Wrench Fixing Rubber Block (Front) | H | Brake Assembly |
| C2-12 | Rubber Block (Rear) | H-1 | Front Fender |
| C2-13 | Screw | H-2 | Front Fender Pin |
| C2-14 | Oil Injector | H-3 | Open Retaining Ring |
| C2-15 | Oil Injector Gasket | H-4 | Baffle Pin Sleeve |
| C2-16 | Oil Injector Return Pipe | H-5 | Main And Auxiliary Lever Assembly |
| C2-17 | Negative Pressure Oil Pipe | H-6 | Nut |

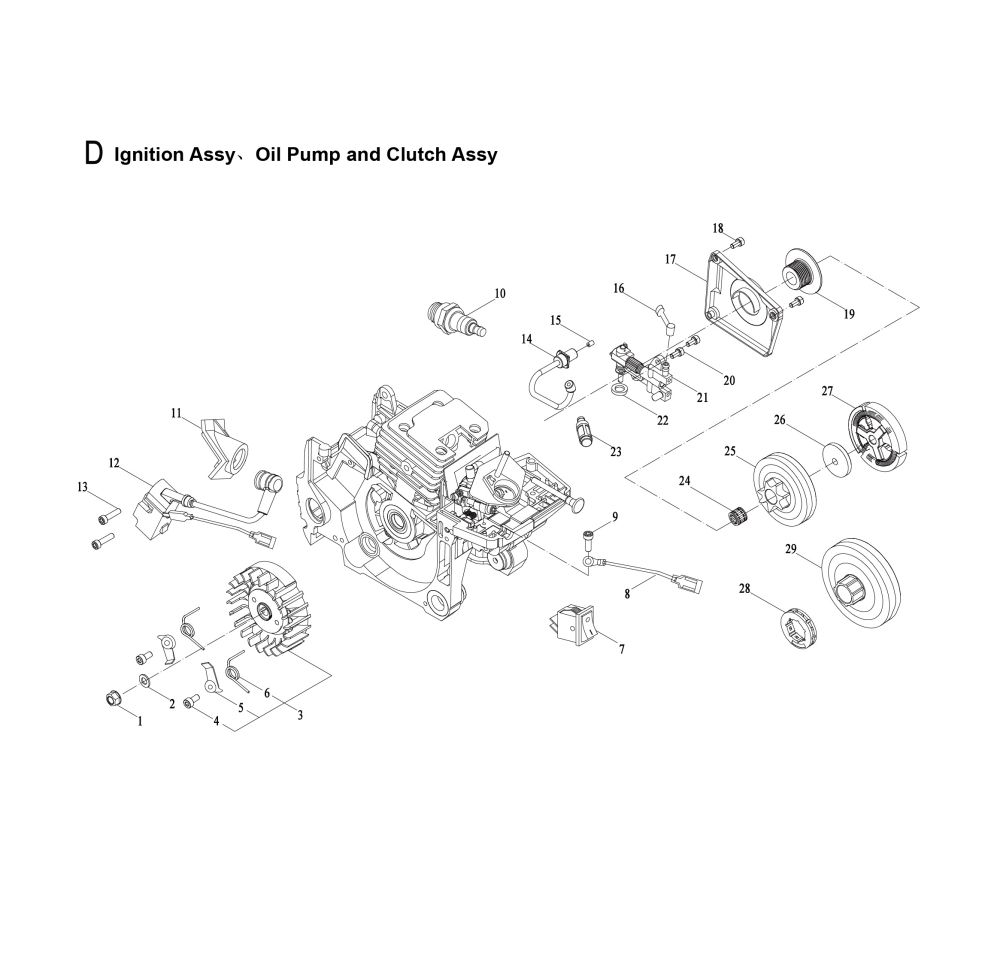

| D. Ignition system, pump oil and clutch components | H-7 | Right Cover | |
| Code | Part Name | H-8 | Brake Spring |
| D-1 | Nut | H-9 | Brake Auxiliary Spring |
| D-2 | Butterfly Washer | H-10 | Brake Lever |

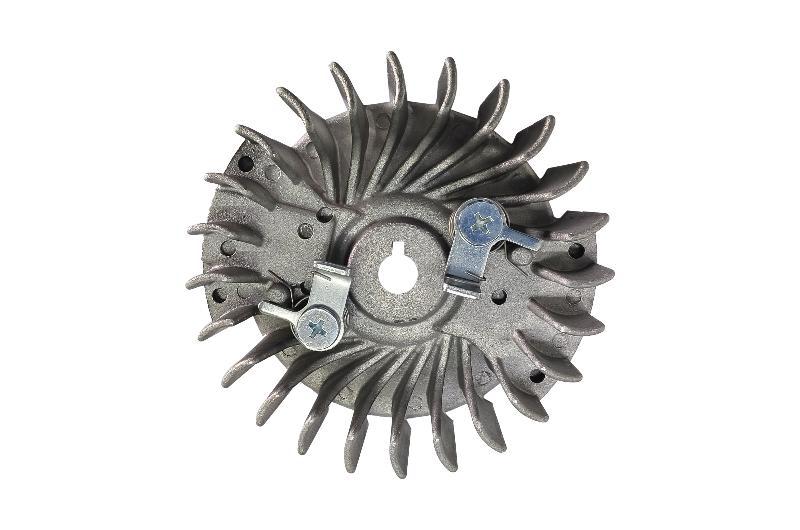

| D-3 | Flywheel | H-11 | Brake Band |
| D-4 | Flywheel Pawl Screw | H-12 | Cylindrical Pin |
| D-5 | Iron Claw | H-13 | Brake Cover |
| D-6 | Paw Torsion Spring | H-14 | Screw |
| D-7 | Kill Switch | H-15 | Tension Driven Gear |
| D-8 | On/off Wire | H-16 | Guide Plate Adjusting Nut |
| D-9 | Screw | H-17 | Tension Drive Gear |

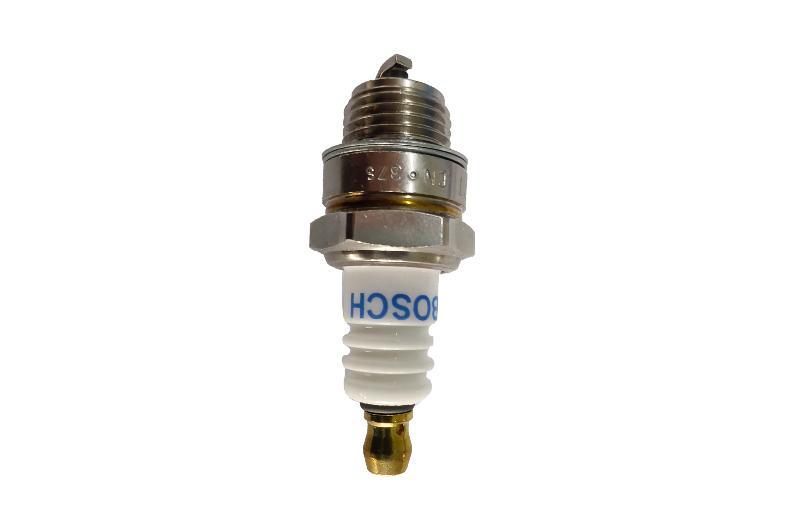

| D-10 | Spark Plug | H-18 | Chain Guide Block |
| D-11 | Ignition Wire Sheath | H-19 | Tensioner Cover |

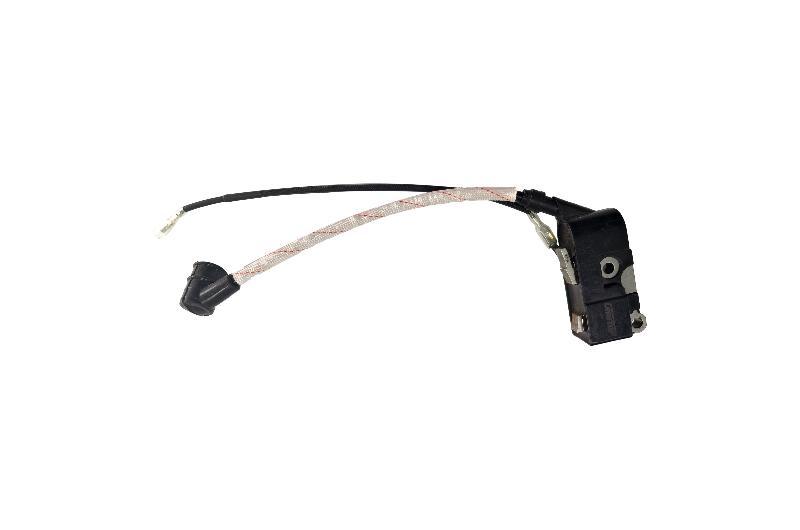

| D-12 | Ignition Assembly | H-20 | Screw |
| D-13 | Screw | H-21 | Chipboard |
| D-14 | Oil Inlet Pipe | H-22 | Open Retaining Ring |
| D-15 | Oil Pipe Expansion Sleeve | H-23 | Limit Plate |
| D-16 | Fuel Injector | H-24 | Limit Pin |
| D-17 | Oil Pump Cover | H-25 | Brake Torsion Spring |
| D-18 | Screw | H-26 | Flat Pad |
| D-19 | Worm | H-27 | Open Retaining Ring |
| D-20 | Screw | H-28 | Rubber Gasket |
| D-21 | Oil Pump | ||
| D-22 | Sponge | ||
| D-23 | Oil Filter Assembly | ||
| D-24 | Needle Roller Bearings | ||
| D-25 | Clutch Drum | ||
| D-26 | Clutch Gasket | ||

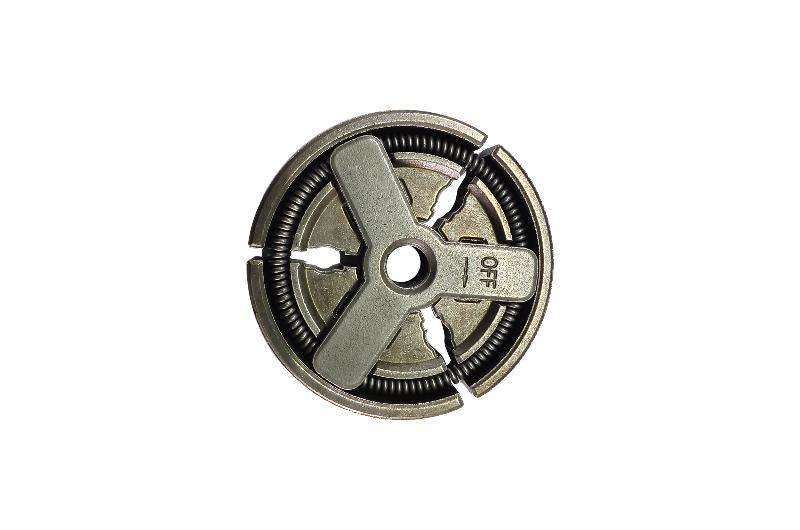

| D-27 | Clutch | ||

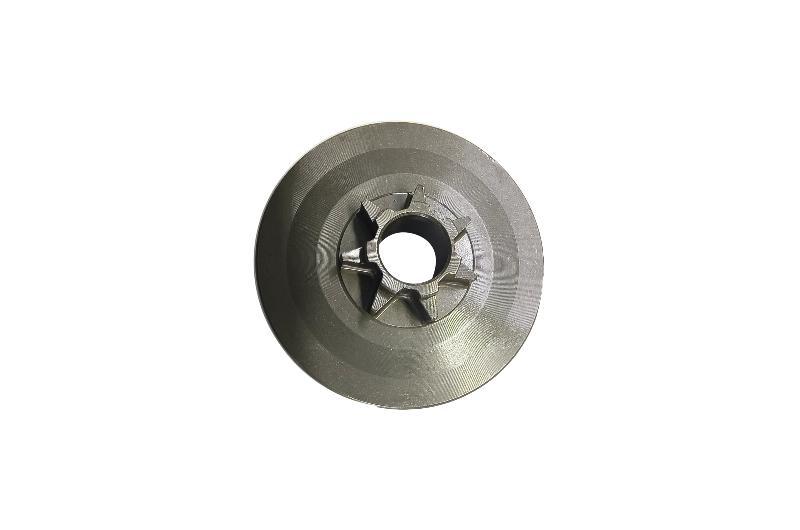

| D-28 | Sprocket | ||
| D-29 | Clutch Drum | ||
