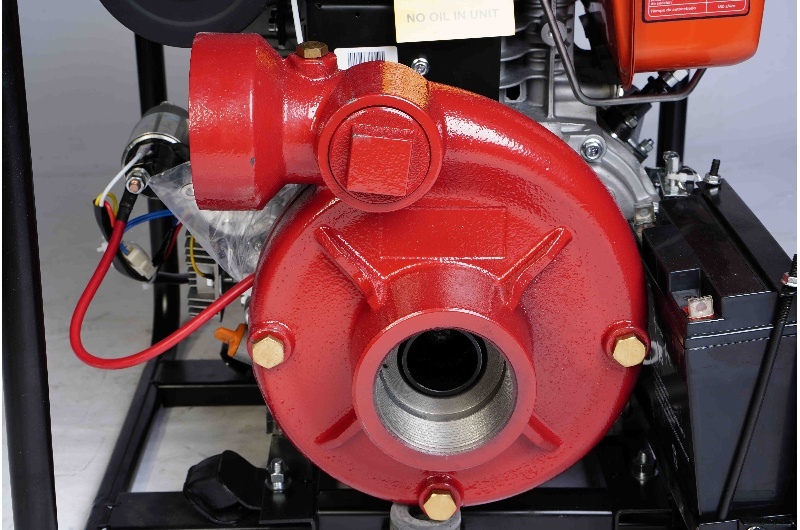

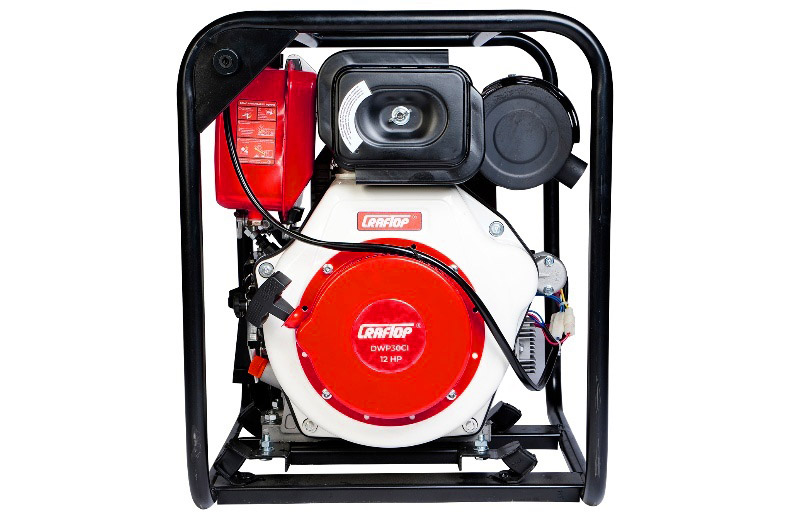

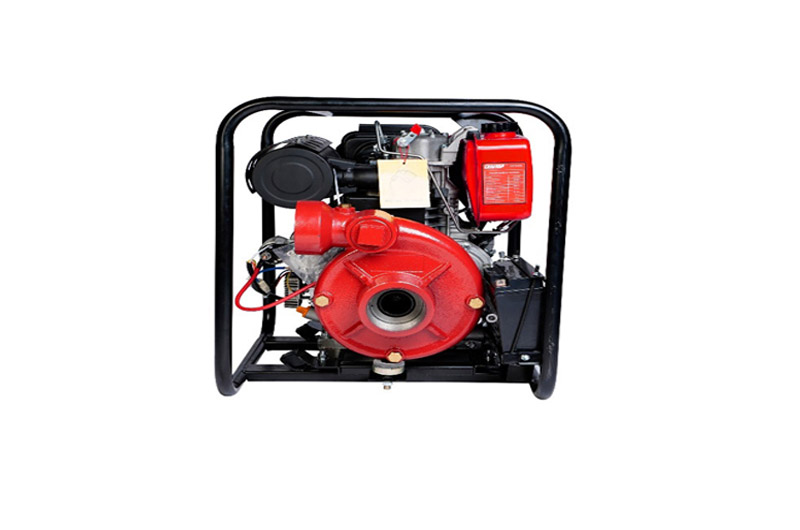

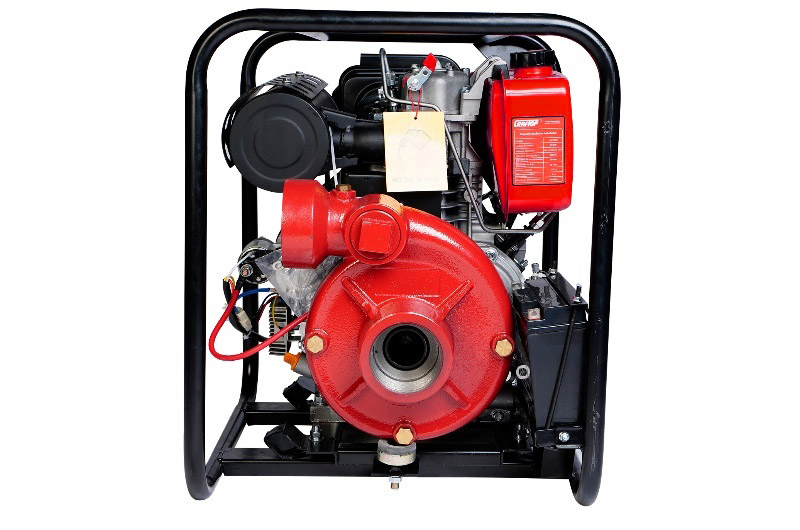

Powered by a 12 horsepower, 499cc diesel engine, this diesel water pump mobilizes water with the greatest velocity, reach of pumping head, and flow volume. It has been designed for professional and prolonged use; for this reason it comes with an iron casing and steel stand. This high pressure diesel pump is designed for professional irrigation and heavy duty mobile operations. It is widely used for agriculture, factories, mining, construction sites, social common areas, underground wiring, pipeline maintenance, gardening, and fishery.
| Package dimension | 570 x 495 x 720 mm (22.4 x 19.5 x 28.4 inch) |
| Gross weight | 87 kg (192 lbs) |
| Net weight | 85 kg (187 lbs) |
| Application type | Home use |

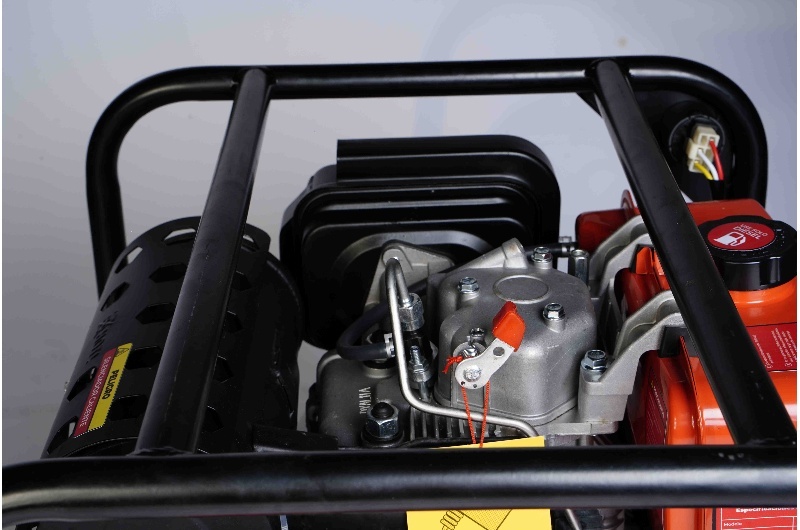

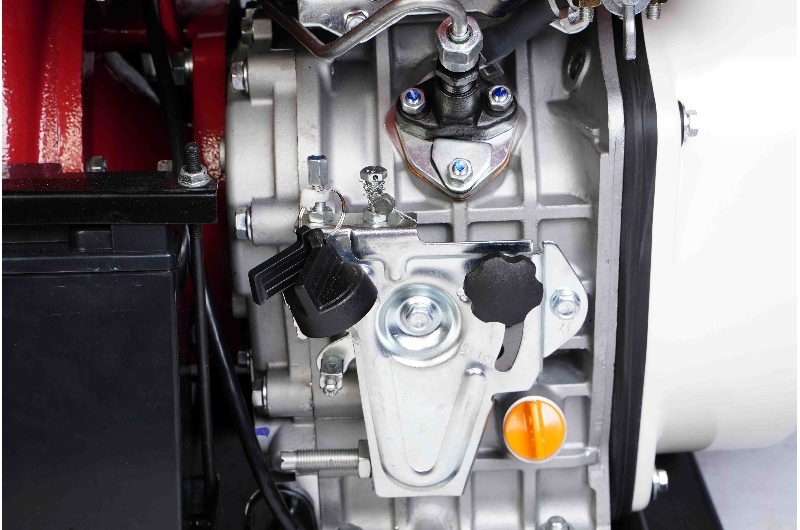

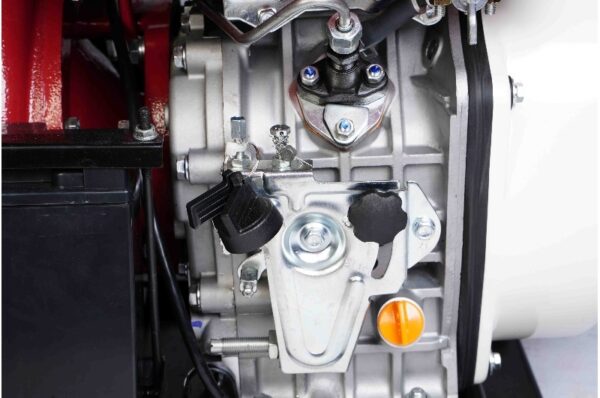

| Engine | 1-cylinder,4-stroke,air cooled diesel engine |
| Displacement | 499 cc |
| Engine power | 8.6 kW |
| Rated engine speed | 3600 rpm |

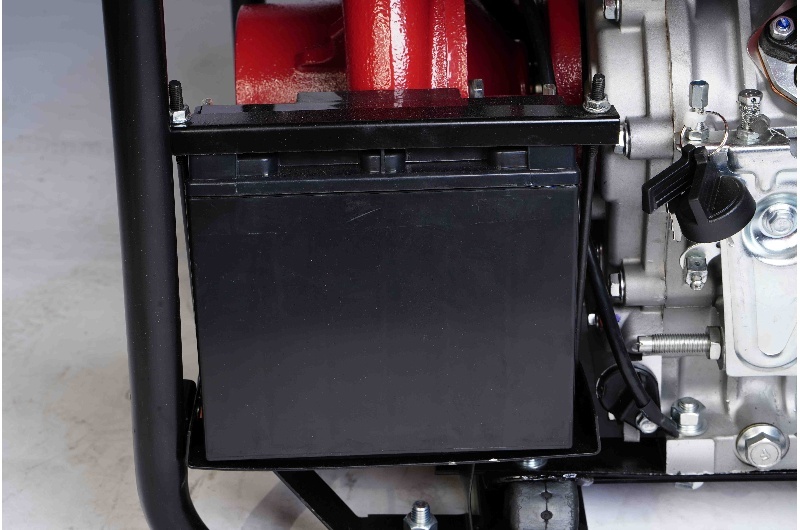

| Starter type | Recoil start / Electric start |
| Fuel | Summer: summer diesel (Grade No.2) Winter: winter diesel (Grade No.1+Grade No.2) |
| Fuel capacity | 5.5 L |
| Engine oil | SAE 10W-30 (above CD grade) |
| Oil capacity | 1.65 L |
| Suction port diameter | 75.6 mm (3”) |
| Discharge port diameter | 75.6 mm (3”) |
| Maximum flow | 40 m3/h |
| Total suction lift up to | 110 m (360 ft) |
