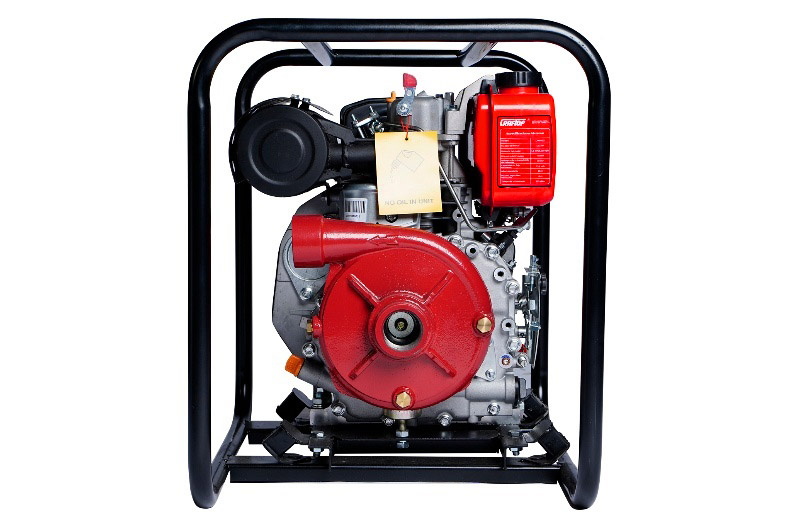

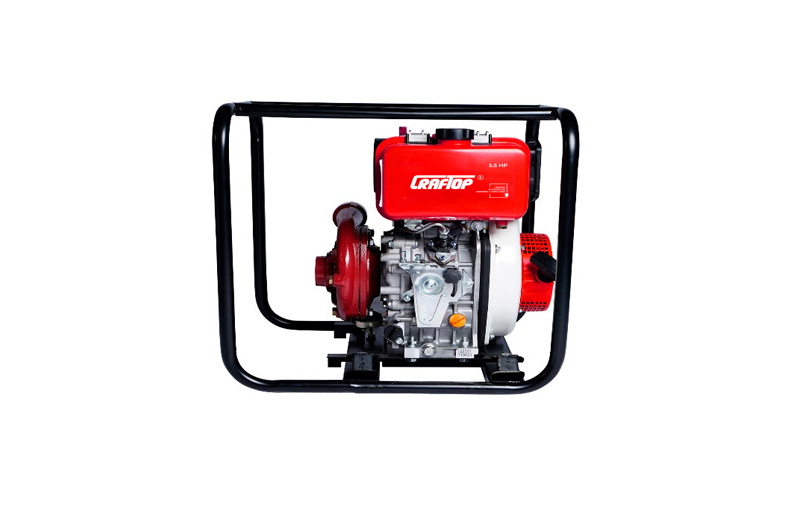

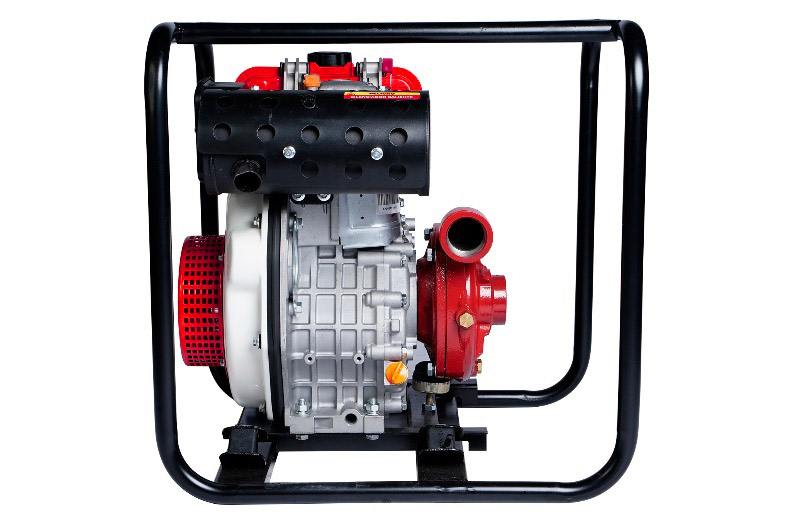

DWP15CI

High Pressure Diesel Pump DWP15CI, Made to Last and Resist

The powerful and efficient 296cc diesel engine provides extraordinary 8HP power performance and increases excellent load capacity.

The complete machine has compact structure, light weight, cast iron pump to maximize the rate of flow.

It features 1.5-inch suction and discharge port to provide a large water discharge.

All machines are accurately tested and adjusted to ensure that the engine works stably under suitable fuel consumption and temperature, and ensures that it will not stop at high temperature or be difficult to start under long-term high-speed operation.

The diesel pump is simple to use and easy to maintain.

PRODUCT DESCRIPTION

Powered by a 5.5 horsepower diesel engine with a 296cc displacement, this diesel water pump mobilizes water quickly, with a high reach of pumping head and a large volume of flow.

It has been designed for professional and extended use; for this reason, it comes with an iron casing and steel support.

This high pressure diesel pump is designed for irrigation and mobile operations. It is widely used for agriculture, factories, mining, construction sites, social common areas, underground wiring, pipeline maintenance, gardening, and fishery.

SPECIFICATIONS

Package dimension	570 x 460 x 680 mm (22.4 x 18.1 x 26.8 inch)
Gross weight	73 kg (161 lbs)
Net weight	70 kg (154 lbs)
Application type	Home use
Engine	1-cylinder,4-stroke,air cooled diesel engine
Displacement	296 cc
Engine power	4 kW
Rated engine speed	3600 rpm
Starter type	Recoil start / Electric start
Fuel	Summer: summer diesel (Grade No.2) Winter: winter diesel (Grade No.1+Grade No.2)
Fuel capacity	3.5 L
Engine oil	SAE 10W-30 (above CD grade)
Oil capacity	1.1 L
Suction port diameter	38.1 mm (1.5”)
Discharge port diameter	38.1 mm (1.5”)
Maximum flow	23.5 m³/h
Total suction lift up to	73 m (240 ft)

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

EWP-80

Electric Water Pump EWP-80: Perfect Functionality for Domestic and Agricultural Tasks

EWP-60

Electric Water Pump EWP-60. The Ideal Solution for Water Pressure at Home

DWP30CI

High Pressure Diesel Pump DWP30CI, Superior Power and Resistance

DWP20CI

High Pressure Diesel Pump DWP20CI, for Greater Power and Resistance

DWP30

DWP30 Diesel Water Pump, Extremely Powerful and Durable

GWP20H2

Gasoline Water Pump GWP20H2, Ideal for Pressure at Maximum Lift

GWP20

Gasoline Water Pump GWP20, Pump and Suction, Made Fast and Easy

GWP4310-10

Gasoline Water Pump GWP4310-10 Best Gas Water Pump

FAQ

Q What should you not do with a water pump?

A Never use a pump for fluids that it was not designed or intended for. The two most hazardous situations are using a water pump to carry caustic or combustible fluids, such as acid or gasoline, and using a pump to transfer fluids that are too viscous for the pump to safely transport.

Q Can I pump bleach with my water pump?

A No, bleach can cause permanent damage to the pump and hoses.

Q Can I use my water pump to pump hot water?

A No, the water must not be hotter than 100°F or 40°C. Hot water can permanently harm the pump.
