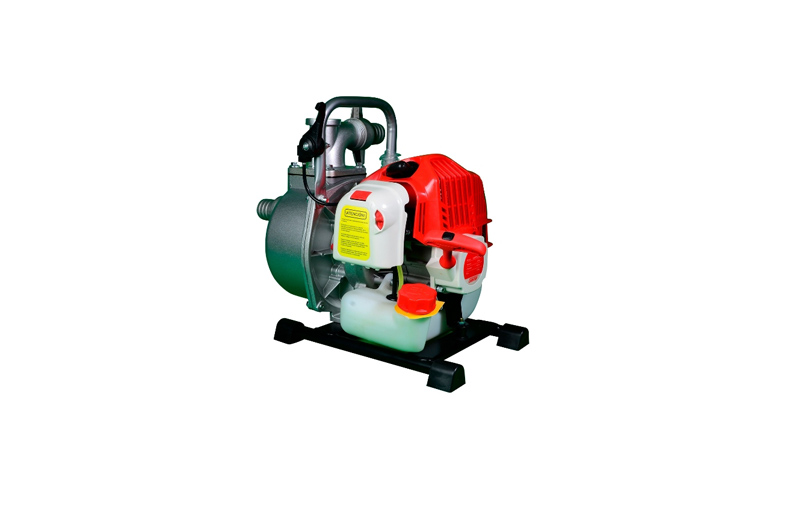

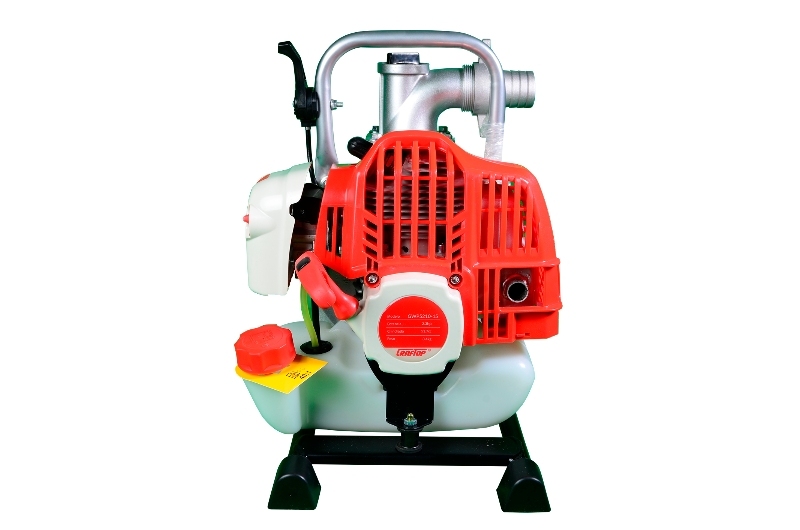

GWP5210-15

Gasoline Water Pump GWP5210-15, Its High Flow Capacity, The Great Difference

Centrifugal water pump, large water output, simple and reliable structure.
The transmission is sealed with porcelain tile, which helps prevent water leakage or rust accumulation, and has a service long life.
The ignition system of this machine is set to easy start, which has fast starting speed, easy and labor-saving.
The complete machine has compact structure, light weight, easy for transportation. It features 1.5-inch suction and discharge port to provide a large water discharge.
All machines are accurately tested and adjusted to ensure that the engine works stably under suitable fuel consumption and temperature, and ensures that it will not stop at high temperature or be difficult to start under long-term high-speed operation.

PRODUCT DESCRIPTION

This gasoline 2-stroke engine water pump offers the ability to handle most pumping jobs.

Its design is ergonomic and it is very easy to start. It has a carrying handle for greater comfort for the user.

With a 1.5” input/output it offers a pumping system useful for emptying a swimming pool in a short time, emptying a flooded basement, pumping a flooded ditch, filling or emptying a reservoir or a water storage tank, irrigating a field, hosing down a construction site and many more.

SPECIFICATIONS

Package dimension 425 x 270 x 375 mm (16.7 x 10.6 x 14.8 inch)
Gross weight 10 kg (22 lbs)
Net weight 8.4 kg (18.5 lbs)
Application type Home use
Displacement 51.7 cc
Engine power 1.6 kW / 7800 rpm
Starter type Recoil start
Fuel Mixed gasoline and two-stroke air-cooled engine oil with a ratio 25:1
Fuel capacity 1.2 L
Suction port diameter 40 mm  (1.5”)
Discharge port diameter 40 mm  (1.5”)
Maximum discharge 15 m3/h
Total water head (Max.) 20 m (65 ft)

INCLUDES

  • (1x) Power unit
  • (1x) Tool bag
  • (1x) Warranty card
  • (1x) Owner’s manual

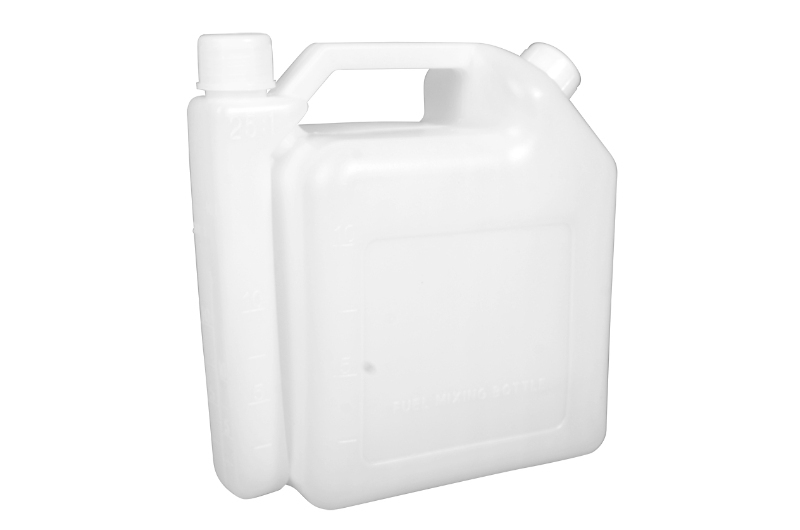

  • (1x) Two-hole fuel mixing bottle
  • (2x) Hose adapter
  • (2x) Hose fitting

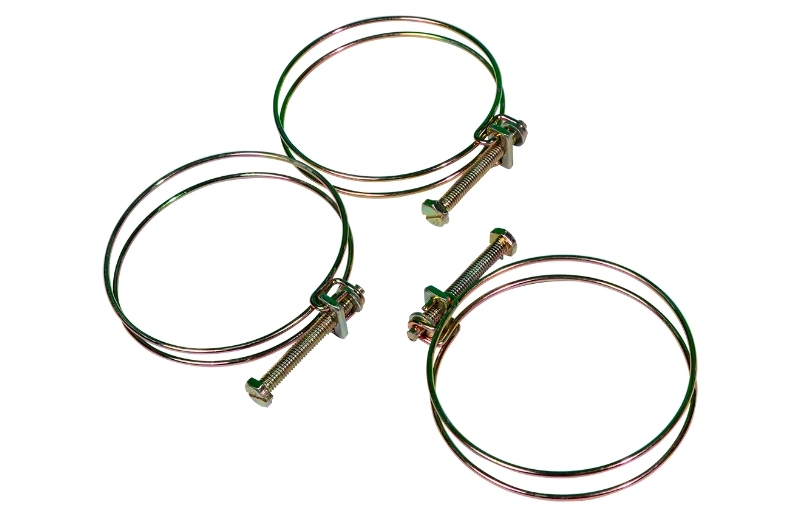

  • (3x) Hose clamp

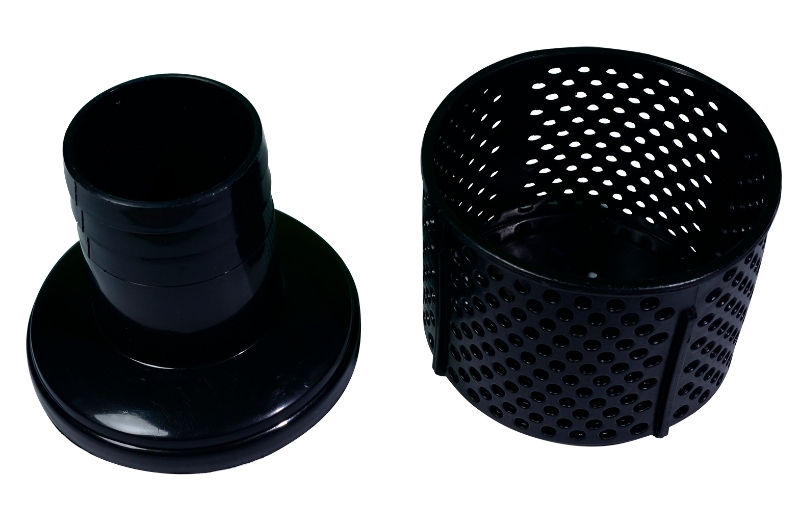

  • (1x) Water filter
  • (1x) Torx key (4mm) lengthened

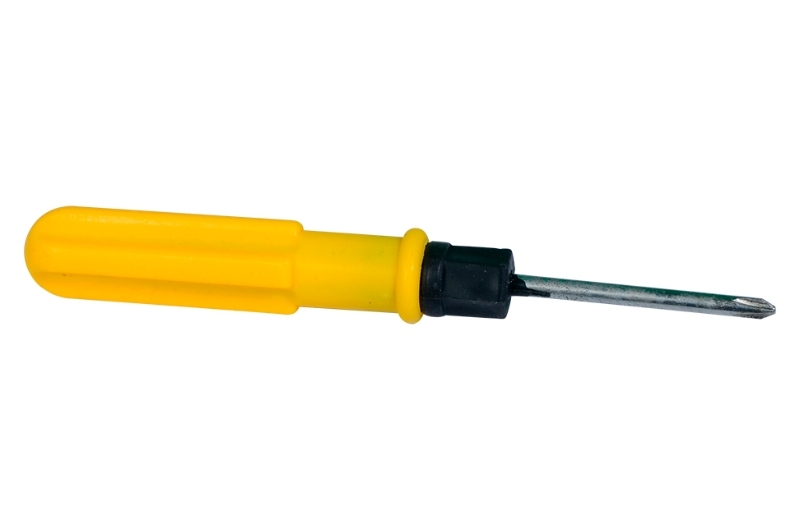

  • (1x) Dual-purpose screwdriver
  • (1x) Open-end wrench 8-10

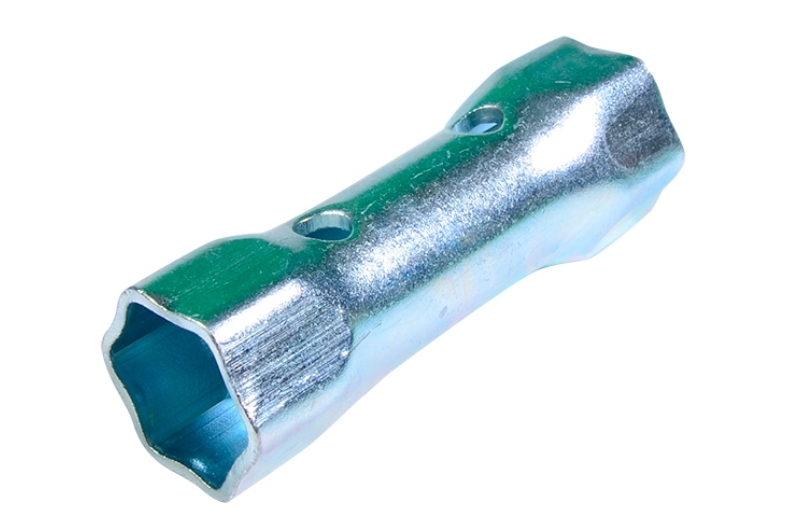

  • (1x) Socket wrench 17×19

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

RELATED PRODUCTS

FAQ

Q       Do the gasoline water pumps need to be maintained?
A       All water pumps need regular maintenance, such as oil changes, to maintain peak performance over many years of dependable use. For routine maintenance procedures and schedules, consult the owner’s manual.
Q       What are the most common types of gasoline water pump?
A       Water pumps come in two basic categories. Positive displacement and centrifugal pumps
Q       Which Craftop gasoline water pump is best for your needs?
A       The easiest strategy to choose the best water pump for you is to be aware of your water usage needs. Look for characteristics like: Portable electronic ignition, flow, pressure, and suction While you should make sure you can transfer the necessary amount of water at the required rate, you shouldn’t get anything that will exceed your capacity requirements. If you’re unsure, contact our experts, and they can help you select a pump that will meet your water needs. To choose which model is right for you, consider these questions: What is the demand for water? (suction, pressure, and flow)? What is the height that you will need to move the water to? Does the pump have to be movable or may it stay in one place? Also, it all depends on how much water you need to pump, how rapidly you need to pump it, and how unclean the water is. Many factors influence pump performance, including atmospheric pressure (how high the pump is above sea level), hose resistance, and so forth. The flow rate of a pump is measured and expressed in gallons per minute or gallons per hour. The higher the flow, the better the performance. If the water is sandy, muddy (abrasive), or contains minute particles, you should get a semi-trash or trash pump. If the water you plan to pump is always clean, such as in a swimming pool, hot tub, or water garden, a clean water pump will suffice.
Q       How to size and choose a Craftop gas water pump?
A       Gas water pumps can be selected based on the desired application and how quickly the water needs to be pumped. GPM/PSI ratings, inlet/outlet size for water and hoses, how high you’ll need to pump the water, referred to as Total Head Lift (measured in vertical feet), and how far you’ll need to pump the water horizontally are the most significant elements in properly sizing a gas water pump. Finally, never use a gas water pump indoors since carbon monoxide will build up from the exhaust fumes, which can be fatal.
Q       Why use a Craftop gasoline water pump
A       Power: Craftop Gas Water Pumps are more powerful and move far more water than other types of pumps. Higher gallons per minute (GPM) and PSI ratings on gas pumps make all the difference in getting the work done in two hours or twenty minutes for heavy-duty applications like flood clearance or emptying a building site. Versatility and Portability: You can take a gas-powered water pump anywhere you need it on the job site, and not rely on having electricity to power the pump. Craftop Gas Water Pumps are a favorite for the agricultural/farming industry because the pumps can be used to power irrigation systems or can be mounted onto tractors and other farm equipment Trash pumps that run on gasoline are powerful enough to be used for pumping solids, debris, and wastewater that could come from flooding or emptying quarries that have small rocks and other materials present in the water, and are a favorite for construction companies or city municipalities.
Q       How does a gasoline water pump work?
A       When the engine starts, the centrifugal impeller rotates, pushing water out of the pump through the discharge port. The displacement of this water then creates a vacuum, drawing water from the tank into the water pump’s inlet side. This procedure is then repeated to keep the water flowing
