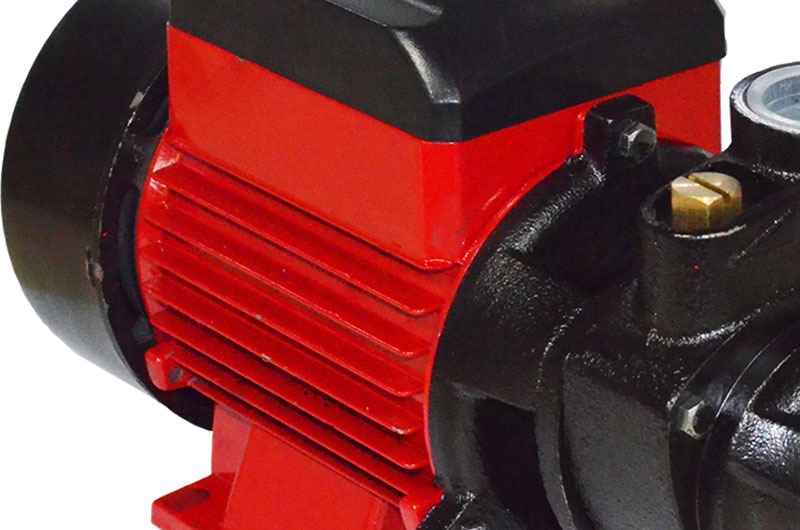

1. Powerful, efficient and full-power 100% pure copper wire induction motor, 100% passed the qualification test;

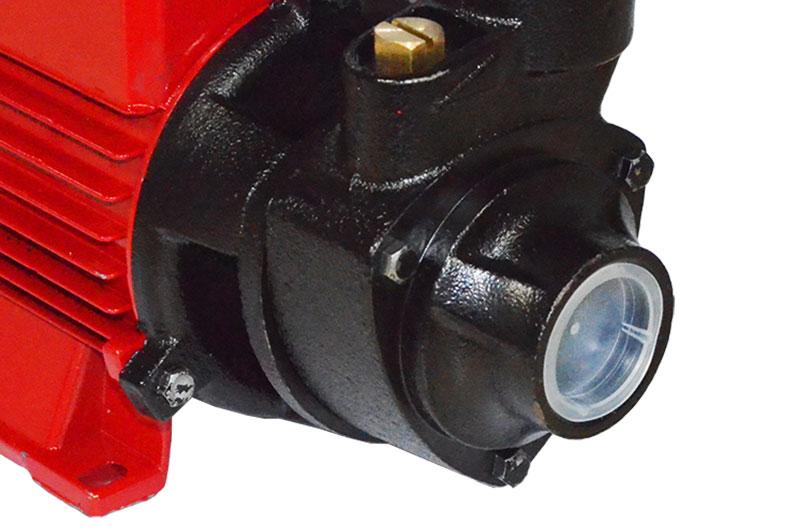

2. Full cast iron pump body, 100% high-precision copper impeller, professional fluid channel design;
3. The maximum total lift is 68 meters, allowing clean water up to 40°C to pass through, and the maximum flow rate is 60L/min.

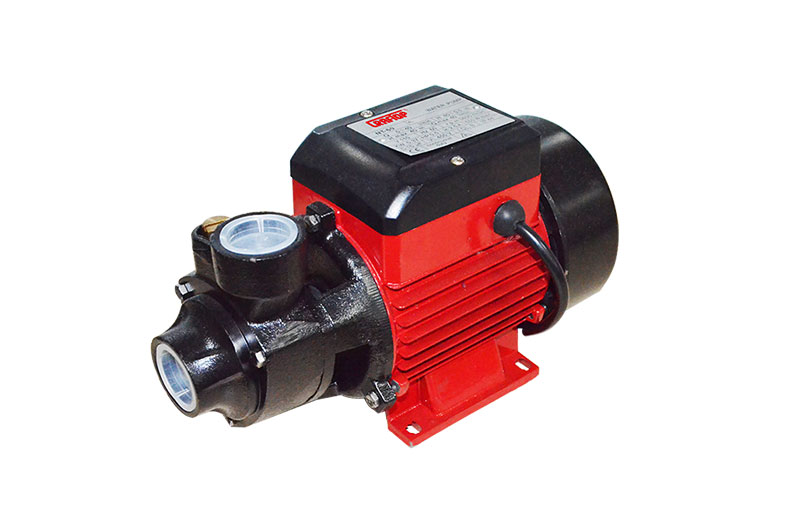

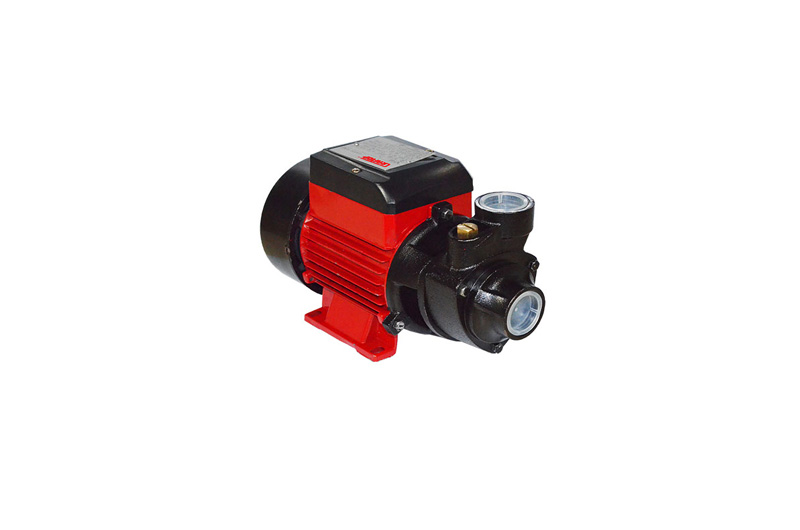

| Product Name | Electric Water Pump |
| Model Name | EWP-80 |
| Used model name | NT-80 |
| Picture |  |
| EAN code | 4707000000103 |
| Use: Full-time/Partial/Ocassional | Full time |
| Normal power (W) | 550W |
| Input power (W) | 750W |
| Motor (single-phase/three phase) | Single phase |
| Motor type (brush/induction) | Induction |
| Winding material (aluminum/copper) | 100% Copper |
| Max height (m) | 60m |
| Max flow (m³/h) | 3.6m³/h |
| Total suction lift up to (m) | 68m |
| Max liquid temperature (°C) | 40°C |
| Insulation class | Class II |
| Protection IP | IP 44 |
| Pump body (aluminum/plastic/steel/castiron) | Cast iron |
| Motor support (aluminum/plastic/steel/castiron) | Aluminum |
| Impeler material (plastic/brass) | Brass |
| Input connector size (1″, 1/4″…) | 1″ |
| Ouput connector size | 1″ |
| Logistic | |
| Box size (mm) | 330×180×197mm |
| Box weight (kg) | 7.5kg |
| Units container 20/40/40HQ (pcs) | 4614/9741/11621pcs |
