EWP-60

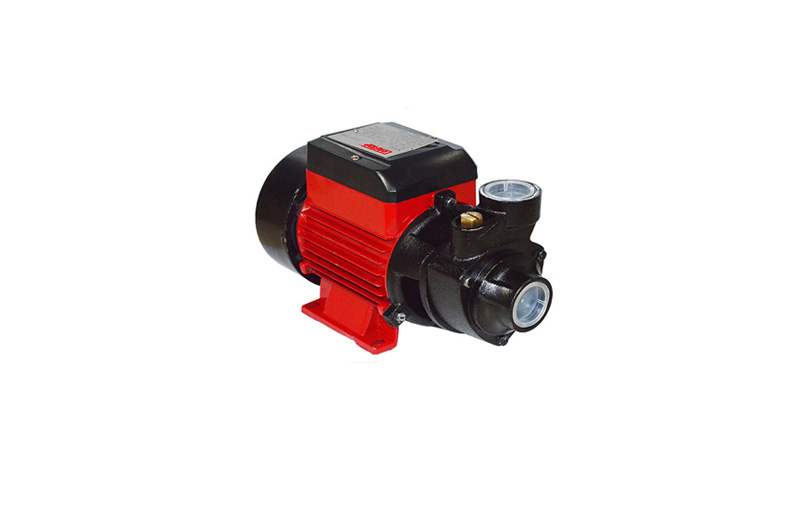

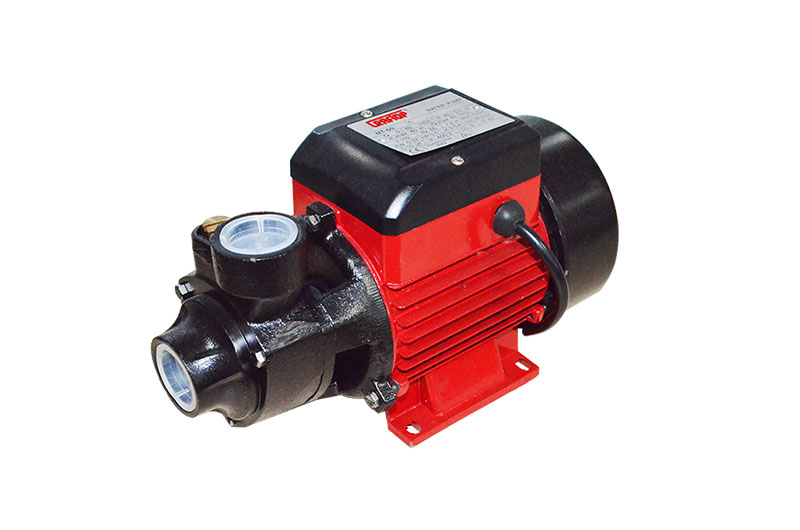

Electric Water Pump EWP-60. The Ideal Solution for Water Pressure at Home

Powerful and efficient 100% pure copper wire induction motor
Full cast iron pump body for durability
High-precision copper impeller for optimal performance
Professional fluid channel design for smooth operation
Maximum total lift of 48 meters
Can handle clean water up to 40°C
Maximum flow rate of 40L/min
Reliable and efficient, delivering exceptional performance

PRODUCT DESCRIPTION

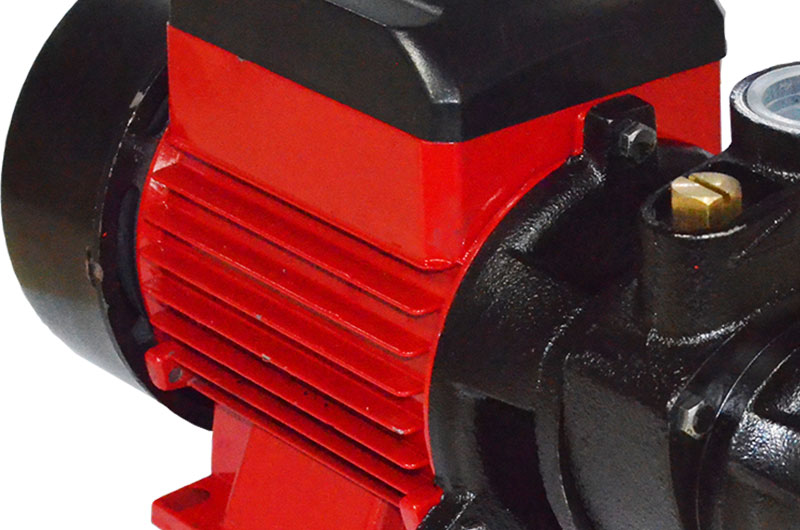

1. Powerful, efficient and full-power 100% pure copper wire induction motor, 100% passed the qualification test;

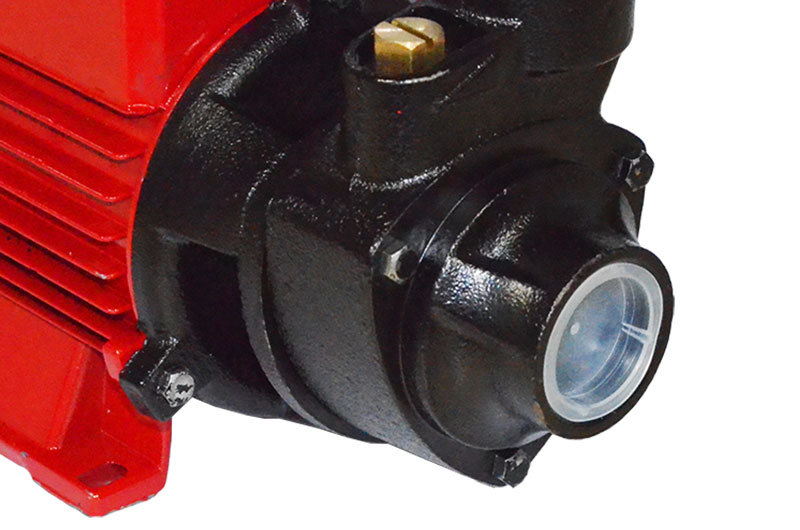

2. Full cast iron pump body, 100% high-precision copper impeller, professional fluid channel design;

3. The maximum total lift is 48 meters, allowing clean water up to 40°C to pass through, and the maximum flow rate is 40L/min.

SPECIFICATIONS

Product Name Electric Water Pump
Model Name EWP-60
Used model name NT-60
Picture EWP60
EAN code 4706000000106
Use: Full-time/Partial/Ocassional Full time
Normal power (W) 275W
Input power (W) 375W
Motor (single-phase/three phase) Single phase
Motor type (brush/induction) Induction
Winding material (aluminum/copper) 100% Copper
Max height (m) 40m
Max flow (m³/h) 2.4m³/h
Total suction lift up to (m) 48m
Max liquid temperature (°C) 40°C
Insulation class Class II
Protection IP IP 44
Pump body (aluminum/plastic/steel/castiron) Cast iron
Motor support (aluminum/plastic/steel/castiron) Aluminum
Impeler material (plastic/brass) Brass
Input connector size (1″, 1/4″…) 1″
Ouput connector size 1″
Logistic
Box size (mm) 279×135×175mm
Box weight (kg) 5.3kg
Units container 20/40/40HQ (pcs) 8192/17296/20634pcs

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

RELATED PRODUCTS

FAQ

Q       What should you not do with a water pump?
A       Never use a pump for fluids that it was not designed or intended for. The two most hazardous situations are using a water pump to carry caustic or combustible fluids, such as acid or gasoline, and using a pump to transfer fluids that are too viscous for the pump to safely transport.
Q       Can I pump bleach with my water pump?
A       No, bleach can cause permanent damage to the pump and hoses.
Q       Can I use my water pump to pump hot water?
A       No, the water must not be hotter than 100°F or 40°C. Hot water can permanently harm the pump.
