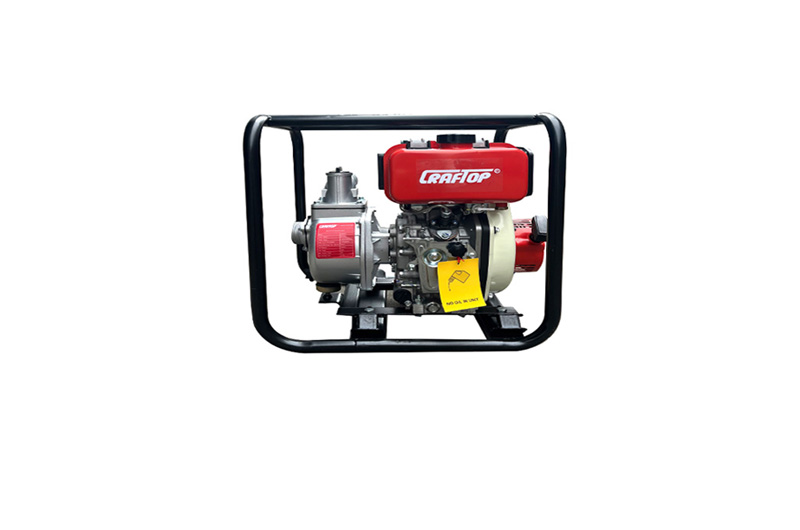

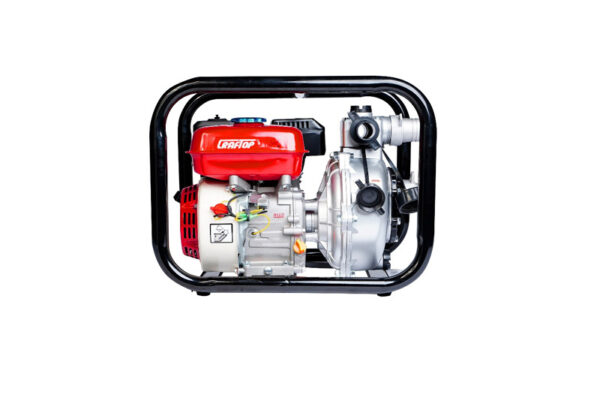

DWP20

DWP20 Diesel Water Pump, Higher Torque, Higher Performance, Higher Efficiency

Oil alarm system is equipped on this machine: when the oil level is too low, the gasoline engine will automatically stop running to avoid specific damage to the engine.

Aluminum alloy and durable cast iron body can withstand high pressure, more durable, simple and reliable structure, and maximized flow.

Using wear-resistant graphite, ceramic magnetic mechanical seal to provide excellent sealing performance.

The high-pressure pump adopts wear-resistant cast iron vortex shell and aluminum alloy impeller to maximize the rate of flow.

PRODUCT DESCRIPTION

Powered by a 3.8 hp diesel engine, this pump provides more torque and low fuel consumption for high efficiency performance. It is ideal for the transfer of water and all types of pumping work. The 2″ pump inlet and outlet is constructed of a cast iron impeller and casing made of long-lasting aluminum for greater strength and durability. Its perimeter chassis protects it from blows.

SPECIFICATIONS

Package dimension	490 x 410 x 520 mm (19.3 x 16.1 x 20.5 inch)
Gross weight	45 kg (99 lbs)
Net weight	41 kg (90 lbs)
Application type	Home use
Engine	1-cylinder,4-stroke,air cooled diesel engine
Displacement	211 cc
Engine power	2.8 kW
Rated engine speed	3600 rpm
Starter type	Recoil start / Electric start
Fuel	No.1(winter) / No.2(summer) diesel
Fuel capacity	2.5 L
Engine oil	SAE 10W-30 (above CD grade)
Oil capacity	750 ml
Suction port diameter	50 mm (2”)
Discharge port diameter	50 mm (2”)
Maximum flow	22 m³/h
Total suction lift up to	22 m (72 ft)

INCLUDES

(1x) gasoline water pump

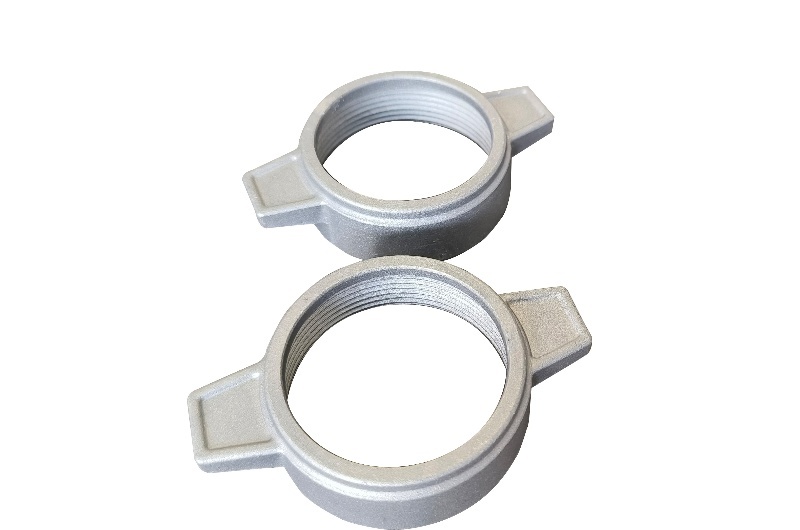

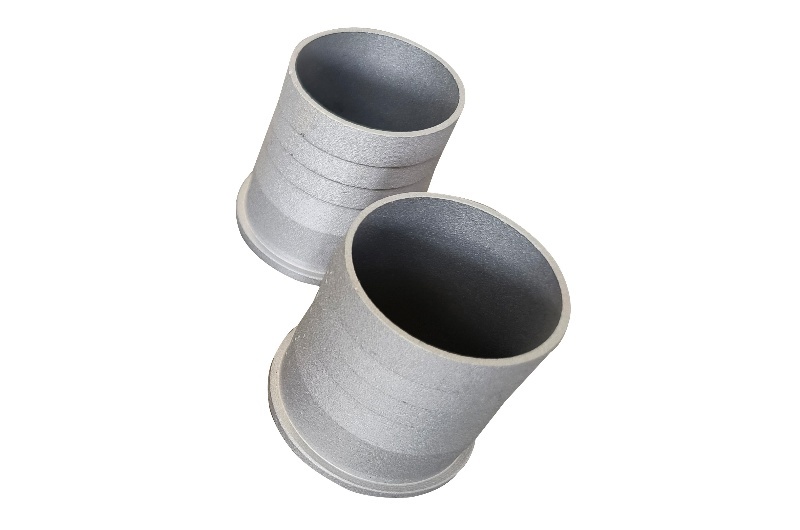

(2x) Hose fitting
(2x) Hose adapter

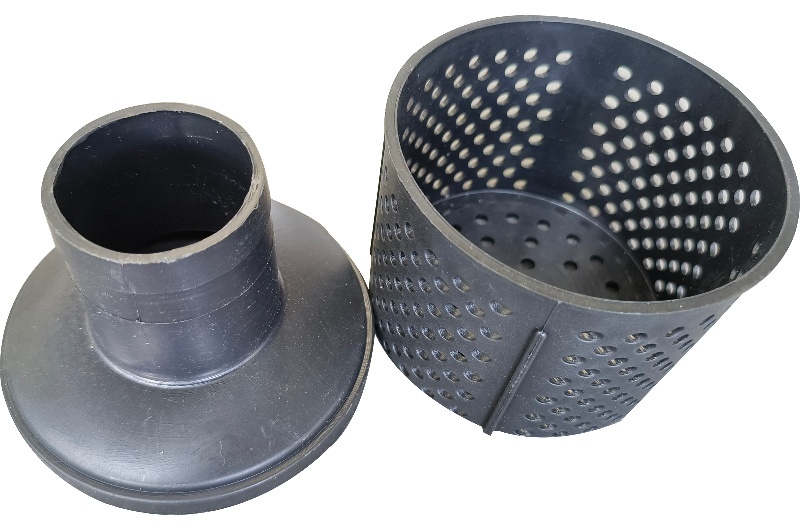

(1x) Water filter

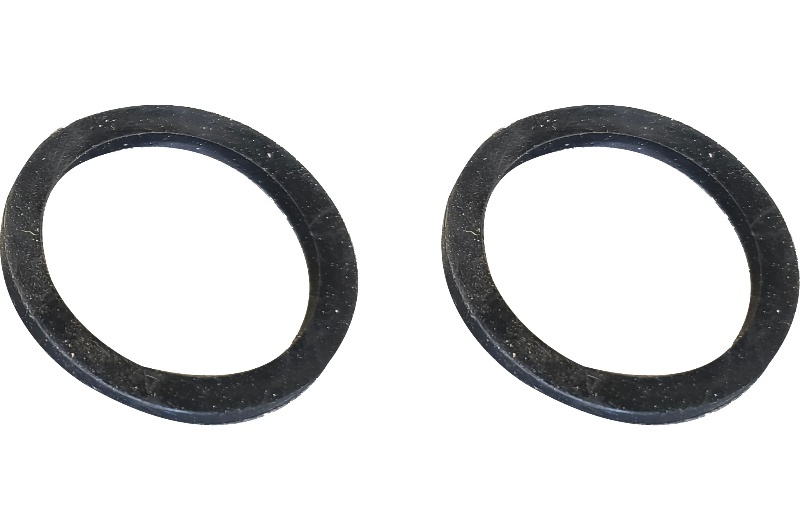

(2x) Sealing gasket

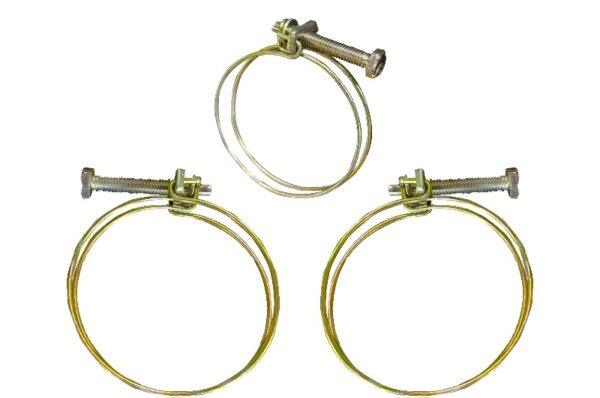

(3x) Hose clamp

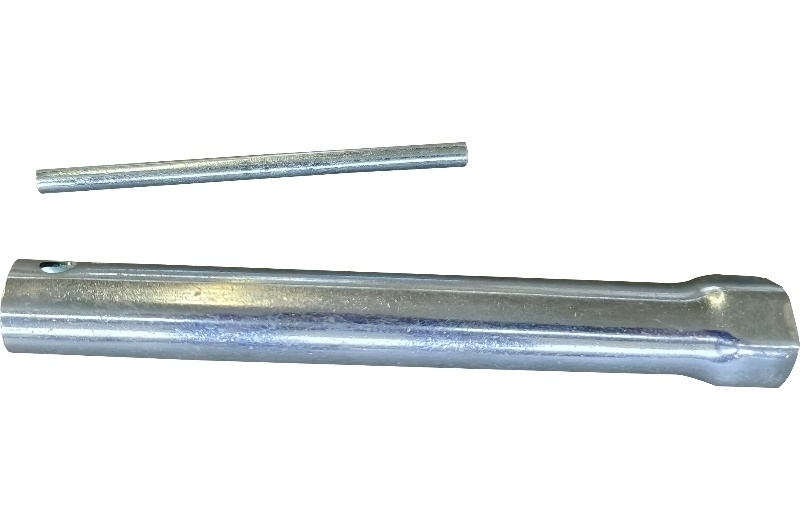

(1x) Spark plug socket wrench
(1x) Owner’s manual

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

EWP-80

Electric Water Pump EWP-80: Perfect Functionality for Domestic and Agricultural Tasks

EWP-60

Electric Water Pump EWP-60. The Ideal Solution for Water Pressure at Home

DWP30CI

High Pressure Diesel Pump DWP30CI, Superior Power and Resistance

DWP20CI

High Pressure Diesel Pump DWP20CI, for Greater Power and Resistance

DWP30

DWP30 Diesel Water Pump, Extremely Powerful and Durable

GWP20H2

Gasoline Water Pump GWP20H2, Ideal for Pressure at Maximum Lift

GWP4310-10

Gasoline Water Pump GWP4310-10 Best Gas Water Pump

GWP5210-15

Gasoline Water Pump GWP5210-15, Its High Flow Capacity, The Great Difference

FAQ

Q What should you not do with a water pump?

A Never use a pump for fluids that it was not designed or intended for. The two most hazardous situations are using a water pump to carry caustic or combustible fluids, such as acid or gasoline, and using a pump to transfer fluids that are too viscous for the pump to safely transport.

Q Can I pump bleach with my water pump?

A No, bleach can cause permanent damage to the pump and hoses.

Q Can I use my water pump to pump hot water?

A No, the water must not be hotter than 100°F or 40°C. Hot water can permanently harm the pump.
