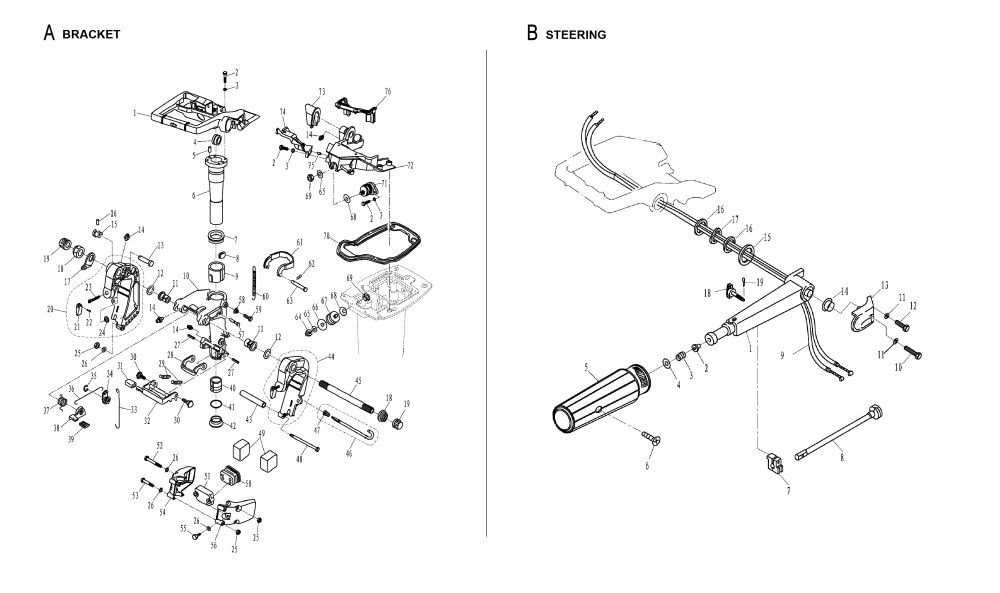

| CODE | PART NAME | CODE | PART NAME |
| A1 | Bracket, Helm | A40 | Bush, Rotary Bracket |
| A2 | Bolt Gb/T9074.14-M6X20 | A41 | O-Ring |
| A3 | Washer Gb/T97.1-6 | A42 | Washer, Rotary Bracket |
| A4 | Rubber Ring, Bracket | A43 | Tube, Bolt |
| A5 | Pin 8X12 | A44 | Left Clamp Bracket Assy |
| A6 | Shaft, Helm Bracket | A45 | Double-Edged Tube |
| A7 | Washer, Rotary Bracket | A46 | Limitative Rod, Tilt Lock |
| A8 | Plate, Lock | A47 | Conical Spring |
| A9 | Bush, Rotary Bracket | A48 | Bolt Gb/T5782-M8X155 |
| A10 | Bracket, Rotary | A49 | Mount Damper |
| A11 | Bush, Rotary Bracket | A50 | Damper, Front |
| A12 | Washer | A51 | Cover, Front Damper |
| A13 | Limited Shaft, Tilt | A52 | Bolt Gb/T5782-M8X105 |
| A14 | Nipple, Grease Jb/T9740.1-M6 | A53 | Bolt Gb/T5782-M8X70 |
| A15 | Limiting Handle, Tilt | A54 | Right Absorber Cover |
| A16 | Pin Gb/T879.2-3X16 | A55 | Bolt Gb/T9074.14-M8X25 |
| A17 | Plate, Two Hole | A56 | Left Absorber Cover |
| A18 | Nut, Self-Locking | A57 | Shaft, Pull Rod |
| A19 | Plastic Nut | A58 | Seal, Lock Bolt |
| A20 | Right Clamp Bracket Assy | A59 | Bolt Gb/T5787-M6X25 |
| A21 | Handle, Clamp | A60 | Spring, Outer Frame |
| A22 | Rivet, Clamp Handle | A61 | Frame Assy, Locked Handle |
| A23 | Screw, Clamp | A62 | Cotter Pin Gb/T91-1.2X12 |
| A24 | Clamp Plate | A63 | Shaft, Locked Handle |
| A25 | Nut Gb/T6170-M8 | A64 | Cover Nut Gb/T923-M10X1.25 |
| A26 | Wahser Gb/T97.1-8 | A65 | Washer Gb/T97.1-10 |
| A27 | Pin Gb/T879.1-4X38 | A66 | Gasket A, Absorber |
| A28 | Inner Frame, Locker Handle | A67 | Absorber Assy |
| A29 | Spring, Support | A68 | Gasket B, Absorber |
| A30 | Screw, Flat Hexagon | A69 | Nut Gb/T6170-M10X1.25 |
| A31 | Jacket, Handle | A70 | Seal, Upper Casing |
| A32 | Support Bracket Assy | A71 | Absorber, Shift Rod Bracket |
| A33 | Pull Rod, Inner Frame | A72 | Bracket, Shift Rod |
| A34 | Bracket, Pull Rod | A73 | Rubber Ring, Shift Handle |
| A35 | Circlip Gb/T896-5 | A74 | Bracket, Bottom Cowling |
| A36 | Spring, Pull Rod | A75 | Pin 6X12 |
| A37 | Wrest Spring | A76 | Gasket, Shift Rod Bracket |
| A38 | Locking Handle | ||
| A39 | Jacket, Locking Handle | ||
| CODE | PART NAME | CODE | PART NAME |
| B1 | Tiller Handle | B11 | Washer Gb/T97.1-6 |
| B2 | Bush | B12 | Bolt Gb/T9074.14-M6X20 |
| B3 | Spring | B13 | Cover, Tiller Handle |
| B4 | Washer Gb/T848-10 | B14 | Damper, Handle |
| B5 | Grip Assy, Tiller Handle | B15 | Bush, Handle |
| B6 | Screw Gb/T820-M5X25 | B16 | Wave Wahser |
| B7 | Friction, Tiller Handle | B17 | Wave Washer |
| B8 | Throttle Lever Assy | B18 | Bolt, Friction Adjusting |
| B9 | Throttle Cable Assy | B19 | Cotter Pin Gb/T91-1.6X12 |
| B10 | Bolt Gb/T5782-M6X50 | B20 | Tiller Handle Assy |
| CODE | PART NAME | CODE | PART NAME |

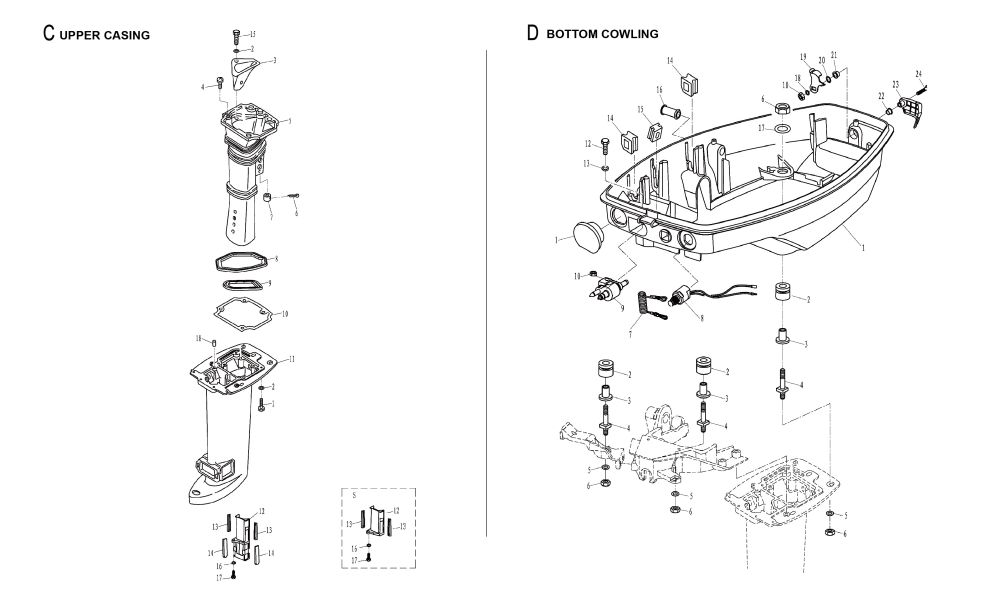

| C1 | Bolt Gb/T9074.14-M8X30 | C11 | Upper Casing L |
| C2 | Wahser Gb/T97.1-8 | C11 | Upper Casing S |
| C3 | Spacer, Manifold | C12 | Clapboard, Exhaust L |
| C4 | Screw Gb/T818-M6X16 | C12 | Clapboard, Exhaust S |
| C5 | Exhaust Manifold | C13 | Gasket A, Exhaust |
| C6 | Cotter Pin Gb/T91-2.5X25 | C14 | Gasket, Exhaust |
| C7 | Jam, Nylon | C15 | Bolt Gb/T9074.14-M8X20 |
| C8 | Gasket, Exhaust Manifold | C16 | Washer Gb/T97.1-6 |
| C9 | Gasket, Exhaust Manifold | C17 | Bolt Gb/T9074.14-M6X20 |
| C10 | Gasket, Exhaust Manifold | C18 | Pin 6X12 |
| CODE | PART NAME | CODE | PART NAME |
| D1 | Bottom Cowling | D13 | Washer Gb/T97.1-6 |
| D1 | Bottom Cowling | D14 | Wire Clamp, Rubber |
| D2 | Damper, Bottom Cowling | D15 | Jacket, Throttle Cable |
| D3 | Spacer, Bottom Cowling | D16 | Rubber Plug A |
| D4 | Bolt, Bottom Cowling | D17 | Thick Washer 8 |
| D5 | Wahser Gb/T97.1-8 | D18 | Big Washer Gb/T96-6 |
| D6 | Nut Gb/T6170-M8 | D19 | Locking Hook Assy |
| D7 | Stoper, Hang Rope Assy | D20 | Wave Washer |
| D8 | Engine Stop Switch Assy | D21 | Bush B |
| D9 | Fuel Fitting Assy | D22 | Bush A |
| D10 | Nut Gb/T6170-M6 | D23 | Locking Handle |
| D11 | Rubber Plug, Circular | D24 | Bolt Gb/T9074.14-M6X25 |
| D12 | Bolt Gb/T9074.14-M6X20 | ||
| CODE | PART NAME | CODE | PART NAME |
| E1 | Handle, Shift | E26 | Joint B, Connecting Rod |
| E2 | Screw Gb/T823-M6X20 | E27 | Nut Gb/T6170-M5 |
| E3 | Washer Gb/T97.1-6 | E28 | Joint A, Connecting Rod |
| E4 | Bush, Nylon | E29 | Joint, Connecting Rod |
| E5 | Plunger, Shift Cam | E30 | Screw Gb/T818-M5X12 |
| E6 | Spring A, Plunger | E31 | Washer, Spring Gb/T93-5 |
| E7 | Spring B, Plunger | E32 | Washer Gb/T97.1-5 |
| E8 | Nut, Plunger | E33 | Retainer, Stator Coil |
| E9 | Fixed Plate Assy, Shift Lever | E34 | Plate, Stator Coil |
| E10 | Cotter Pin Gb/T91-1.2X14 | E35 | Bolt Gb/T5782-M6X45 |
| E11 | Washer, Small Shaft | E36 | Washer, Throttle Actuator |
| E12 | Link, Shift Cam | E37 | Bush, Throttle Actuator |
| E13 | Cotter Pin Gb/T91-1X12 | E38 | Drive Pulley, Throttle |
| E14 | Washer Gb/T848-5 | E39 | Spring, Drive Wheel |
| E15 | Shift Rod Assy | E40 | Driven Wheel Assy |
| E16 | Nylon Washer, Shift Rod | E41 | Plate, Throttle Actuator |
| E17 | Jacket, Shift Rod | E41 | Plate, Throttle Actuator Fw |
| E18 | Pin Gb/T879.1-4X16 | E42 | Bolt Gb/T5783-M6X12 |
| E19 | Seat Assy, Shift Rod | E43 | Shaft, Throttle |
| E20 | Spring, Shift Rod | E44 | Bush, Swing Link |
| E21 | Cotter Pin Gb/T91-1.6X12 | E45 | Push Rod Assy, Throttle |
| E22 | Shift Rod | E46 | Tie-In, Pulser Coil |
| E23 | Nut, Plunger | E47 | Throttle Push Rod |
| E24 | Nut Gb/T6170-M6 | E48 | Swing Link Assy, Throttle |
| E25 | Link Assy, Stator Coil | ||
| CODE | PART NAME | CODE | PART NAME |
| F1 | Joint Assy, Shift | F15 | Handle, Throttle Control |
| F2 | Pin Roll Assy, Shift | F16 | Bracket, Throttle Cable |
| F3 | Pin Gb/T879.1-3X12 | F17 | Lock Nut 3/8 |
| F4 | Spring, Shift Rod | F18 | Washer Gb/T97.1-10 |
| F5 | Wahser Gb/T97.1-8 | F19 | Bolt M10X1.25X40 |
| F6 | Joint, Shift | F20 | Steering Link Rod Assy |
| F7 | Bolt Gb/T5783-M6X16 | F21 | Link Plate, Steering |
| F8 | Washer Gb/T97.1-6 | F22 | Nut 3/8 |
| F9 | Bracket Assy, Shift Rod | F23 | Bush, Bolt |
| F10 | Joint Assy, Throttle Control | F24 | Link Rod, Steering |
| F11 | Pin Assy, Throttle Control | F25 | Bolt, Steering Link |
| F12 | Spring, Throttle Control | F26 | Lock Nut Gb/T889.1-M10X1.25 |
| F13 | Joint, Throttle Control | ||
| F14 | Bolt Gb/T5783-M6X12 | ||
| CODE | PART NAME | CODE | PART NAME |

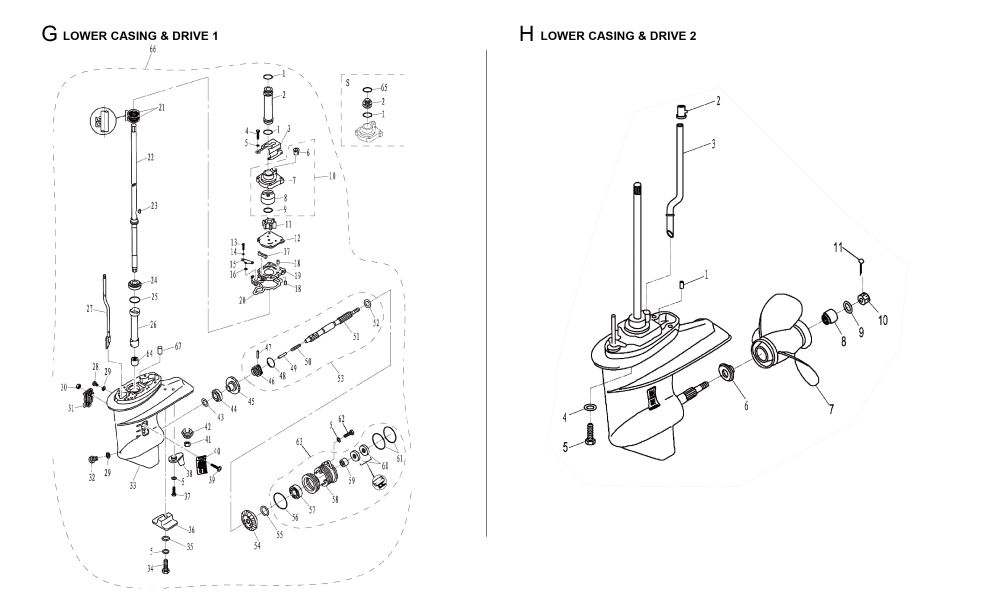

| G1 | O-Ring Gb/T3452.1-25.8X2.65 | G34 | Bolt Gb/T9074.14-M6X35 |
| G2 | Bush, Drive Shaft L | G35 | Locking Washing Gb/T86.1-6 |
| G2 | Bush, Drive Shaft S | G36 | Anode |
| G3 | Fixed Plate, Water Pump | G37 | Bolt Gb/T9074.14-M6X20 |
| G4 | Bolt Gb/T5782-M6X40 | G38 | Course Tab |
| G5 | Washer Gb/T97.1-6 | G39 | Screw Gb/T820-M5X30 |
| G6 | Seal, Water Tube | G40 | Water Inlet A |
| G7 | Housing, Water Pump | G41 | Nut, Pinion |
| G8 | Insert Cover, Water Pump | G42 | Pinion |
| G9 | O-Ring | G43 | Shim T:1.00Mm |
| G10 | Housing Assy, Water Pump | G43 | Shim T:1.10Mm |

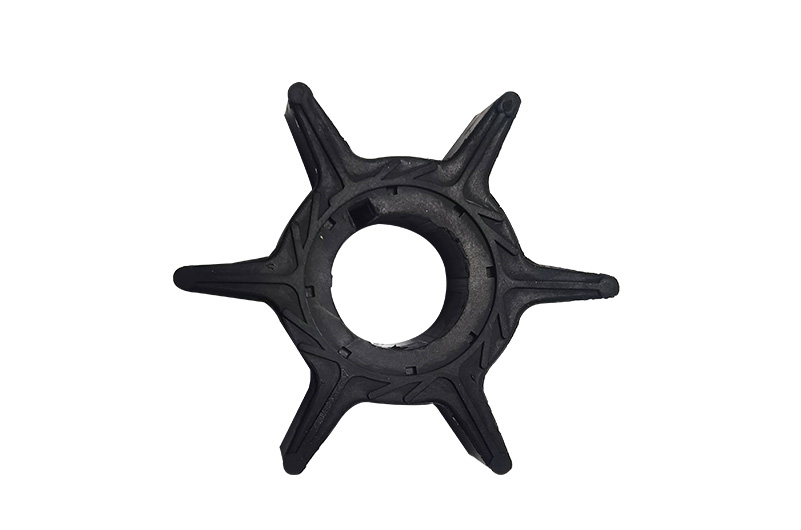

| G11 | Impeller Assy | G43 | Shim T:1.20Mm |
| G12 | Outer Plate | G43 | Shim T:1.30Mm |
| G13 | Bolt Gb/T9074.14-M6X25 | G43 | Shim T:1.40Mm |
| G14 | Washer Gb/T97.1-6 | G44 | Roller Bearing Hr30205J |
| G15 | Plate, O-Ring | G45 | Forward Gear Assy |
| G16 | O-Ring | G46 | Clutch, Dog |
| G17 | Water Seal | G47 | Pin, Clutch |
| G18 | Pin 4X10 | G48 | Ring, Clutch |
| G19 | Base, Drive Shaft | G49 | Plunger, Shift Rod |
| G20 | Seal Ring | G50 | Spring, Clutch |
| G21 | Oil Seal 22X36X6 | G51 | Propeller Shaft |

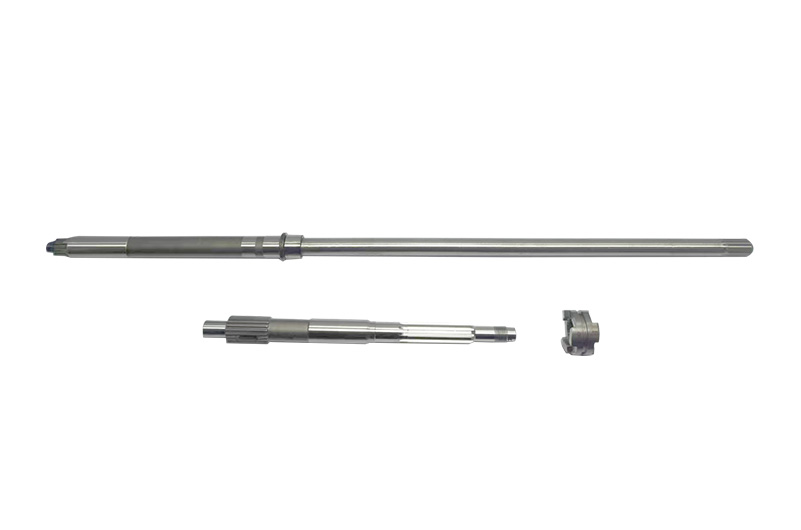

| G22 | Drive Shaft Assy L | G52 | Washer, Reverse Gear |
| G22 | Drive Shaft Assy S | G53 | Propeller Shaft Assy |

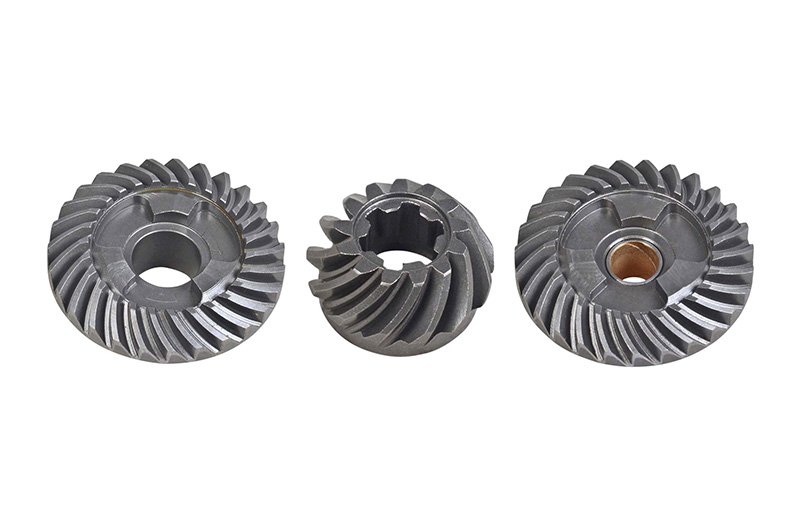

| G23 | Woodruff Key | G54 | Gear, Reverse |
| G24 | Roller Bearing Hr32004Xj | G55 | Shim T:1.00Mm |
| G25 | Shim T:0.70Mm | G55 | Shim T:1.10Mm |
| G25 | Shim T:1.00Mm | G55 | Shim T:1.20Mm |
| G25 | Shim T:1.10Mm | G55 | Shim T:1.30Mm |
| G25 | Shim T:1.20Mm | G56 | O-Ring A |
| G25 | Shim T:1.30Mm | G57 | Ball Bearing Gb/T276-6006/P6 |
| G25 | Shim T:1.40Mm | G58 | Cover, Lower Casing |
| G25 | Shim T:1.50Mm | G59 | Needle Bearing Gb/T290-Hk2016 |
| G25 | Shim T:1.60Mm | G60 | Oil Seal 20X34X6.5 |
| G26 | Bush, Nylon | G61 | O-Ring B |
| G27 | Shift Cam Shaft Assy L | G62 | Bolt Gb/T9074.14-M6X20 |
| G27 | Shift Cam Shaft Assy S | G63 | Cover Assy, Lower Casing |
| G28 | Screw Plug | G64 | Needle Bearing Gb/T290-F2020 |
| G29 | Gasket, Screw Plug | G65 | O-Ring Gb/T3452.1-21.2X1.8 |

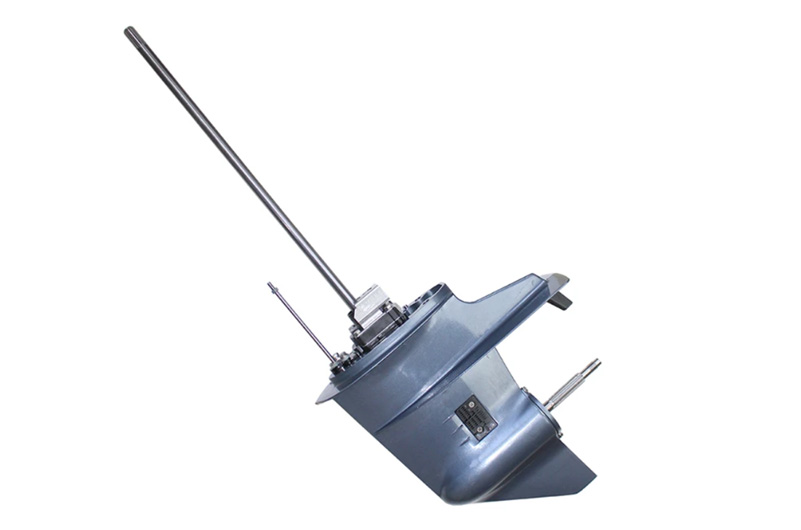

| G30 | Lock Nut Gb/T889.1-M5 | G66 | Lower Casing Assy L |
| G31 | Water Inlet B | G66 | Lower Casing Assy S |
| G32 | Bolt, Drain | G67 | Pin 6X12 |
| G33 | Lower Casing | ||
| CODE | PART NAME | CODE | PART NAME |
| H1 | Pin 6X12 | H7 | Propeller Assy 3-9 7/8″X12“ |
| H2 | Seal, Water Tube | H7 | Propeller Assy 3-9 7/8″X11 1/4″ |
| H3 | Water Tube L | H8 | Spacer |
| H3 | Water Tube S | H9 | Washer Gb/T97.1-14 |
| H4 | Washer Gb/T97.1-10 | H10 | Slotted Nut |
| H5 | Bolt M10X1.25X35 | H11 | Cotter Pin Gb/T91-3.2X25 |
| H6 | Spacer, Propeller | ||
| CODE | PART NAME | CODE | PART NAME |

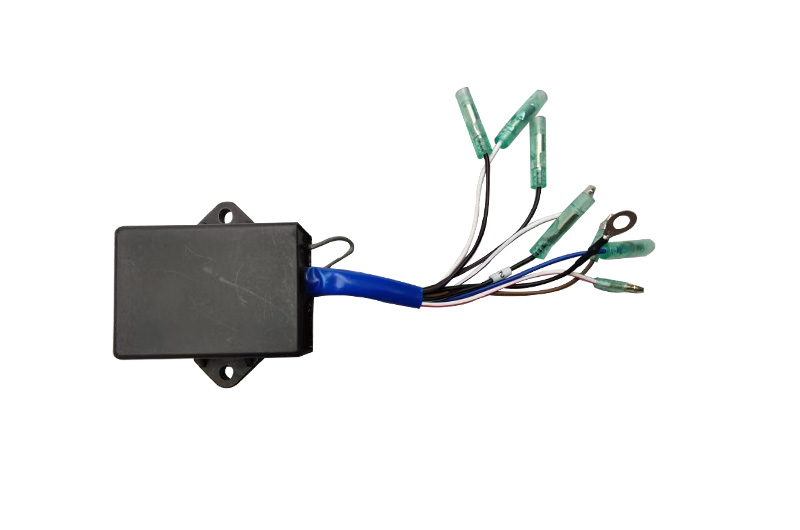

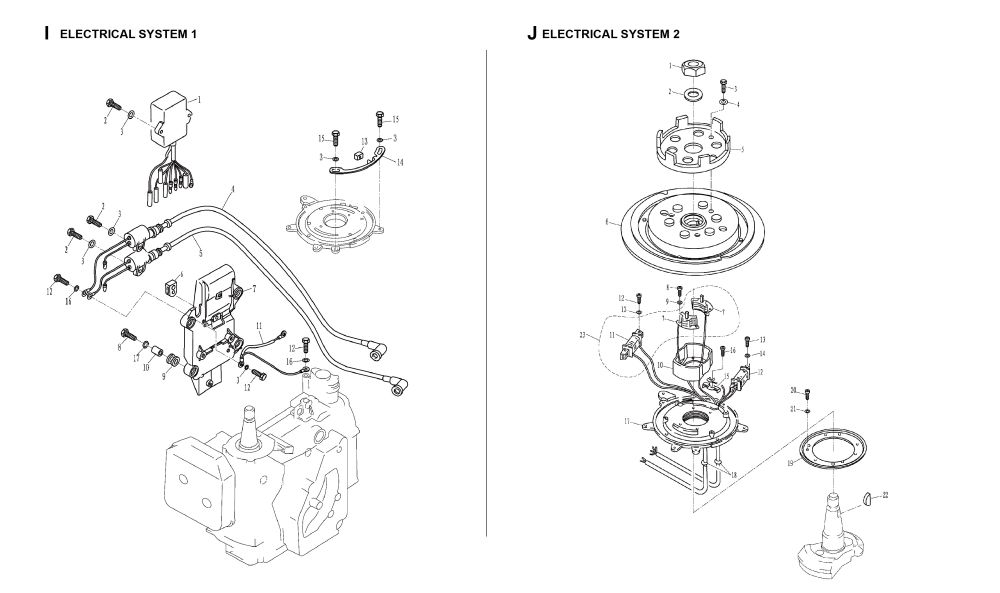

| I1 | Cdi Unit Assy | I10 | Bush, Absorber |
| I2 | Bolt Gb/T9074.14-M6X20 | I11 | Earth Wire |
| I3 | Washer Gb/T97.1-6 | I12 | Bolt Gb/T5783-M6X12 |

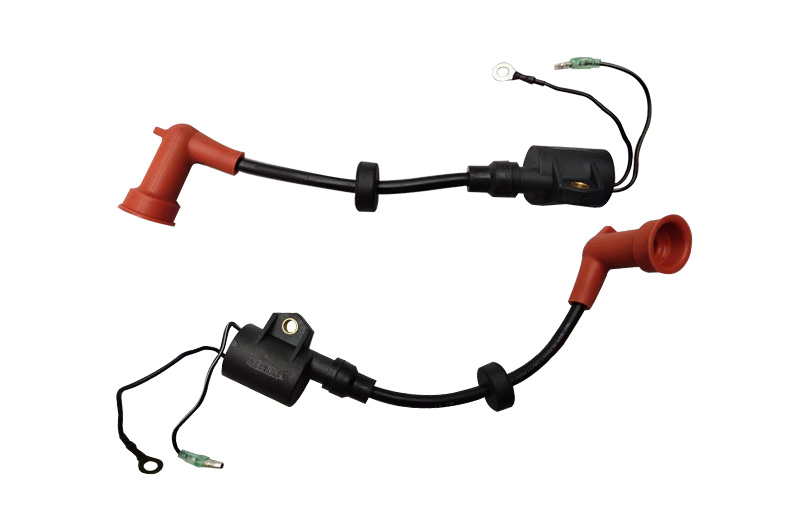

| I4 | Ignition Coil Assy A | I13 | Bush, Limited Plate |
| I5 | Ignition Coil Assy B | I14 | Plate, Stator Coil Base |
| I6 | Clamp, Ignition Coil | I15 | Bolt Gb/T5783-M6X10 |
| I7 | Bracket, Ignition Coil | I16 | Washer, Spring Gb/T93-6 |
| I8 | Bolt Gb/T9074.14-M6X30 | I17 | Big Washer Gb/T96-6 |
| I9 | Damper, Ignition Coil | ||
| CODE | PART NAME | CODE | PART NAME |
| J1 | Nut, Fly Wheel | J13 | Screw Gb/T818-M6X25 |
| J2 | Washer, Flywheel Nut | J14 | Washer, Spring Gb/T93-6 |
| J3 | Bolt Gb/T5783-M8X14 | J15 | Plate, Wire |
| J4 | Wahser Gb/T97.1-8 | J16 | Screw Gb/T818-M4X6 |
| J5 | Pulley, Starter | J17 | Base, Stator Coil |
| J6 | Flywheel Assy | J18 | Jacket, Wire |
| J7 | Pulser Coil Assy | J19 | Plate, Stator Coil Base |
| J8 | Screw Gb/T818-M4X12 | J20 | Bolt Gb/T5783-M6X14 |
| J9 | Washer,Spring Gb/T93-4 | J21 | Washer Gb/T97.1-6 |
| J10 | Fixed Frame, Pulser Coil | J22 | Woodruff Key, Fly Wheel |
| J11 | Stator Coil Assy | J23 | Light Supply Coil |

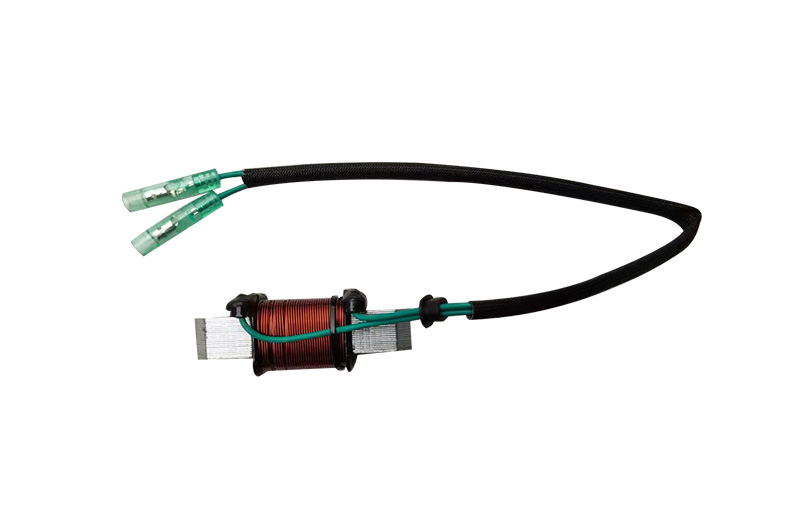

| J12 | Lighting Coil | ||
| CODE | PART NAME | CODE | PART NAME |

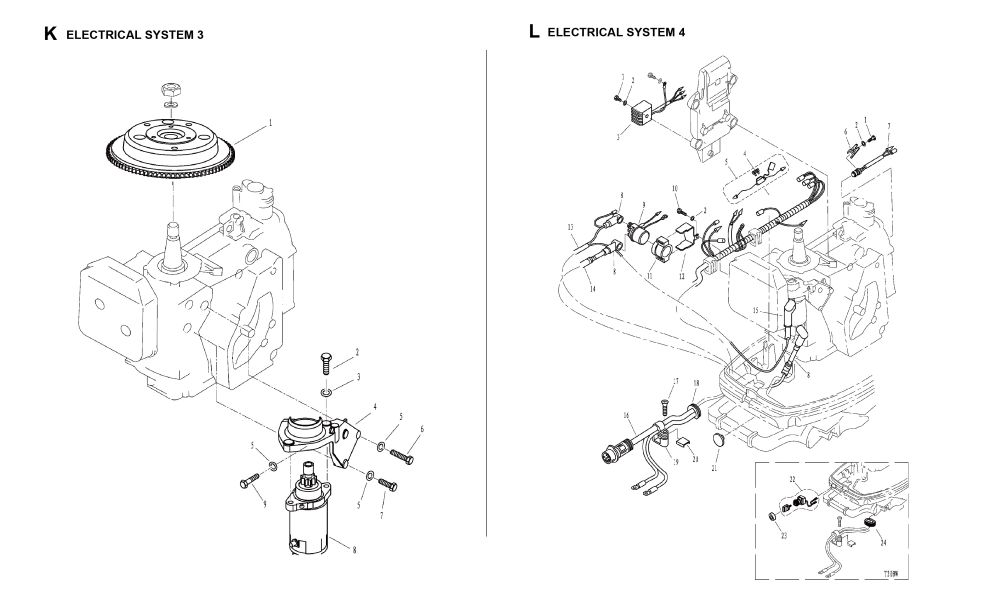

| K1 | Flywheel Assy | K6 | Bolt Gb/T5782-M6X50 |
| K2 | Bolt Gb/T9074.14-M8X30 | K7 | Bolt Gb/T9074.14-M6X30 |
| K3 | Wahser Gb/T97.1-8 | K8 | Starter Motor |
| K4 | Bracket, Startup Motor | K9 | Bolt Gb/T5782-M6X45 |
| K5 | Washer Gb/T97.1-6 | ||
| CODE | PART NAME | CODE | PART NAME |
| L1 | Bolt Gb/T5783-M6X12 | L13 | Power Cable Assy |
| L2 | Washer Gb/T97.1-6 | L14 | Power Cable, Motor |
| L3 | Rectifier Assy | L15 | Jacket A, Power Cable |
| L4 | Fuse 20A | L16 | Control Wire Assy |
| L5 | Fuse Assy | L17 | Screw Gb/T6561-M6X25 |
| L6 | Plate, Thermosensor | L18 | Jacket, Rubber |
| L7 | Thermosensor Assy | L19 | Clamp, Wire |
| L8 | Jacket, Power Cable | L20 | Plate, Clamp |
| L9 | Starter Relay Assy | L21 | Circular Plug |
| L10 | Bolt Gb/T9074.14-M6X35 | L22 | Start Switch Assy |
| L11 | Cover, Relay | L23 | Bush, Start Switch Bw |
| L12 | Fixed Plate, Relay | L24 | Rubber Plug A |

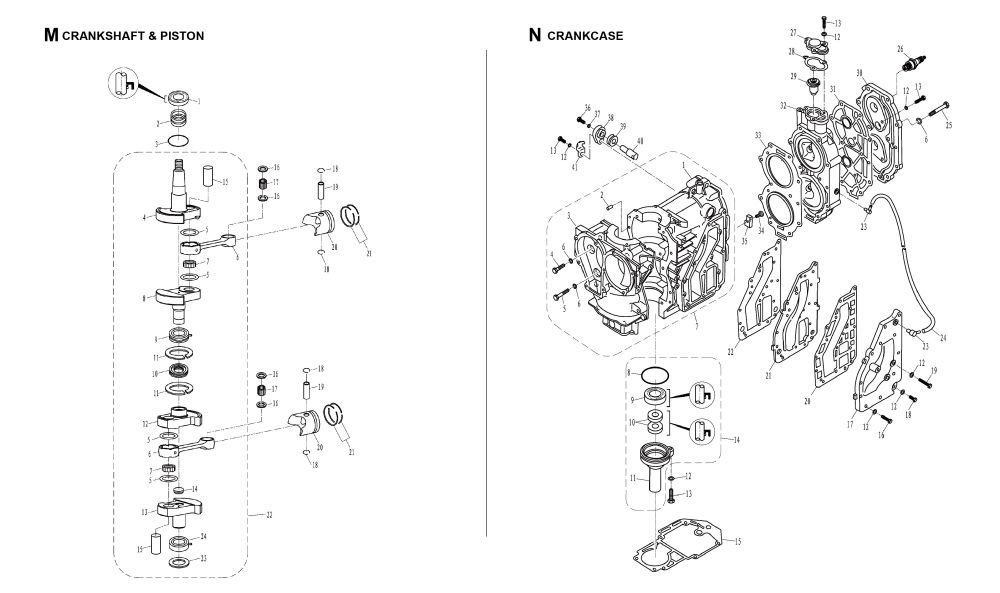

| CODE | PART NAME | CODE | PART NAME |
| M1 | Oil Seal | M13 | Block, Swing D |
| M2 | Needle Bearing With Pin | M14 | Jam, Swing Block |
| M3 | O-Ring 45X2.65 | M15 | Pin, Crankshaft |
| M4 | Block, Swing A | M16 | Washer, Piston |
| M5 | Thrust Washer | M17 | Needle Bearing 2X19.8 |
| M6 | Connecting Rod | M18 | Circlip |
| M7 | Needle Bearing | M19 | Pin, Piston |

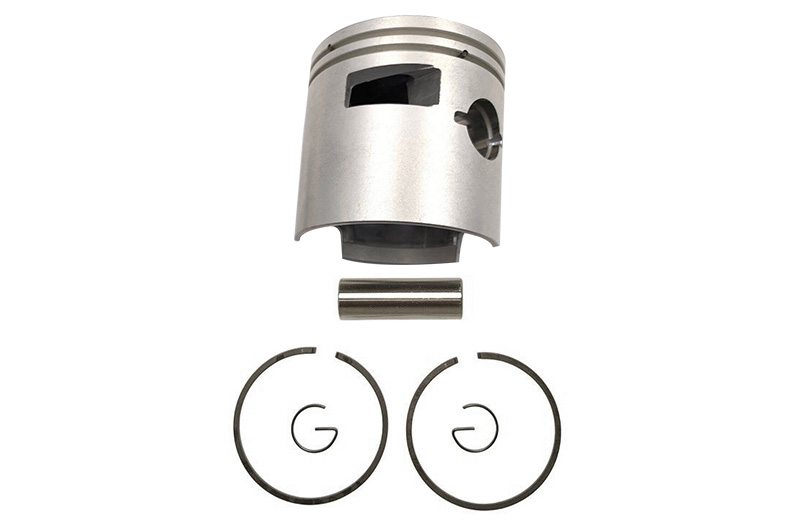

| M8 | Block, Swing B | M20 | Piston |
| M9 | Ball Bearing With Pin | M21 | Piston Ring Assy |
| M10 | Seal Ring | M22 | Crankshaft Rod Assy |
| M11 | Circlip | M23 | Fixed Washer, Crankshaft |
| M12 | Block, Swing C | M24 | Ball Bearing With Pin |
| CODE | PART NAME | CODE | PART NAME |
| N1 | Cylinder Case | N22 | Gasket, Inner Cover |
| N2 | Pin 6X12 | N23 | Pipe, Joint |
| N3 | Crankcase | N24 | Hose 10X5X106 |
| N4 | Bolt M8X60 | N25 | Bolt M8X65 |
| N5 | Bolt M8X45 | N26 | Spark Plug Bpr7Hs |
| N6 | Wahser Gb/T97.1-8 | N27 | Cover, Thermostat |
| N7 | Crankcase Assy | N28 | Gasket, Thermostat |
| N8 | O-Ring A | N29 | Thermostat |
| N9 | Oil Seal 25X48X8 | N30 | Outer Cover, Cylinder |
| N10 | Oil Seal 16X30X6 | N31 | Gasket, Cylinder Cover |
| N11 | Casing, Oil Seal | N32 | Cylinder Cover |
| N12 | Washer Gb/T97.1-6 | N33 | Gasket, Cylinder Head |
| N13 | Bolt Gb/T9074.14-M6X20 | N34 | Screw Gb/T819.1-M6X20 |
| N14 | Oil Seal Casing Assy | N35 | Anode, Crankcase |
| N15 | Gasket, Engine | N36 | Screw Gb/T818-M5X12 |
| N16 | Bolt Gb/T9074.14-M6X30 | N37 | Washer Gb/T97.1-5 |
| N17 | Outer Cover, Exhaust | N38 | Plate, Anode |
| N18 | Bolt Gb/T9074.14-M6X25 | N39 | Seal, Anode |
| N19 | Bolt Gb/T5782-M6X50 | N40 | Anode, Crankcase |
| N20 | Gasket, Outer Cover | N41 | Plate, Anode |
| N21 | Inner Cover, Exhaust | ||

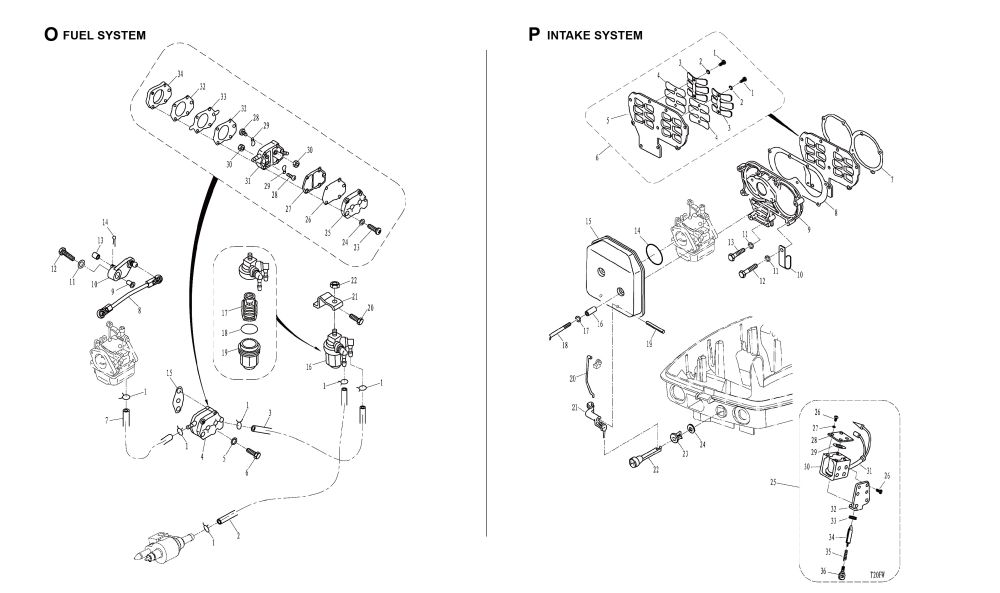

| CODE | PART NAME | CODE | PART NAME |
| O1 | Clip Spring B | O18 | O-Ring Gb/T3452.1-32.5X1.8 |
| O2 | Hose 5X10X330 | O19 | Cup, Filter |
| O3 | Fixed Hose A | O20 | Bolt Gb/T5783-M6X14 |
| O4 | Fuel Pump Assy | O21 | Bracket, Filter Cup |
| O5 | Washer Gb/T97.1-6 | O22 | Nut Gb/T6170-M8 |
| O6 | Bolt Gb/T5782-M6X40 | O23 | Screw Gb/T818-M5X30 |
| O7 | Fixed Hose B | O24 | Washer, Spring Gb/T93-5 |
| O8 | Link, Carburetor | O25 | Upper Cover, Fuel Pump |
| O9 | Washer, Swing Shaft | O26 | Diaphragm, Upper Cover |
| O10 | Swing Link Assy, Throttle | O27 | Seal, Upper Cover |
| O11 | Big Washer Gb/T96-6 | O28 | Screw, Valve |
| O12 | Bolt Gb/T9074.14-M6X20 | O29 | Plate, Check Valve |
| O13 | Pulley, Swing Shaft | O30 | Nut Gb/T6170-M3 |
| O14 | Cotter Pin Gb/T91-1.6X12 | O31 | Cover, Fuel Pump |
| O15 | Gasket, Fuel Pump | O32 | Seal, Lower Cover |
| O16 | Fuel Filter Assy | O33 | Diapwagm, Lower Cover |
| O17 | Element, Filter | O34 | Lower Cover, Fuel Pump |
| CODE | PART NAME | CODE | PART NAME |
| P1 | Bolt Gb/T5783-M5X10 | P19 | Pin Gb/T879.1-4X50 |
| P2 | Washer, Spring Gb/T93-5 | P20 | Linker, Choke |
| P3 | Limitative Plate, Valve | P21 | Swing Link, Choke |
| P4 | Plate, Intake Valve | P22 | Handle, Choke |
| P5 | Intake Valve Seal Seat | P23 | Bush, Choke |
| P6 | Intake Valve Assy | P24 | Rubber Collar, Choke |

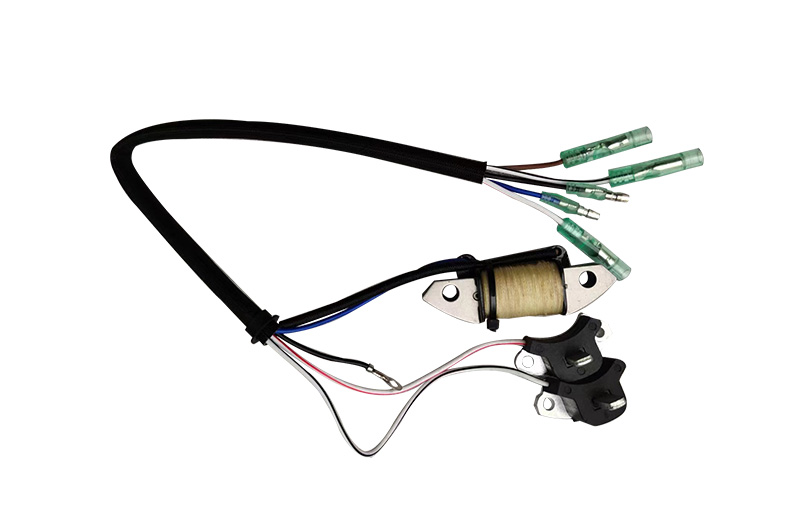

| P7 | Gasket A, Intake Valve | P25 | Magnetic Coil Assy |
| P8 | Gasket C, Intake Valve | P26 | Screw Gb/T818-M4X6 |
| P9 | Manifold, Intake | P27 | Washer,Spring Gb/T93-4 |
| P10 | Clamp | P28 | Cover Board Assy |
| P11 | Washer Gb/T97.1-6 | P29 | Gasket |
| P12 | Bolt Gb/T9074.14-M6X35 | P30 | Fixed Plate, Relay |
| P13 | Bolt Gb/T9074.14-M6X25 | P31 | Magnetic Coil |
| P14 | O-Ring Gb/T3452.1-44X2 | P32 | Fixed Plate, Relay |
| P15 | Intake Silencer Assy | P33 | Damper B |
| P16 | Bush, Intake Silencer | P34 | Iron Core |
| P17 | Big Washer Gb/T96-6 | P35 | Link, Iron Core |
| P18 | Bolt Gb/T5782-M6X115 | P36 | Hook, Iron Core |

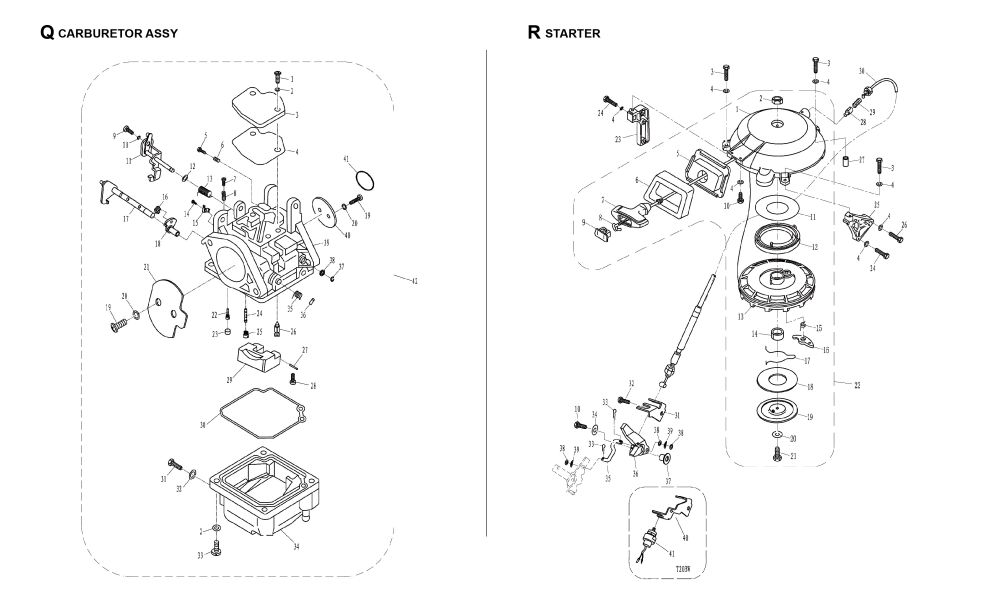

| CODE | PART NAME | CODE | PART NAME |
| Q1 | Screw Gb/T818-M4X10 | Q23 | Rubber Cap |
| Q2 | Washer,Spring Gb/T93-4 | Q24 | Main Nozzle |
| Q3 | Plate | Q25 | Jet, Main |
| Q4 | Gasket | Q26 | Needle Valve |
| Q5 | Screw, Air Adjusting | Q27 | Pin, Float |
| Q6 | Spring, Air Adjusting | Q28 | Screw Gb/T818-M4X8 |
| Q7 | Stop Screw, Throttle | Q29 | Float |
| Q8 | Spring, Stop Screw | Q30 | Gasket, Float Chamber |
| Q9 | Screw Gb/T818-M5X10 | Q31 | Bolt, Drain |
| Q10 | Big Washer Gb/T96-5 | Q32 | Gasket, Drain Bolt |
| Q11 | Swing Link, Throttle | Q33 | Screw Gb/T818-M4X12 |
| Q12 | Screw, Swing Link | Q34 | Float Chamber |
| Q13 | Spring, Swing Link | Q35 | Spring, Swing Link |
| Q14 | Screw Gb/T818-M4X6 | Q36 | Gb/T879.2-3 |
| Q15 | Spring, Choke | Q37 | Circlip Gb/T896-4 |
| Q16 | Joint, Throttle Link Rod | Q38 | Washer, Nylon |
| Q17 | Swing Link, Choke | Q39 | Body, Carburetor |
| Q18 | Bush, Swing Link | Q40 | Damper, Throttle |
| Q19 | Screw Gb/T818-M3X6 | Q41 | O-Ring |

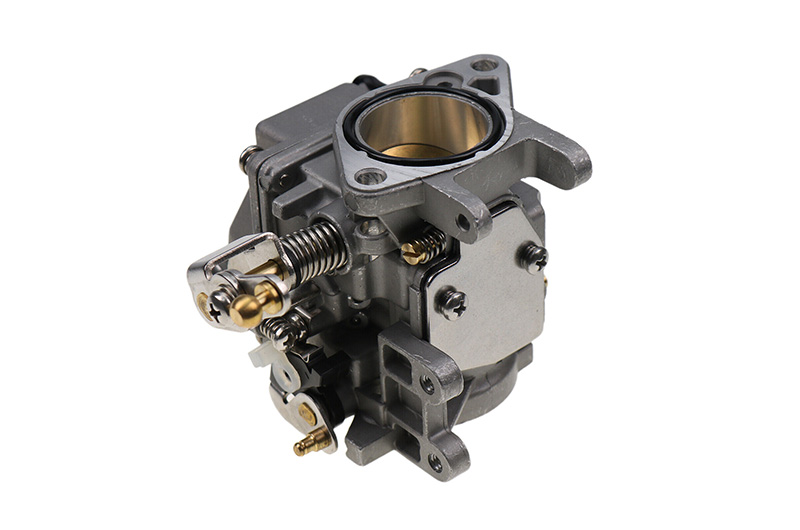

| Q20 | Washer, Spring Gb/T93-3 | Q42 | Carburetor Assy |
| Q21 | Baffle Plate, Choke | ||
| Q22 | Jet, Air Slow | ||
| CODE | PART NAME | CODE | PART NAME |
| R1 | Cover, Starter | R22 | Starter Assy |
| R2 | Nut Gb/T6170-M8 | R23 | Right Bracket, Starter |
| R3 | Bolt Gb/T9074.14-M6X35 | R24 | Bolt Gb/T9074.14-M6X25 |
| R4 | Washer Gb/T97.1-6 | R25 | Left Bracket, Starter |
| R5 | Guide, Starter | R26 | Bolt Gb/T5782-M6X45 |
| R6 | Seal, Frothy Rubber | R27 | Hollow Pin 10X8.4X14 |
| R7 | Starter Handle Assy | R28 | Joint, Detent |
| R8 | Start Rope 4X1.78 | R29 | Spring, Detent |
| R9 | Handle Cover, Starter | R30 | Detent Cable Assy |
| R10 | Bolt Gb/T9074.14-M6X20 | R31 | Frame, Detent Cable |
| R11 | Washer, Thrust | R32 | Bolt Gb/T5783-M6X10 |
| R12 | Spring, Volute | R33 | Cotter Pin Gb/T91-1.2X12 |
| R13 | Wheel, Start-Up | R34 | Big Washer Gb/T96-6 |
| R14 | Bush, Start-Up Wheel | R35 | Rod, Limited Plate |
| R15 | Spring, Pawl | R36 | Limited Plate, Detent |
| R16 | Pawl, Drive | R37 | Collar, Limited Plate |
| R17 | Spring, Plate | R38 | Washer Gb/T97.1-5 |
| R18 | Washer | R39 | Spring-Washer Gb/T860-5 |
| R19 | Plate, Start Wheel | R40 | Frame, Detent Cable |
| R20 | Washer, Spring Gb/T93-8 | R41 | Inching Switch |
| R21 | Bolt Gb/T9074.14-M8X35 | ||
| CODE | PART NAME | CODE | PART NAME |

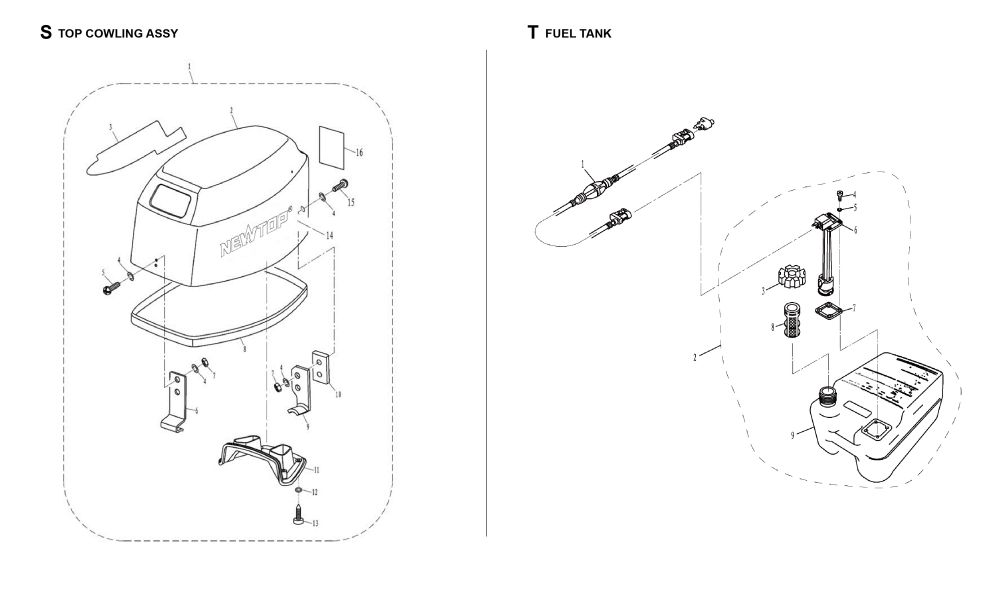

| S1 | Top Cowling Assy | S10 | Washer, Pothook |
| S2 | Top Cowling | S11 | Cover, Top Cowling Muffle |
| S3 | Decal, Top Cowling | S12 | Gasket, Rubber |
| S4 | Washer 5 | S13 | Screw Gb/T845-St4.8X16 |
| S5 | Screw Gb/T818-M5X144 | S14 | Decal, Top Cowling |
| S6 | Front Hook | S15 | Screw Gb/T818-M5X20 |
| S7 | Nut Gb/T6170-M5 | S16 | 30Hp Decal |
| S8 | Seal, Rubber | S16 | 25Hp Decal |
| S9 | Back Pothook | ||
| CODE | PART NAME | CODE | PART NAME |
| T1 | Fuel Line Assy | T6 | Oleometer Assy |
| T2 | Portable Fuel Tank Assy 24L | T7 | Gasket |
| T3 | Fuel Tank Cap Assy | T8 | Filter, Fuel Tank |
| T4 | Screw Gb/T818-M5X16 | T9 | Body, Fuel Tank |
| T5 | Washer Gb/T97.1-5 | ||

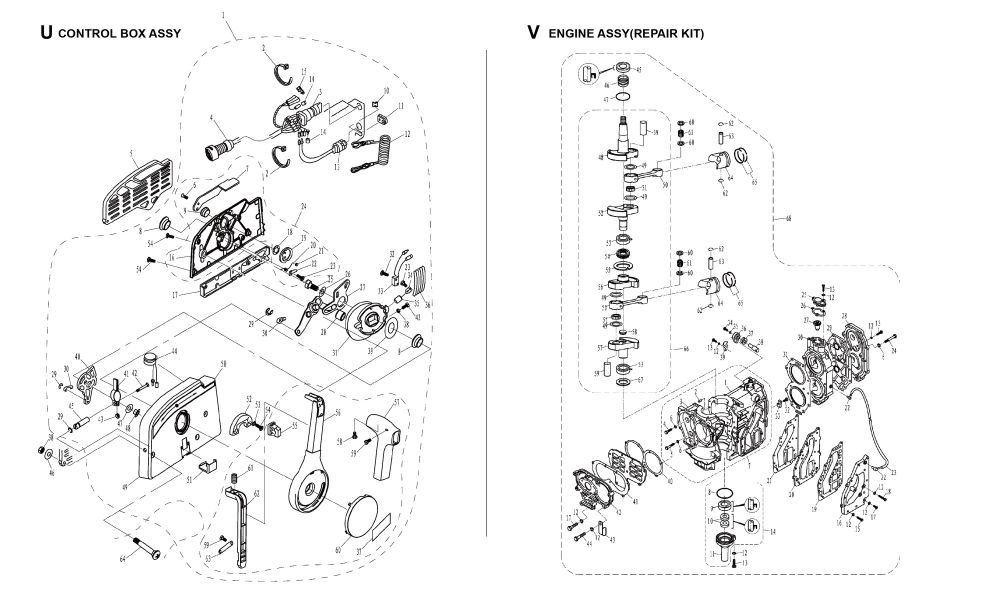

| CODE | PART NAME | CODE | PART NAME |
| U1 | Control Box Assy | U34 | Spring Plate, Shift Lever |
| U2 | Nylon Clamp 2.5X60 | U35 | Pulley, Shift Lever |
| U3 | Start Switch Assy | U36 | Spring, Shift Lever B |
| U4 | Control Wire Assy | U37 | Mark 16 |
| U6 | Screw Gb/T819.1-M5X12 | U39 | Washer, Cam |
| U7 | Inching Handle, Throttle | U40 | Shift Rod |
| U8 | Bush, Cam | U41 | Adjusting Plate |
| U9 | Bush, Handle | U42 | Bolt M5X25 |
| U10 | Block, Rubber | U43 | Nut Gb/T6170-M5 |
| U11 | Jacket, Cable | U44 | Buzzer Assy |
| U12 | Stoper, Hang Rope Assy | U45 | Adjusting Pin |
| U13 | Engine Stop Switch Assy | U47 | Bush, Handle |
| U14 | Insulated Plug B | U48 | Bush, Shift Swing Shaft |
| U15 | Insulated Plug A | U49 | Bracket, Control Box |
| U16 | Cover, Control Box | U50 | Mark 13 |
| U17 | Small Cover, Control Box | U51 | Cover, Waterproof |
| U18 | Wave Washer B | U52 | Block, Control Handle |
| U19 | Locked Disk Assy | U53 | Washer, Locked Gb/T956.1-5 |
| U20 | Wring Spring | U54 | Screw Gb/T819.1-M5X18 |
| U21 | Each Locked Pulley | U55 | Jam, Button |
| U22 | Plate, Pulley | U56 | Handle, Control Box |
| U23 | Screw M4X6 | U57 | Tiller, Control Box |
| U24 | Cover Assy, Control Box | U58 | Gb/T84.5-St4.8X12 |
| U25 | Bolt M8X30 | U59 | Screw Gb/T818-M4X10 |
| U26 | Wahser Gb/T97.1-8 | U60 | Cover, Control Handle |
| U27 | Control, Throttle | U61 | Spring |
| U28 | Washer | U62 | Orientation, Control |
| U29 | Circlip Gb/T896-6 | U63 | Fixed Plate, Located |
| U30 | Joint B, Remote Cable | U5 | Plate, Control Box |
| U31 | Cam | U38 | Nut Gb/T6170-M6 |
| U32 | Screw Gb/T818-M3X14 | U46 | Big Washer Gb/T5287-6 |
| U33 | Inching Switch | U64 | Screw Gb/T820-M6X90 |
| CODE | PART NAME | CODE | PART NAME |
| V1 | Cylinder Case | V36 | Plate, Anode |
| V2 | Pin 6X12 | V37 | Seal, Anode |
| V3 | Crankcase | V38 | Anode, Crankcase |
| V4 | Bolt M8X60 | V39 | Plate, Anode |
| V5 | Bolt M8X45 | V40 | Gasket A, Intake Valve |
| V6 | Wahser Gb/T97.1-8 | V41 | Gasket C, Intake Valve |
| V7 | Crankcase Assy | V42 | Manifold, Intake |
| V8 | O-Ring A | V43 | Clamp |
| V9 | Oil Seal 25X48X8 | V44 | Bolt Gb/T9074.14-M6X35 |
| V10 | Oil Seal 16X30X6 | V45 | Oil Seal |
| V11 | Casing, Oil Seal | V46 | Needle Bearing With Pin |
| V12 | Washer Gb/T97.1-6 | V47 | O-Ring |
| V13 | Bolt Gb/T9074.14-M6X20 | V48 | Block, Swing A |
| V14 | Oil Seal Casing Assy | V49 | Thrust Washer |
| V15 | Bolt Gb/T9074.14-M6X30 | V50 | Connecting Rod |
| V16 | Outer Cover, Exhaust | V51 | Needle Bearing |
| V17 | Bolt Gb/T9074.14-M6X25 | V52 | Block, Swing B |
| V18 | Bolt Gb/T5782-M6X50 | V53 | Ball Bearing With Pin |
| V19 | Gasket, Outer Cover | V54 | Seal Ring |
| V20 | Inner Cover, Exhaust | V55 | Circlip |
| V21 | Gasket, Inner Cover | V56 | Block, Swing C |
| V22 | Pipe, Joint | V57 | Block, Swing D |
| V23 | Hose 10X5X106 | V58 | Jam, Swing Block |
| V24 | Bolt Gb/T5782-M8X65 | V59 | Pin, Crankshaft |
| V25 | Cover, Thermostat | V60 | Washer, Piston |
| V26 | Gasket, Thermostat | V61 | Needle Bearing 2X19.8 |
| V27 | Thermostat | V62 | Circlip |
| V28 | Outer Cover, Cylinder | V63 | Pin, Piston |
| V29 | Gasket, Cylinder Cover | V64 | Piston |
| V30 | Cylinder Cover | V65 | Piston Ring Assy |
| V31 | Gasket, Cylinder Head | V66 | Crankshaft Rod Assy |
| V32 | Screw Gb/T819.1-M6X20 | V67 | Fixed Washer, Crankshaft |
| V33 | Anode, Crankcase | V68 | Engine Assy |
| V34 | Screw Gb/T818-M5X12 | ||
| V35 | Washer Gb/T97.1-5 | ||

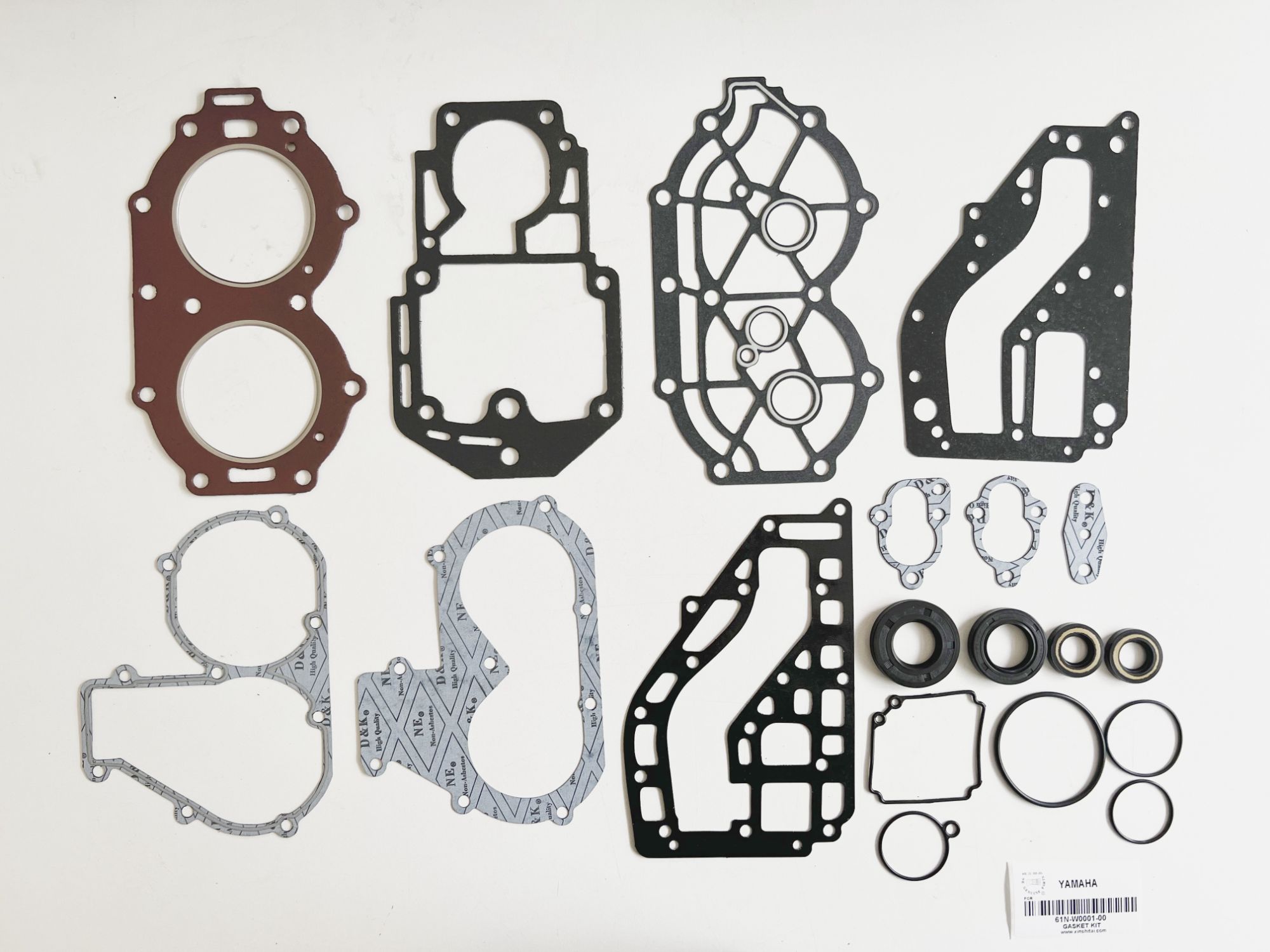

| CODE | PART NAME | CODE | PART NAME |

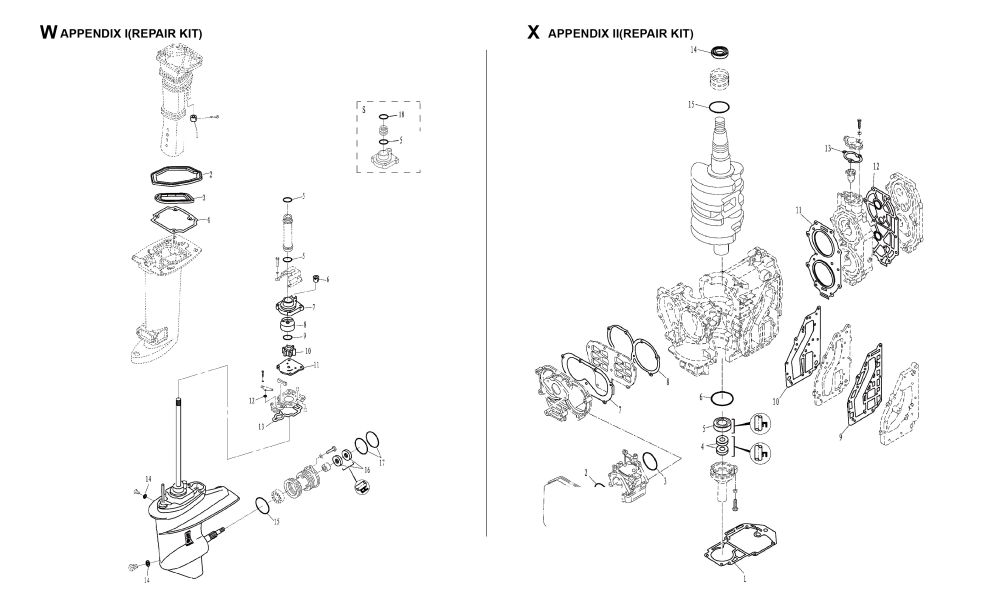

| W1 | Jam, Nylon | W10 | Impeller Assy |
| W2 | Gasket, Exhaust Manifold | W11 | Outer Plate |
| W3 | Gasket, Exhaust Manifold | W12 | O-Ring |
| W4 | Gasket, Exhaust Manifold | W13 | Seal Ring |
| W5 | O-Ring Gb/T3452.1-25.8X2.65 | W14 | Gasket, Screw Plug |
| W6 | Seal, Water Tube | W15 | O-Ring A |
| W7 | Housing, Water Pump | W16 | Oil Seal 20X34X6.5 |
| W8 | Insert Cover, Water Pump | W17 | O-Ring B |
| W9 | O-Ring | W18 | O-Ring Gb/T3452.1-21.2X1.8 |
| CODE | PART NAME | CODE | PART NAME |
| X1 | Gasket, Engine | X9 | Gasket, Outer Cover |
| X2 | O-Ring Gb/T3452.1-44X2 | X10 | Gasket, Inner Cover |
| X3 | O-Ring | X11 | Gasket, Cylinder Head |
| X4 | Oil Seal 16X30X6 | X12 | Gasket, Cylinder Cover |
| X5 | Oil Seal 25X48X8 | X13 | Gasket, Thermostat |
| X6 | O-Ring A | X14 | Oil Seal |
| X7 | Gasket C, Intake Valve | X15 | O-Ring |
| X8 | Gasket A, Intake Valve | ||
Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
CRAFTOP CANADA Ltd.
245 Fairview Mall Drive, Suite 438,
Toronto, ON, M2J 4T1, Canada
+1 905-302-0558
