| CODE | PART NAME | CODE | PART NAME |

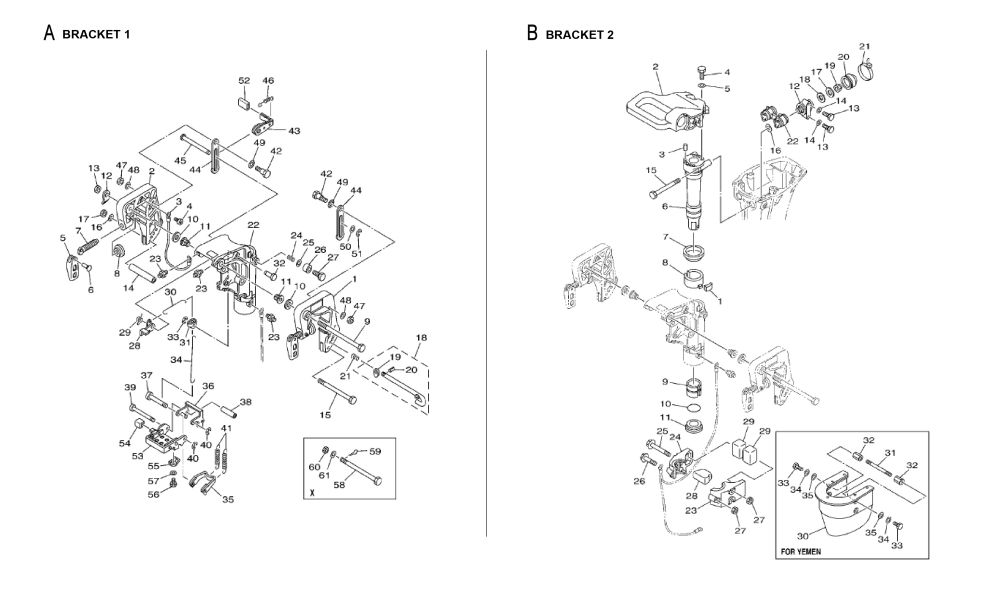

| A1 | Bracket Clamp1 | A32 | Pin |
| A2 | Bracket Clamp2 | A33 | Circlip |
| A3 | Wire Lead4 | A34 | Rod Tilt Lock |
| A4 | Screw Pan Head | A35 | Plate Tilt Lock |
| A5 | Handle Transom Clamp | A36 | Plate Tilt Lock |
| A6 | Pin | A37 | Shaft Tilt Lock |
| A7 | Screw Transom Clamp | A38 | Collar |
| A8 | Pad Transom Clamp | A39 | Shaft Reverse Lock |
| A9 | Bolt | A40 | Circlip |
| A10 | Washer Plate | A41 | Spring Tension |
| A11 | Bush Solid | A42 | Bolt |
| A12 | Plate Clamp Bracket | A43 | Lever Tilt Stop1 |
| A13 | Nut Flange | A44 | Stopper |
| A14 | Collar | A45 | Pin |
| A15 | Bolt | A46 | Spring Tension |
| A16 | Washer | A47 | Nut |
| A17 | Nut | A48 | Washer Plate |
| A18 | Tilt Rod Assy | A49 | Washer Wave |
| A19 | Plate Tilt Lock | A50 | Washer Plate |
| A20 | Pin Spring | A51 | Circlip |
| A21 | Spring Conical | A52 | Cover |
| A22 | Bracket Swivel | A53 | Lever Shallow Water Drive1 |
| A23 | Nipple Grease | A54 | Cover |
| A24 | Spring Compression | A55 | Spring |
| A25 | Washer Plate | A56 | Bolt |
| A26 | Seal Damper | A57 | Washer Plate |
| A27 | Bolt | A58 | Bolt With Washer |
| A28 | Lever Tilt | A59 | Pin Cotter |
| A29 | Spring Torsion | A60 | Nut Castle |
| A30 | Rod Tilt Lock | A61 | Washer Plate |
| A31 | Lever Tilt | — | |
| CODE | PART NAME | CODE | PART NAME |
| B1 | Plate Friction | B19 | Nut Self -Locking |
| B2 | Bracket Steering | B20 | Seal |
| B3 | Pin Dowel | B21 | Clamp |
| B4 | Bolt | B22 | Seal |
| B5 | Washer | B23 | Housing Lower Mount Rubber1 |
| B6 | Shaft Steering Pivot | B24 | Housing Lower Mount Rubber2 |
| B7 | Washer | B25 | Bolt With Washer |
| B8 | Bushing Pivot Shaft | B26 | Bolt With Washer |
| B9 | Bush | B27 | Nut |
| B10 | O-Ring | B28 | Mount Damper Lower Front |
| B11 | Bush | B29 | Mount Damper Lower Side |
| B12 | Mount Damper Upper Side | B30 | Cover Upper Casing |
| B13 | Bolt | B31 | Bolt Stud |
| B14 | Washer | B32 | Nut |
| B15 | Bolt | B33 | Bolt |
| B16 | Washer Plate | B34 | Washer |
| B17 | Washer Plate | B35 | Washer Plate |
| B18 | Washer Plate | — | |
| CODE | PART NAME | CODE | PART NAME |

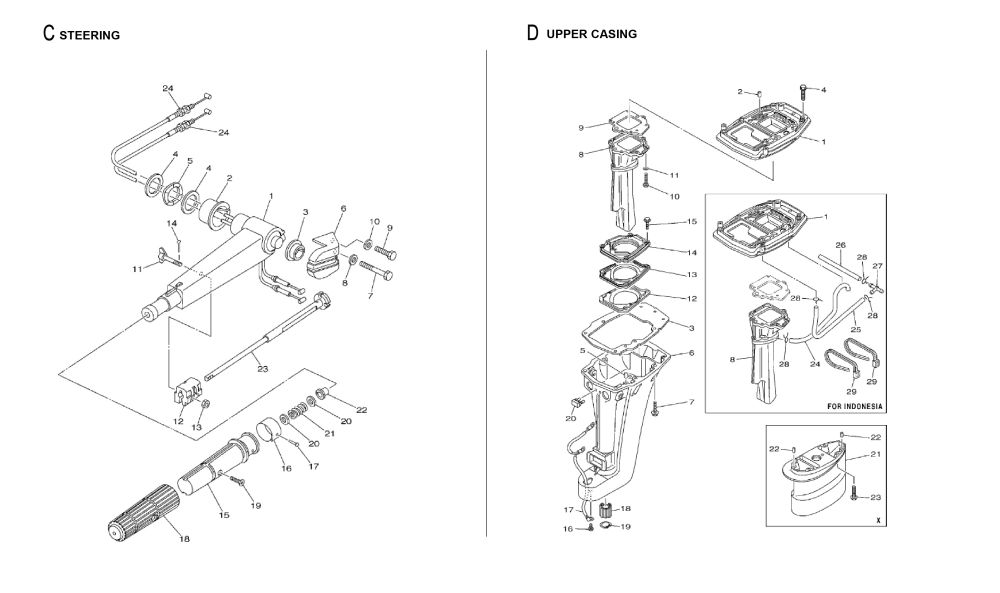

| C1 | Handle Steering | C13 | Nut Hexagon |
| C2 | Bush Solid | C14 | Pin Cotter |
| C3 | Bush Solid | C15 | Grip Steering Handle |
| C4 | Washer Plate | C16 | Indicator Throttle |
| C5 | Washer Wave | C17 | Rivet |
| C6 | Cover Handle Steering | C18 | Rubber Handle |
| C7 | Bolt | C19 | Screw Countersunk |
| C8 | Washer | C20 | Washer Plate |
| C9 | Bolt | C21 | Spring Comperssion |
| C10 | Washer | C22 | Bush |
| C11 | Bolt Friction Adjusting | C23 | Lever Throttle |
| C12 | Friction Steering Handle Grip | C24 | Throttle Cable Assy |
| CODE | PART NAME | CODE | PART NAME |
| D1 | Guide Exhaust | D16 | Screw Pan Head |
| D2 | Pin Dowel | D17 | Wire Lead2 |
| D3 | Gasket Upper Casing | D18 | Bushing Drive Shaft |
| D4 | Bolt With Washer | D19 | Circlip |
| D5 | Pin Dowel | D20 | Stopper Upper Mount |
| D6 | Casing Upper | D21 | Extension |
| D7 | Bolt With Washer | D22 | Pin Dowel |
| D8 | Manifold Ext1 | D23 | Bolt With Washer |
| D9 | Gasket Exhaust Manifold | D24 | Pipe |
| D10 | Bolt | D25 | Hosel110 |
| D11 | Washer | D26 | Hosel90 |
| D12 | Plate Seal Damper | D27 | Pipe Joint3 |
| D13 | Seal | D28 | Clip |
| D14 | Protector | D29 | Clamp |
| D15 | Bolt Flange | — | |
| CODE | PART NAME | CODE | PART NAME |

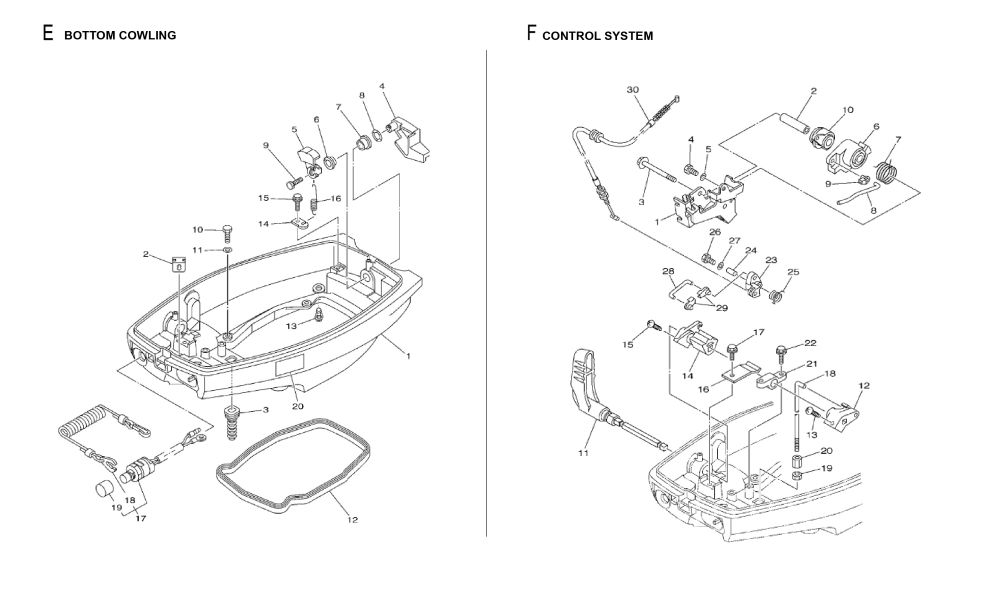

| E1 | Cowling Bottom | E11 | Washer |
| E2 | Grommet | E12 | Rubber Seal1 |
| E3 | Grommet | E13 | Nipple Hose |
| E4 | Lever Clamp | E14 | Hook Spring |
| E5 | Lever Clamp | E15 | Bolt |
| E6 | Bush | E16 | Spring Tension |
| E7 | Bush | E17 | Engine Stop Switch Assy |

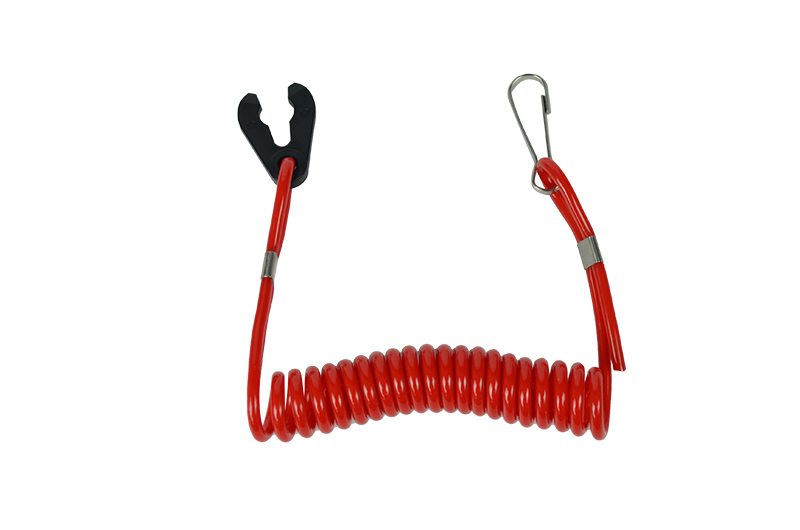

| E8 | Washer Wave | E18 | Lanyard Stop Switch |
| E9 | Bolt | E19 | Cap |
| E10 | Bolt | E20 | Label Warning |
| CODE | PART NAME | CODE | PART NAME |
| F1 | Stay Throttle Wire | F16 | Spring |
| F2 | Collar | F17 | Bolt |
| F3 | Bolt Flange | F18 | Rod Shift |
| F4 | Bolt | F19 | Nut |
| F5 | Washer | F20 | Connector Shift Rod |
| F6 | Lever Free Accel | F21 | Bracket2 |
| F7 | Spring Torsion | F22 | Bolt |
| F8 | Link Accel | F23 | Arm |
| F9 | Joint Choke Lever | F24 | Collar |
| F10 | Pulley | F25 | Spring Torsion |
| F11 | Handle Gear Shift | F26 | Bolt |
| F12 | Lever Shift Rod | F27 | Washer |
| F13 | Screw Tapping | F28 | Link |
| F14 | Lever Shift Rod | F29 | Joint Choke Lever |
| F15 | Screw Tapping | F30 | Cable Comp Starter Stop |
| CODE | PART NAME | CODE | PART NAME |

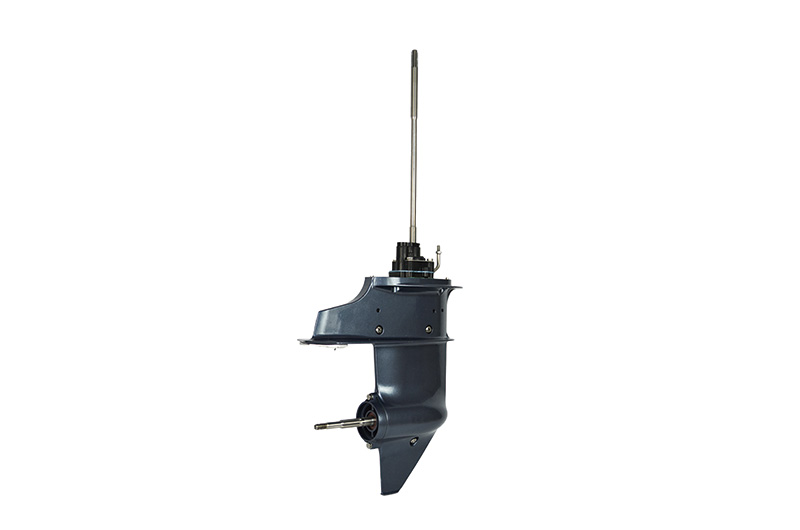

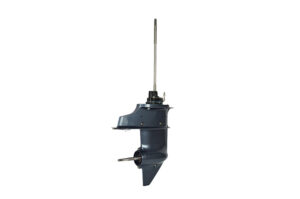

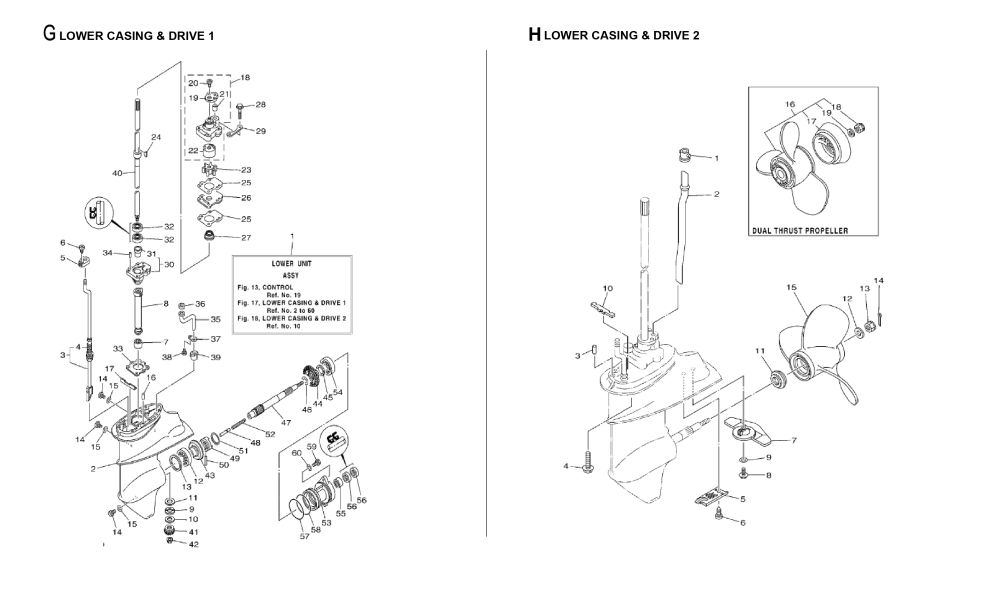

| G1 | Lower Unit Assy | G31 | Bushing Drive Shaft |
| G2 | Casing Lower | G32 | Oil Seal |
| G3 | Shift Cam Assy | G33 | Packing Lower Casing |
| G4 | Boot Shift Rod | G34 | Pin Dowel |
| G5 | Bracket | G35 | Tube Water2 |
| G6 | Screw Tapping | G36 | Damper Water Seal1 |
| G7 | Bearing | G37 | Set Plate Water Tube |
| G8 | Sleeve Drive Shaft | G38 | Bolt |
| G9 | Washer | G39 | Damper Water Seal2 |
| G10 | Shim | G40 | Drive Shaft Comp |

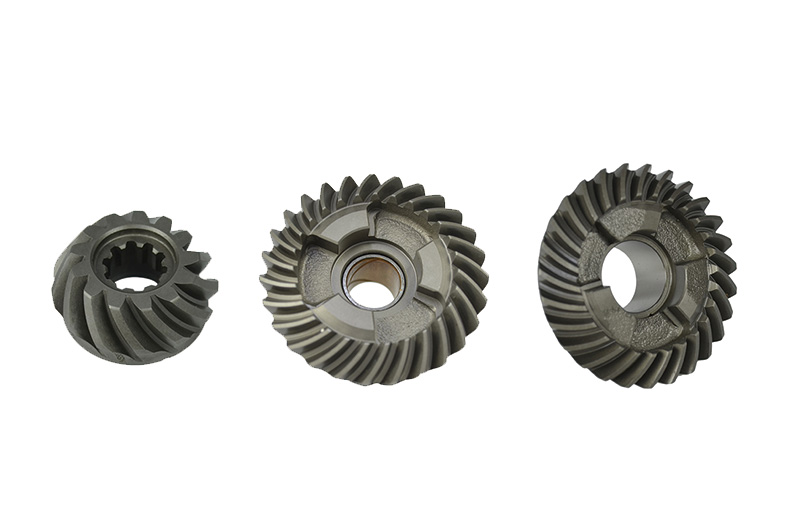

| G11 | Washer Plate | G41 | Pinion |
| G12 | Bearing | G42 | Nut |
| G13 | Shim | G43 | Gear1 |
| G14 | Plug Straight Screw | G44 | Gear2 |
| G15 | Gasket | G45 | Shim |
| G16 | Pin Dowel | G46 | Washer Plate |
| G17 | Guide Seal Damper | G47 | Shaft Propeller |
| G18 | Housing Water Pumpassy | G48 | Plunger Shift |

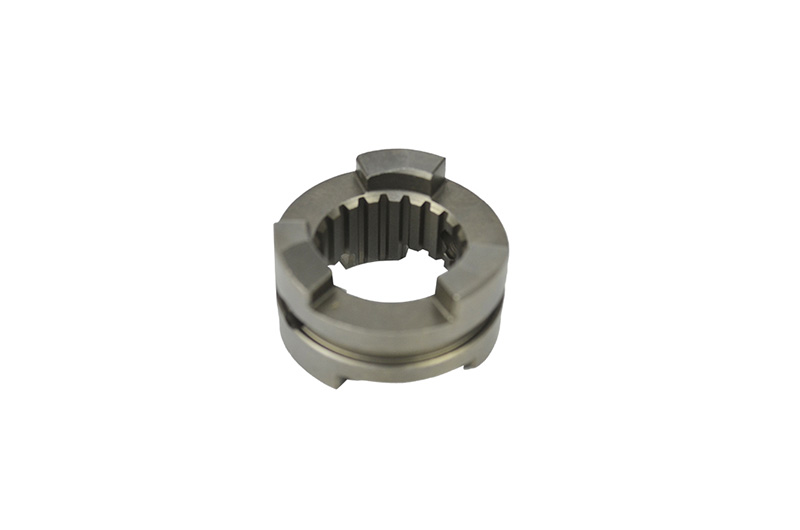

| G19 | Cover Water Pump Housing | G49 | Clutch Dog |
| G20 | Screw Oval Head Tapping | G50 | Pin Straight |
| G21 | Damper Water Seal | G51 | Ring Cross Pin |
| G22 | Insert Cartridge | G52 | Spring Compression |

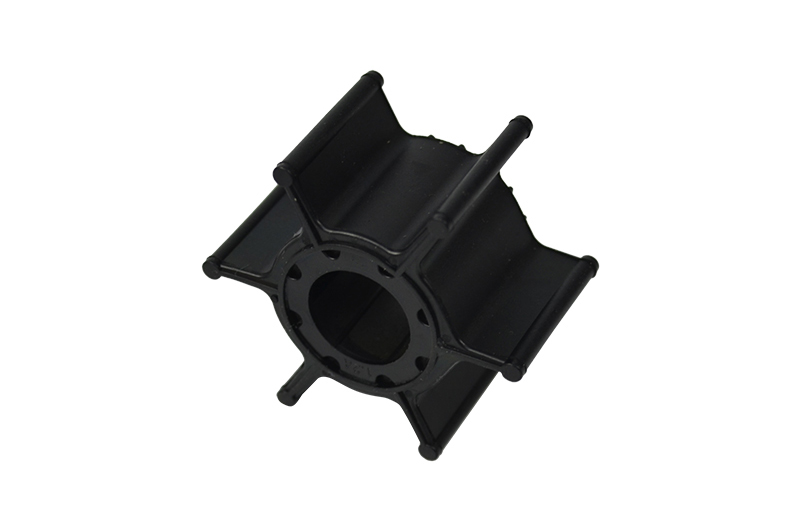

| G23 | Impeller | G53 | Cap Lower Casing |
| G24 | Key Woodruff | G54 | Bearing |
| G25 | Gasket Water Pump | G55 | Bearing |
| G26 | Outer Plate Cartridge | G56 | Oil Seal |
| G27 | Cover Oil Seal | G57 | O-Ring |
| G28 | Bolt With Washer | G58 | O-Ring |
| G29 | Plate | G59 | Bolt |
| G30 | Housing Bearing | G60 | Washer |
| CODE | PART NAME | CODE | PART NAME |
| H1 | Damper Water Seal | H11 | Spacer |
| H2 | Tube Water | H12 | Washer Plate |

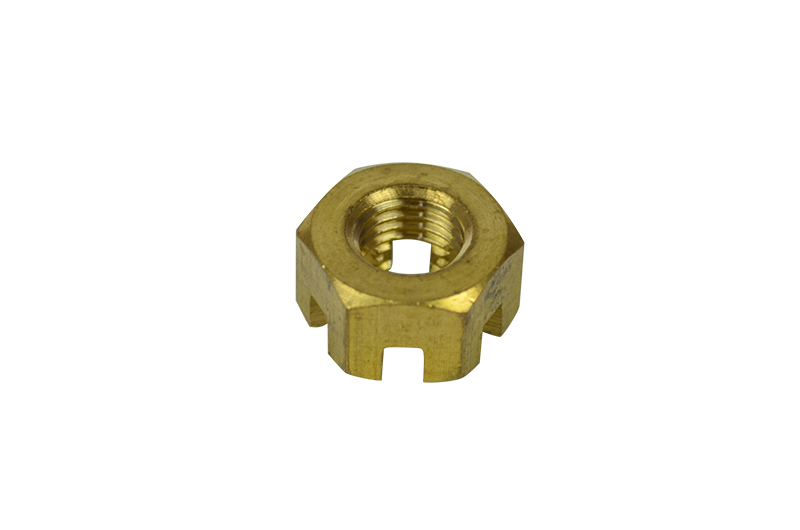

| H3 | Pin Dowel | H13 | Nut Castle |
| H4 | Bolt With Washer | H14 | Pin Cotter |

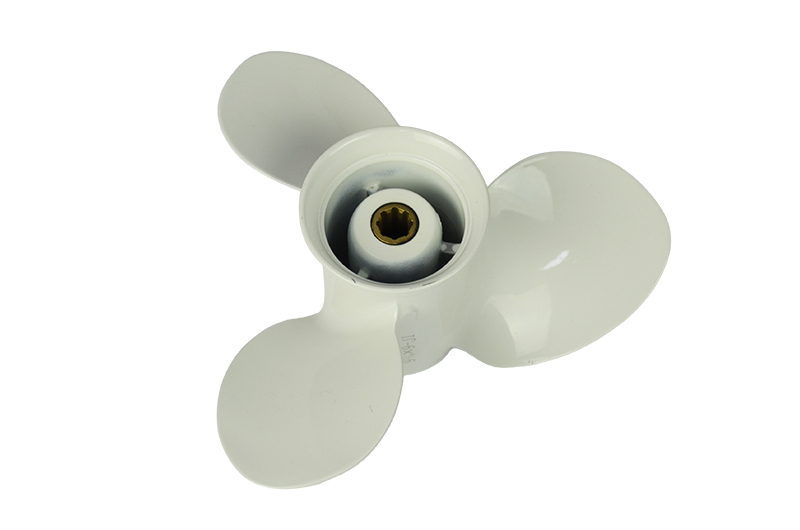

| H5 | Cover Water Inlet | H15 | Propeller |
| H6 | Screw Pan Head | H16 | Propeller |

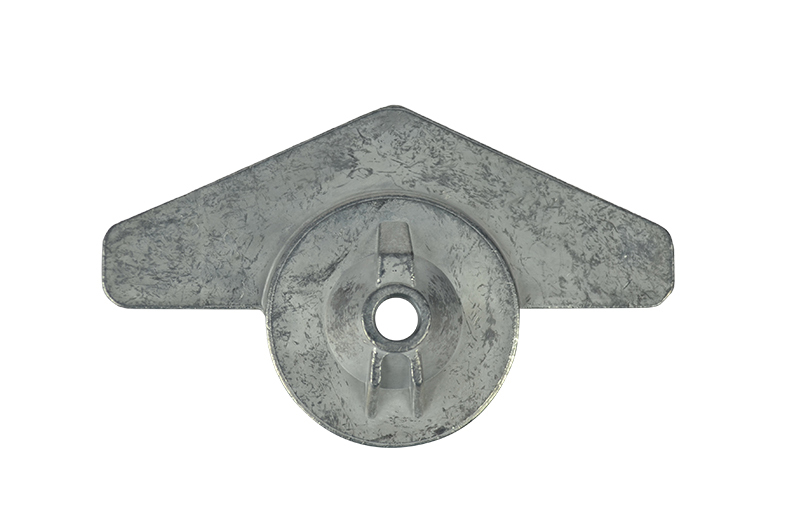

| H7 | Anode | H17 | Ring Deflector |
| H8 | Bolt Flange | H18 | Nut Castle |
| H9 | Washer Internal Tooth | H19 | Washer Plate |
| H10 | Damper Seal | — | |
| CODE | PART NAME | CODE | PART NAME |

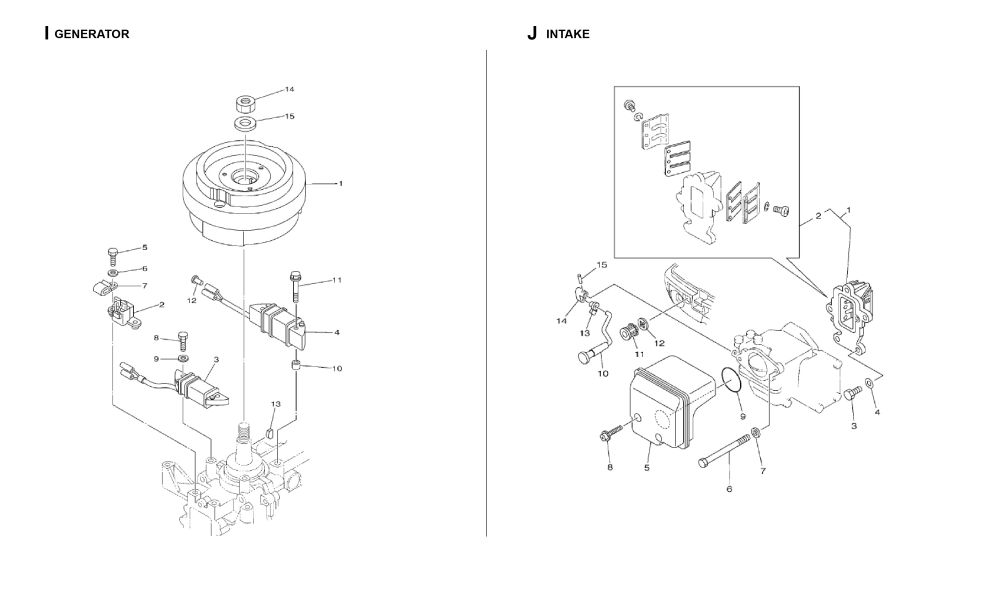

| I1 | Rotor Assy | I9 | Washer |

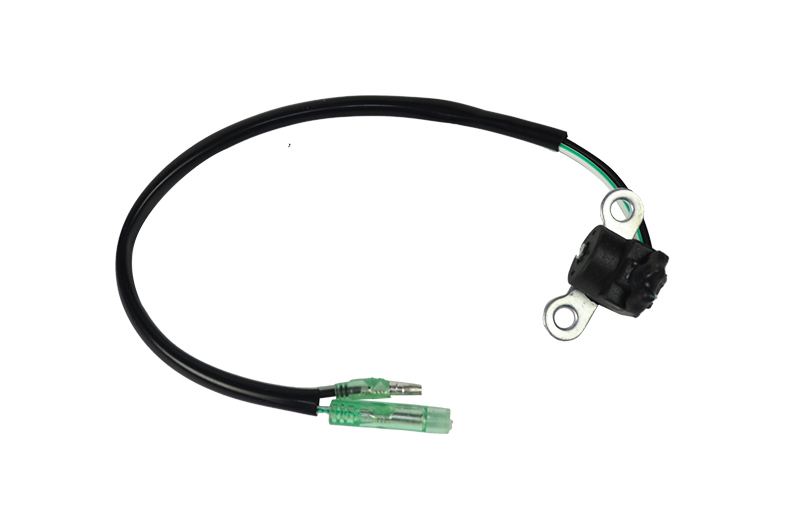

| I2 | Coil Pulser | I10 | Collar |
| I3 | Coil Charge | I11 | Bolt With Washer |

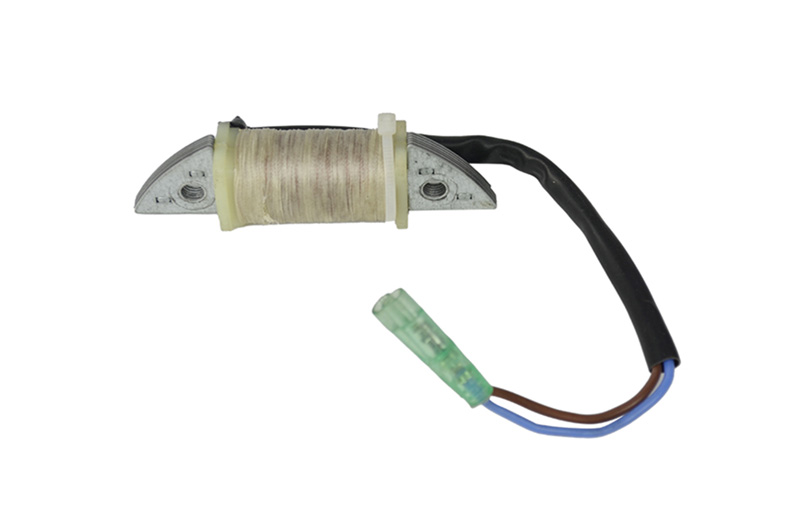

| I4 | Coil Lighting | I12 | Cover Lead Wire |
| I5 | Bolt | I13 | Key Woodruff |
| I6 | Washer | I14 | Nut |
| I7 | Clamp | I15 | Washer Plate |
| I8 | Bolt | — | |
| CODE | PART NAME | CODE | PART NAME |

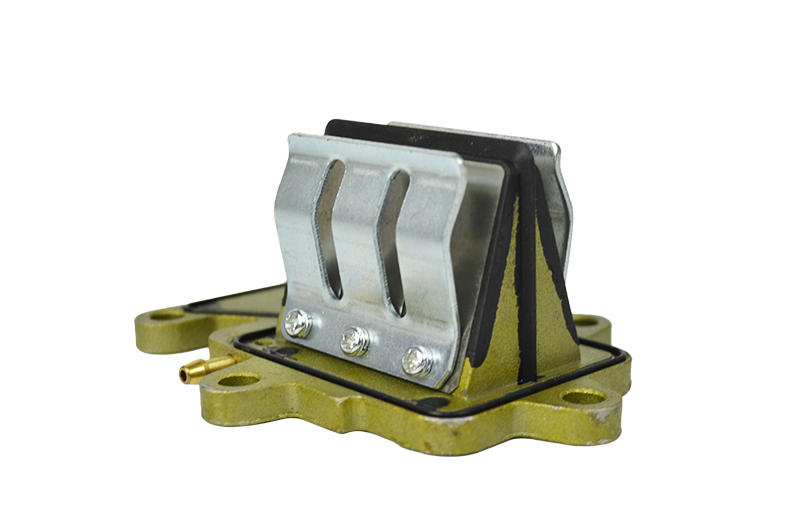

| J1 | Reed Valve Assy | J9 | O-Ring |
| J3 | Bolt | J10 | Knob Choke |
| J4 | Washer | J11 | Grommet |
| J5 | Silencer Assy Intake | J12 | Grommet |
| J6 | Bolt | J13 | Joint Choke Lever |
| J7 | Washer | J14 | Lever Choke |
| J8 | Screw With Washer | J15 | Pin Spring |
| CODE | PART NAME | CODE | PART NAME |

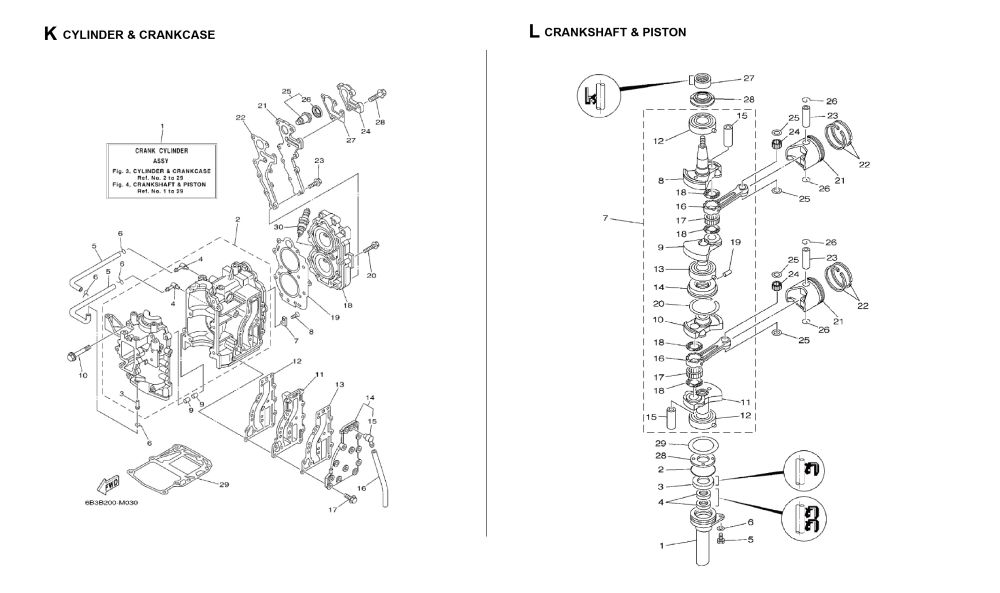

| K1 | Crank Cylinder Assy | K15 | Nipple Hose |

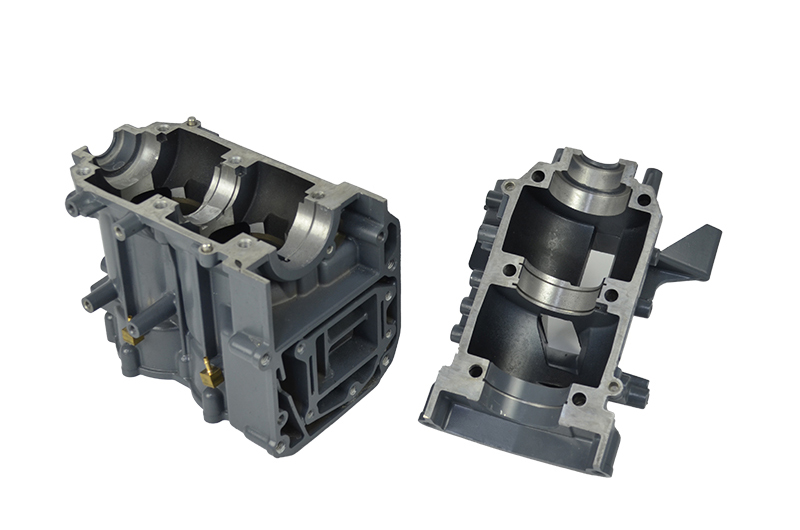

| K2 | Crankcase Assy | K16 | Hose |
| K2-1 | Cylinder | K17 | Bolt With Washer |
| K2-2 | Crankcase | K18 | Head Cylinder |
| K2-3 | Cylinder Liner | K19 | Gasket Cylinder Head |
| K3 | Pipe Joint | K20 | Bolt Flange |
| K4 | Pipe Joint | K21 | Cover Cylinder Head |
| K5 | Hose | K22 | Gasket Head Cover |
| K6 | Clip | K23 | Bolt With Washer |
| K7 | Anode | K24 | Cover Thermostat |
| K8 | Screw Flat Head | K25 | Thermostat |
| K9 | Pin Dowel | K26 | Seal Thermostat |
| K10 | Bolt With Washer | K27 | Gasket Cover |
| K11 | Inner Cover Exhaust | K28 | Bolt With Washer |
| K12 | Gasket Exhaust Inner Cover | K29 | Gasket Cylinder |
| K13 | Gasket Exhaust Inner Cover | K30 | Plug Spark |

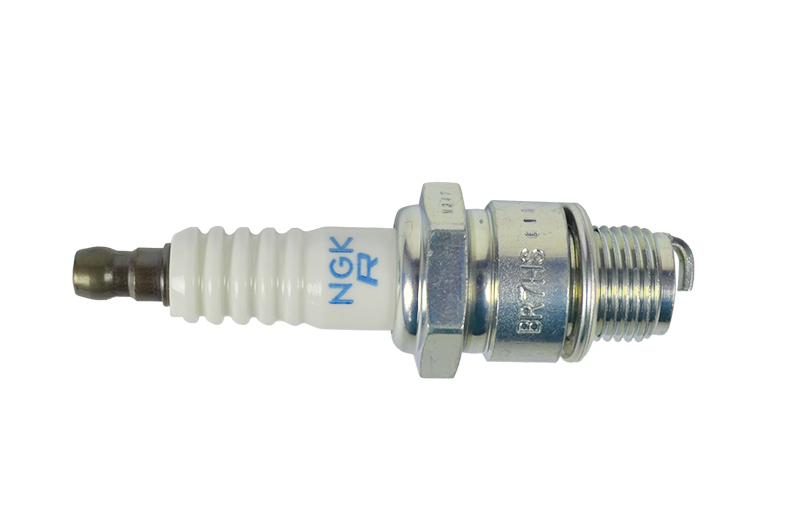

| K14 | Outer Cover Exhaust | — | |
| CODE | PART NAME | CODE | PART NAME |
| L1 | Housing Oil Seal | L16 | Rod Connecting |
| L2 | O-Ring | L17 | Bearing |
| L3 | Oil Seal | L18 | Washer |
| L4 | Oil Seal | L19 | Pin Spring |
| L5 | Bolt | L20 | Circlip |

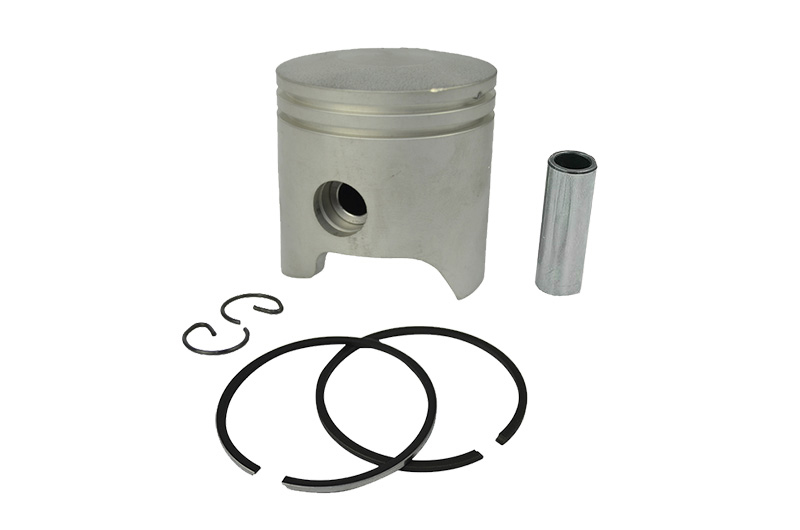

| L6 | Washer | L21 | Piston |

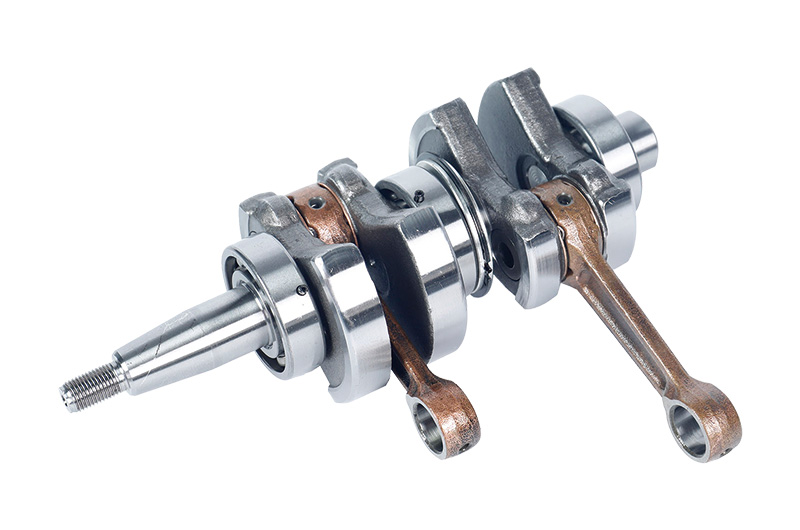

| L7 | Crankshaft Assy | L22 | Piston Ring |
| L8 | Crank1 | L23 | Pin Piston |
| L9 | Crank2 | L24 | Pin Dowel |
| L10 | Crank3 | L25 | Washer Plate |
| L11 | Crank4 | L26 | Circlip |
| L12 | Bearing | L27 | Oil Seal |
| L13 | Bearing | L28 | Spacer |
| L14 | Seal Labyrinth | L29 | Washer Plate |
| L15 | Pin Crank | — | |
| CODE | PART NAME | CODE | PART NAME |

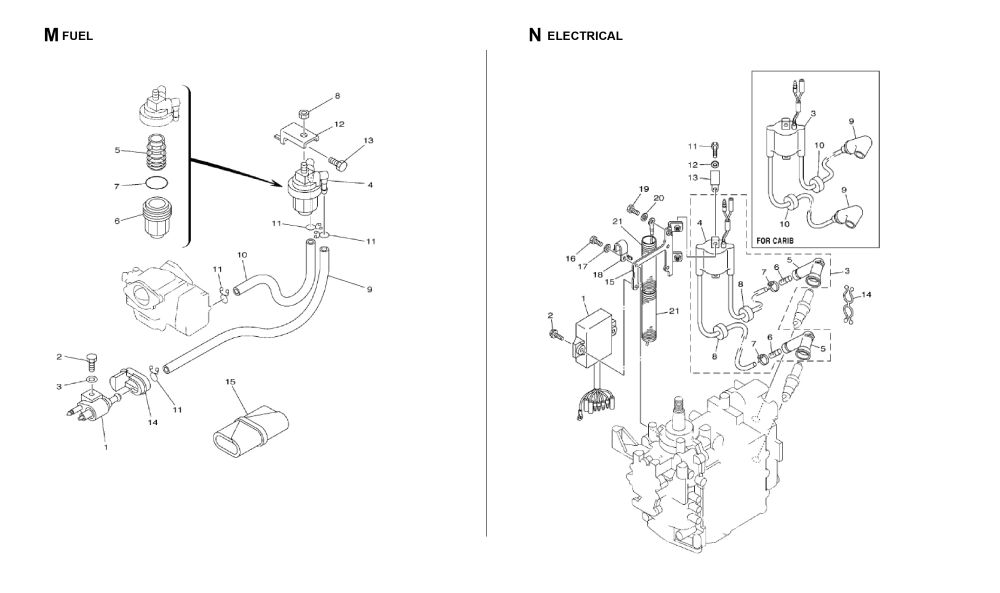

| M1 | Fuel Pipe Comp | M9 | Hose |
| M2 | Bolt | M10 | Hose |
| M3 | Washer | M11 | Clip |

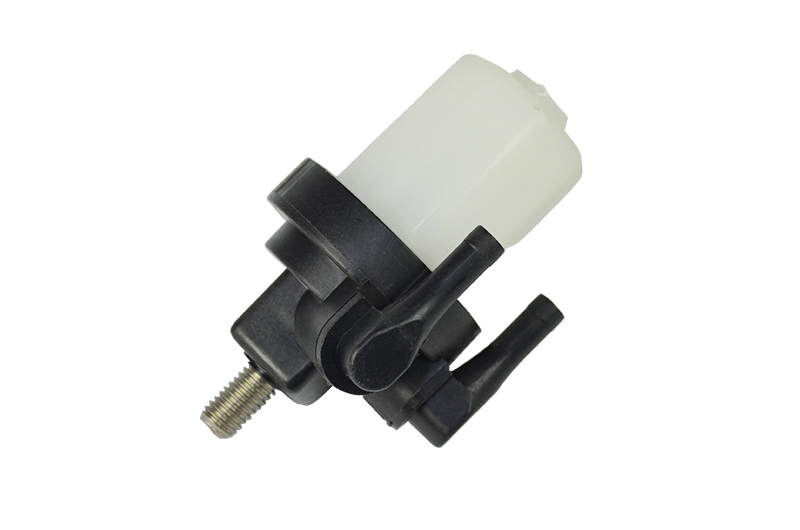

| M4 | Filter Assy | M12 | Bracket Filter |
| M5 | Element Filter | M13 | Bolt |
| M6 | Cup Filter | M14 | Seal |
| M7 | O -Ring | M15 | Tool Kit |
| M8 | Nut | — | |
| CODE | PART NAME | CODE | PART NAME |

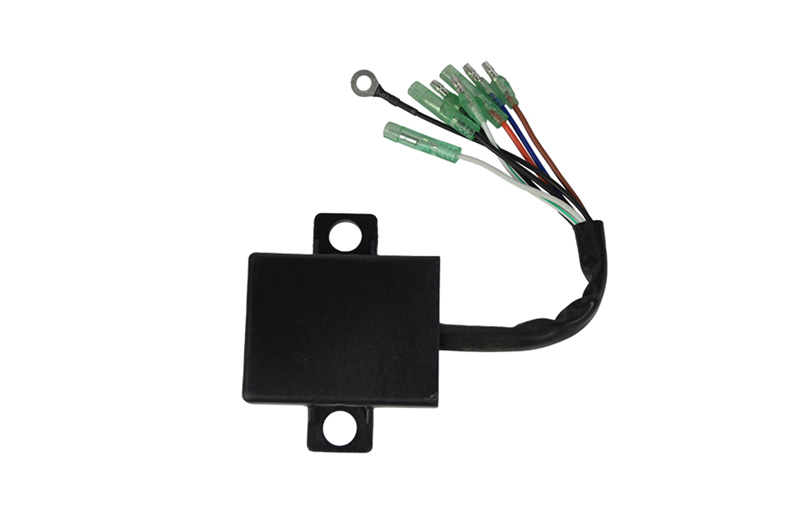

| N1 | Cdi Nint Assy | N12 | Washer |
| N2 | Bolt With Washer | N13 | Clamp |

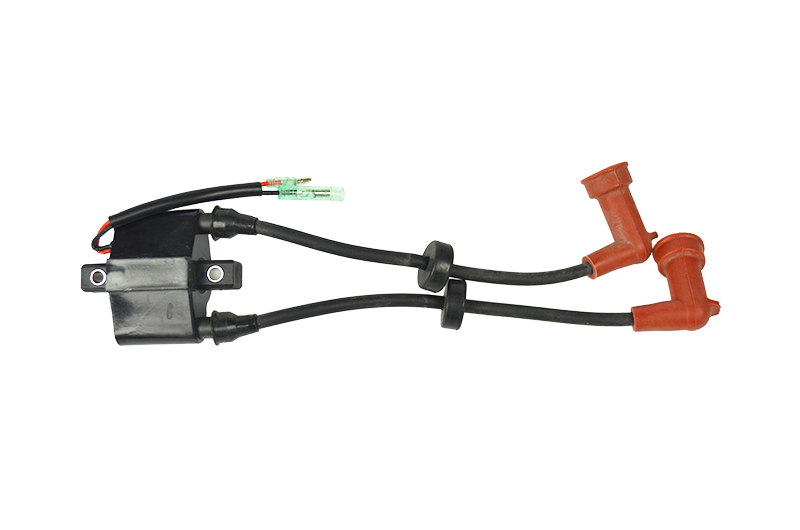

| N3 | Ignition Coil Assy | N14 | Clamp |
| N4 | Ignition Coil Assy | N15 | Bracket Ignition Coil |
| N5 | Cap Plug | N16 | Bolt |
| N6 | Terminal1 | N17 | Washer |
| N7 | Clamp | N18 | Clamp |
| N8 | Grommet | N19 | Bolt |
| N9 | Plug Cap Assy | N20 | Washer |
| N10 | Grommet | N21 | Tube |
| N11 | Bolt | — | |
| CODE | PART NAME | CODE | PART NAME |

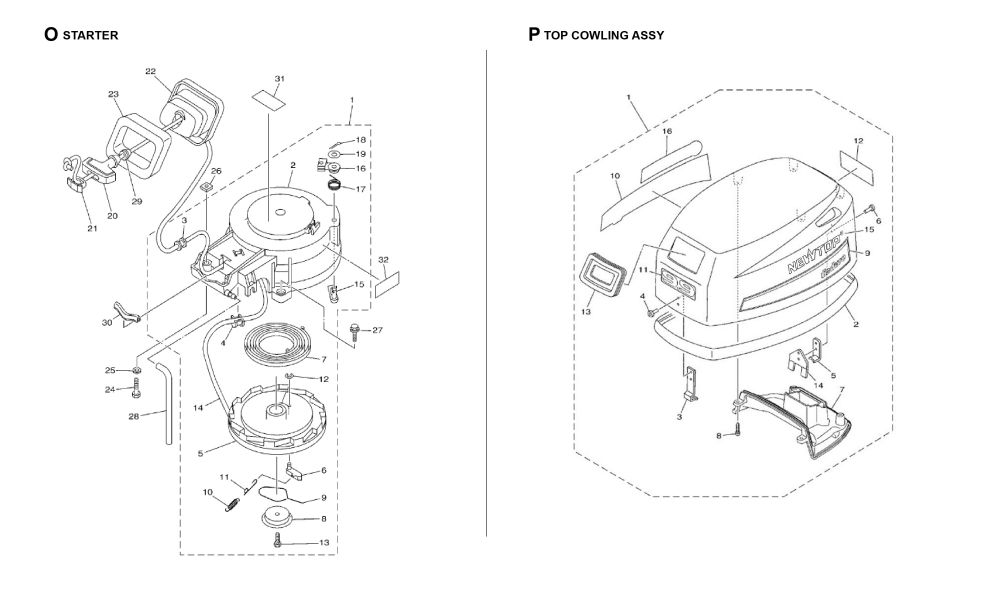

| O1 | Stater Assy | O17 | Spring Return |
| O2 | Case Stater | O18 | Pin Cotter |
| O3 | Collar | O19 | Washer Flat |
| O4 | Collar | O20 | Handle Starter |
| O5 | Drum Sheave | O21 | Cover |
| O6 | Pawl Drive | O22 | Guide Pope |
| O7 | Spring Stater | O23 | Seal Rubber |
| O8 | Plate Drive | O24 | Bolt |
| O9 | Spring Drive Pawel | O25 | Washer |
| O10 | Spring | O26 | Nut Square |
| O11 | Spring Return | O27 | Bolt With Washer |
| O12 | Circlip | O28 | Pipe Fule |
| O13 | Bolt | O29 | Damper |
| O14 | Wire Starter | O30 | Seal |
| O15 | Stopper | O31 | Label Warning |
| O16 | Plunger Starter Stop | O32 | Label Safety |
| CODE | PART NAME | CODE | PART NAME |
| P1 | Top Cowling Assy | P9 | Graphic Side1 |
| P2 | Seal | P10 | Graphic Side2 |
| P3 | Hook | P11 | Graphic Rear |
| P4 | Rivet | P12 | Graphic Rear |
| P5 | Holder Clamp Band | P13 | Seal Rubber |
| P6 | Rivet | P14 | Plate Clamp |
| P7 | Molding Air Duct | P15 | Mark Cowling |
| P8 | Screw Tapping | P16 | Mark Cowling |
| CODE | PART NAME | CODE | PART NAME |

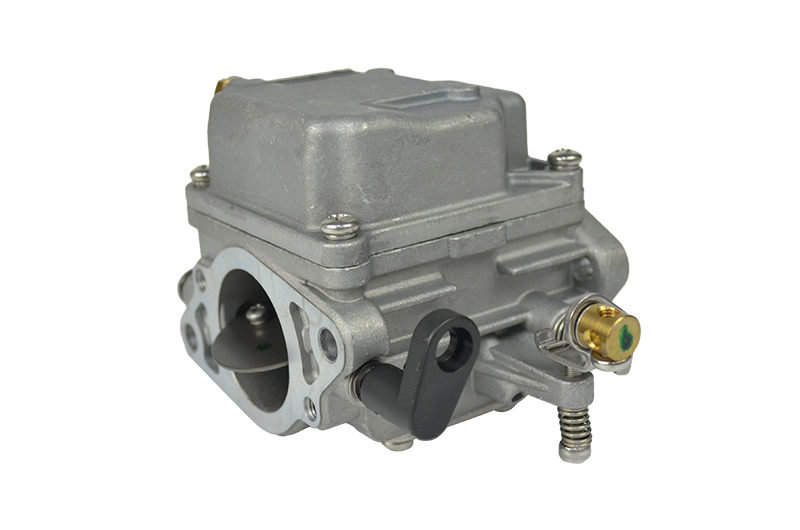

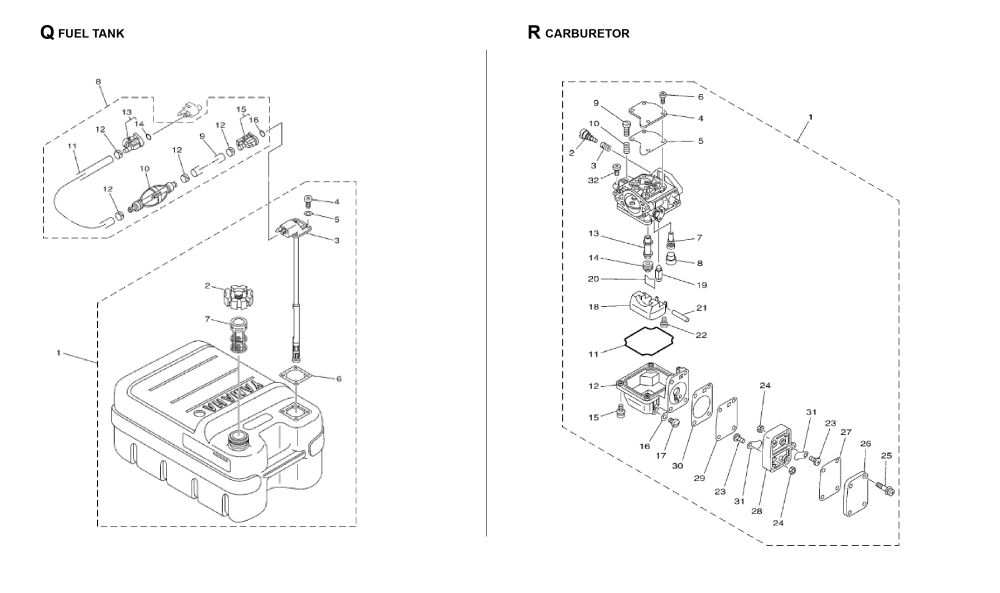

| Q1 | Fuel Tank Assy | R1 | Carburetor Assy |
| Q8 | Fuel Pipe Comp | — | |
