| CODE | PART NAME | CODE | PART NAME |

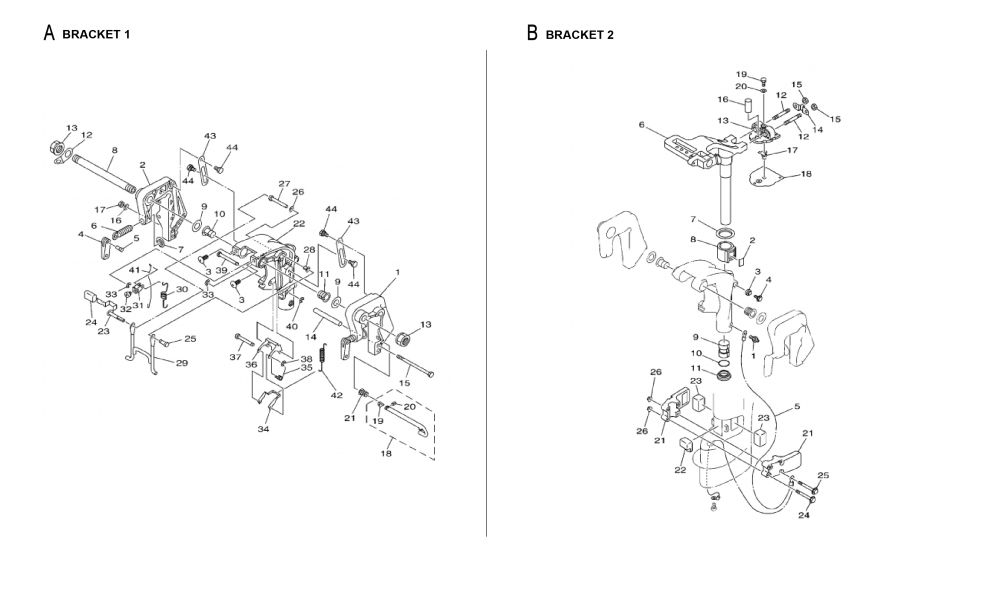

| A1 | Bracket Clamp1 | A24 | Cover |
| A2 | Bracket Clamp2 | A25 | Shaft, Stopper |
| A3 | Screw Pan Head M7*15 | A26 | Washer, Plate |
| A4 | Handle Transom Clamp | A27 | Collar |
| A5 | Pin Φ4*24 | A28 | Bush |
| A6 | Screw M14*2*48*L70 | A29 | Receiver Assy |
| A7 | Pad Transom Clamp | A30 | Spring, Tension |
| A8 | Bolt, Clamp Bracket | A31 | Lever, Tilt |
| A9 | Washer, Plate | A32 | Screw Pan Head M5*14 |
| A10 | Bush | A33 | Circlip |
| A12 | Plate Clamp Bracket | A34 | Plate, Tilt Lock |
| A13 | Nut Self Locking M22*1.75 | A35 | Spring, Torsion |
| A14 | Collar Φ6.2*Φ10.2*108.4 | A36 | Plate, Tilt Lock |
| A15 | Bolt M6*135 | A37 | Shaft, Tilt Lock |
| A16 | Washer Φ6.5Xφ12X1.5 | A38 | Circlip |
| A17 | Nut Hexagon M6 | A39 | Shaft, Reverse Lock |
| A18 | Tilt Rod Assy | A40 | Circlip |
| A19 | Plate Tilt Lock | A41 | Rod, Tilt Lock |
| A20 | Pin Spring Φ3X8 | A42 | Spring, Reverse Lock 1 |
| A21 | Spring Conical | A43 | Lever, Tilt Stop 1 |
| A22 | Bracket Swivel | A44 | Bolt |
| A23 | Tilt Lever Assy | — | |
| CODE | PART NAME | CODE | PART NAME |
| B1 | Nipple Grease | B15 | Nut Self-Locking M8 |
| B2 | Plate Friction | B16 | Collar |
| B3 | Seal Damper | B17 | Damper, Water Sea |
| B4 | Bolt Flange M6*20 | B18 | Gasket, Upper Casing |
| B5 | Wire Lead2 | B19 | Bolt M6*18 |
| B6 | Shaft Steering Pivot | B20 | 92900-08600 |
| B7 | Washer | B21 | Housing, Lower Mount Rubber 1 |
| B8 | Bushing Pivot Shaft | B21 | Housing, Lower Mount Rubber 2 |
| B9 | Bush | B22 | Mount Damper, Lower Front |
| B10 | O-Ring | B23 | Mount Damper, Lower Side |
| B11 | Bushing Pivot Shaft | B24 | Bolt M6*55 |
| B12 | Bolt, Stud | B25 | Bolt M6*75 |
| B13 | Mount Damper, Upper Side | B26 | Nut Self-Locking M6 |
| B14 | Plate | — | |

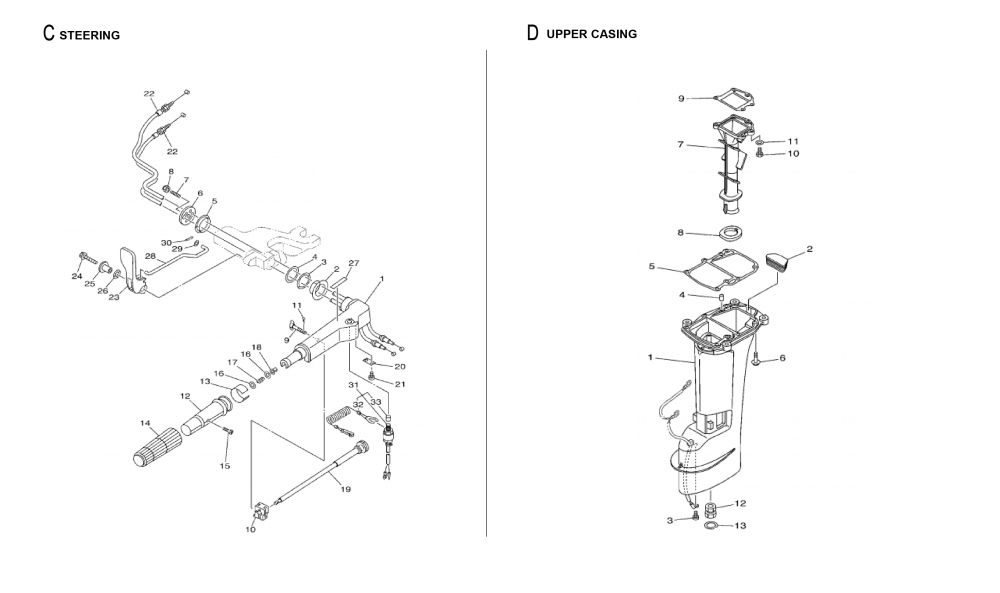

| CODE | PART NAME | CODE | PART NAME |
| C1 | Handle Steering | C18 | Bush |
| C2 | Bush | C19 | Lever Throttle |
| C3 | Bushing, Rubber | C20 | Stay |
| C4 | Bushing, Rubber | C21 | Screw, Pan Head |
| C5 | Bush | C22 | Throttle Cable Assy |
| C6 | Cover, Handle Steering | C23 | Handle Gear Shift |
| C7 | Nut Self-Locking M8 | C24 | Bolt M6*40 |
| C8 | Bolt, Stud | C25 | Collar |
| C9 | Bolt Friction Adjusting | C26 | Washer, Wave |
| C10 | Friction, Steering Handle Grip | C27 | 26 Indicator, Shift |
| C11 | Pin Cotter | C28 | Link, Shift Rod |
| C12 | Grip, Steering Handle | C29 | Washer Φ6.5Xφ12X1.5 |
| C13 | Indicator, Throttle | C30 | Clip |
| C14 | Rubber, Handle | C31 | Engine Stop Switch Assy. |
| C15 | Screw | C32 | Cap |
| C16 | Washer, Plate | C33 | Stopper |
| C17 | Spring Compression | — | |
| CODE | PART NAME | CODE | PART NAME |
| D1 | Casing Upper | D8 | Seal |
| D2 | Plate, Seal Damper | D9 | Gasket Exhaust Manifold |
| D3 | Screw Pan Head M4*6 | D10 | Bolt M6*20 |
| D4 | Pin Dowel | D11 | Washer Φ6.5Xφ12X1.5 |
| D5 | Gasket Upper Casing | D12 | Bushing Drive Shaft |
| D6 | Bolt M8*30 | D13 | |
| D7 | Manifold Ext1 | D14 | Circlip Φ32 |

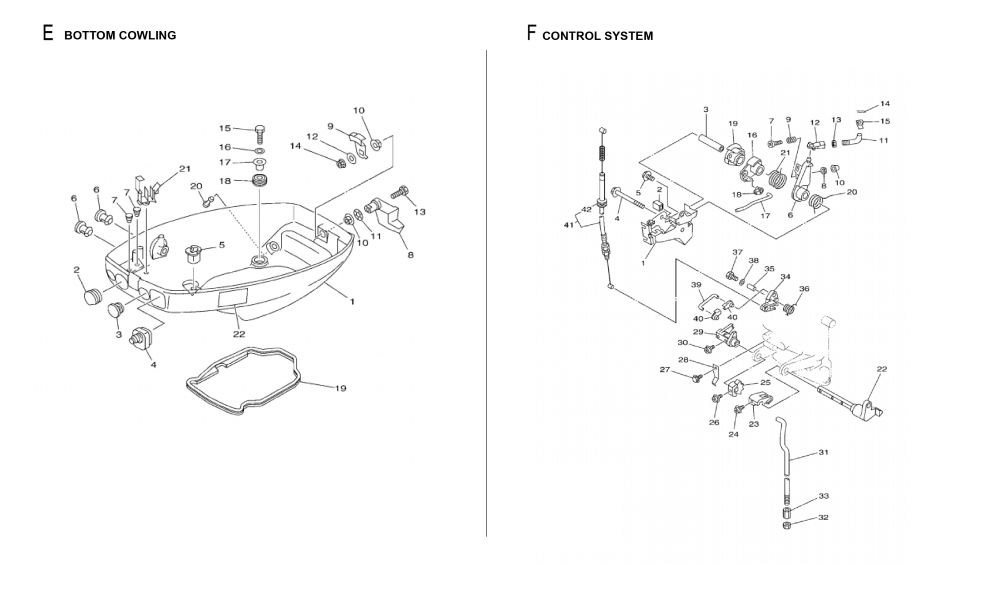

| CODE | PART NAME | CODE | PART NAME |
| E1 | Cowling Bottom | E12 | Washer Φ6.5Xφ16X1.5 |
| E2 | Grommet | E13 | Bolt M6*25 |
| E3 | Grommet | E14 | Nut Self-Locking M6 |
| E4 | Grommet | E15 | Bolt M6*25 |
| E5 | Grommet | E16 | Washer Φ6.5Xφ12X1.5 |
| E6 | Grommet | E17 | Collar |
| E7 | Grommet | E18 | Grommet |
| E8 | Lever Clamp | E19 | Rubber Seal1 |
| E9 | Lever Clamp | E20 | Nipple Hose |
| E10 | Bush | E21 | Clamp |
| E11 | Washer Wave Φ12 | E22 | Label Caution |
| CODE | PART NAME | CODE | PART NAME |
| F1 | Stay, Throttle Wire | F22 | Arm, Shift Rod |
| F2 | Cap | F23 | Lever, Shift Rod |
| F3 | Collar Φ6.5*Φ12*49 | F24 | Bolt M5*25 |
| F4 | Bolt M6*65 | F25 | Lever, Shift Rod |
| F5 | Bolt M6*12 | F26 | |
| F6 | Lever Free Accel | F27 | Bolt M6*12 |
| F7 | Screw Pan Head M6*30 | F28 | Spring |
| F8 | Nut Hexagon M6 | F29 | Bushing, Shift Rod Lever |
| F9 | Spring, Compression | F30 | |
| F10 | Cap | F31 | Rod Shift |
| F11 | Joint, Link | F32 | Nut Hexagon M6 |
| F12 | Joint, Link | F33 | Connector Shift Rod |
| F13 | Nut Hexagon M6 | F34 | Arm |
| F14 | Clip | F35 | Collar Φ6.5*Φ8*11 |
| F15 | Washer, Lock 1 | F36 | Spring Torsion |
| F16 | Lever, Free Accel | F37 | Bolt M6*20 |
| F17 | Link Accel | F38 | Washer Φ6.5Xφ12X1.5 |
| F18 | Joint, Choke Lever | F39 | Link |
| F19 | Pulley | F40 | Joint Choke Lever |
| F20 | Spring, Torsion | F41 | Cable Comp Starter Stop |
| F21 | Spring Torsion | F42 | Grommet |

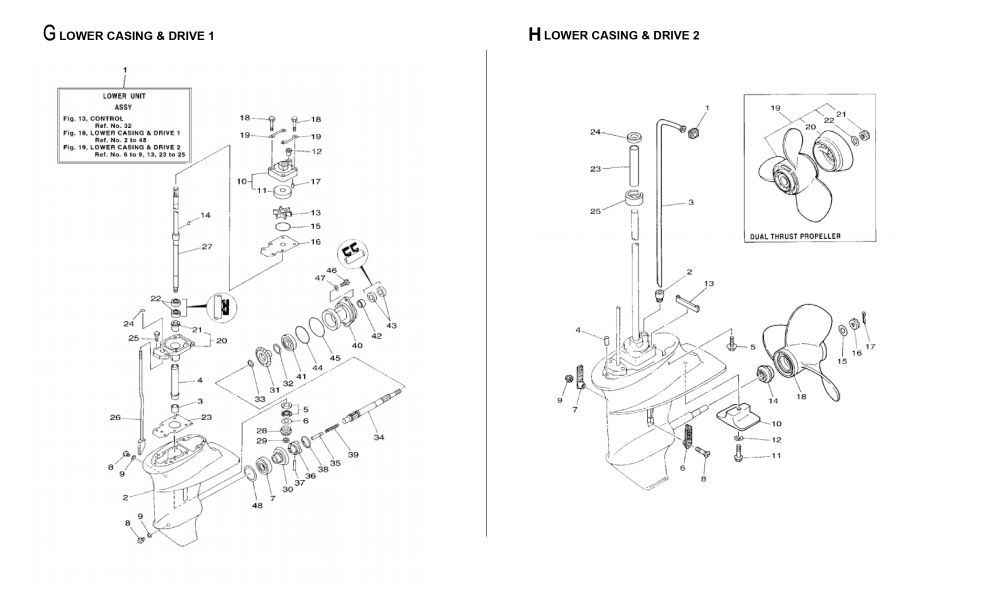

| CODE | PART NAME | CODE | PART NAME |
| G1 | Lower Unit Assy | G24 | O-Ring |
| G2 | Casing Lower | G25 | Bolt M8*25 |
| G3 | Bearing Nsk F-1420 | G26 | Shift Cam Assy |
| G4 | Sleeve Drive Shaft | G27 | Drive Shaft Comp |
| G5 | Bearing | G28 | Pinion（13T） |
| G6 | Shim (T:1.13Mm) | G29 | Nut M8*1*5 |
| G6 | Shim (T:1.20Mm) | G30 | Gear1（27T） |
| G7 | Bearing Φ25*Φ52*16.25 | G31 | Gear2（27T） |
| G8 | Plug Straight Screw | G32 | Washer Plate |
| G8 | Plug Drain | G33 | Washer Plate |
| G9 | Gasket | G34 | Shaft Propeller |
| G10 | Housing Water Pump | G35 | Plunger Shift |
| G11 | Insert Cartridge | G36 | Clutch Dog |
| G12 | Damper Water Seal1 | G37 | Pin Strsight Φ5*30 |
| G13 | Impeller | G38 | Ring Cross Pin |
| G14 | Key Woodruff | G39 | Spring Compression |
| G15 | O-Ring | G40 | Cap Lower Casing |
| G16 | Outer Plate Cartridge | G41 | Bearing Φ25*Φ47*12 |
| G17 | Pin Dowel | G42 | Bearing Φ17*Φ23*12 |
| G18 | Bolt M8*45 B=25 | G43 | Oil Seal Φ17*Φ30*6 |
| G19 | Plate | G44 | O-Ring |
| G20 | Housing Bearing | G45 | O-Ring |
| G21 | Bushing Drive Shaft | G46 | Bolt M6*20 |
| G22 | Oil Seal Φ20*Φ30*6 | G47 | Washer Φ6.5Xφ12X1.5 |
| G23 | Packing Lower Casing | G48 | Washer Plate |
| CODE | PART NAME | CODE | PART NAME |

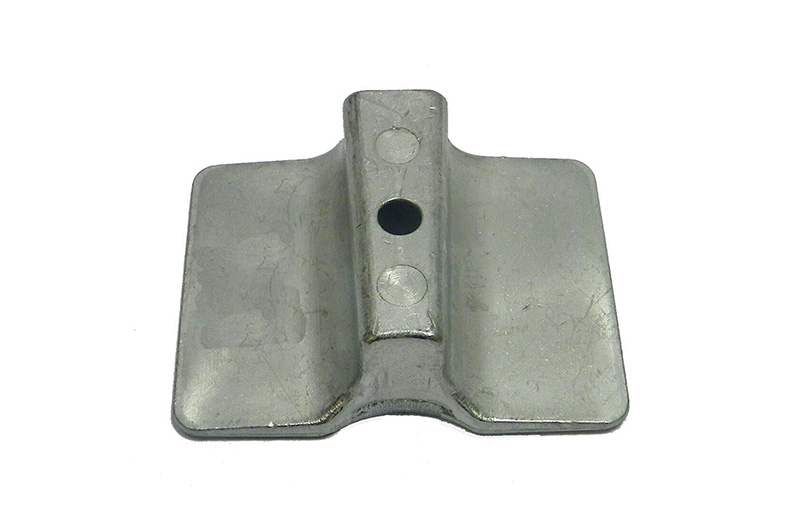

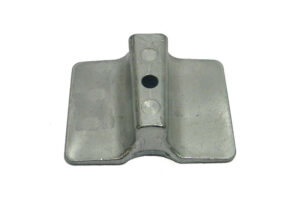

| H1 | Damper, Water Seal 1 | H10 | Anode |
| H2 | Rubber, Water Seal 4 | H11 | Bolt Flange M6*30 B=20 |
| H3 | Tube Water1 | H12 | Washer Internal Tooth |
| H4 | Pin Dowel | H13 | Damper, Seal |
| H5 | Bolt M8*30 | H14 | Spacer1 |
| H6 | Cover, Water Inlet 1 | H15 | Washer Plain Φ10.5*Φ30*2.5 |

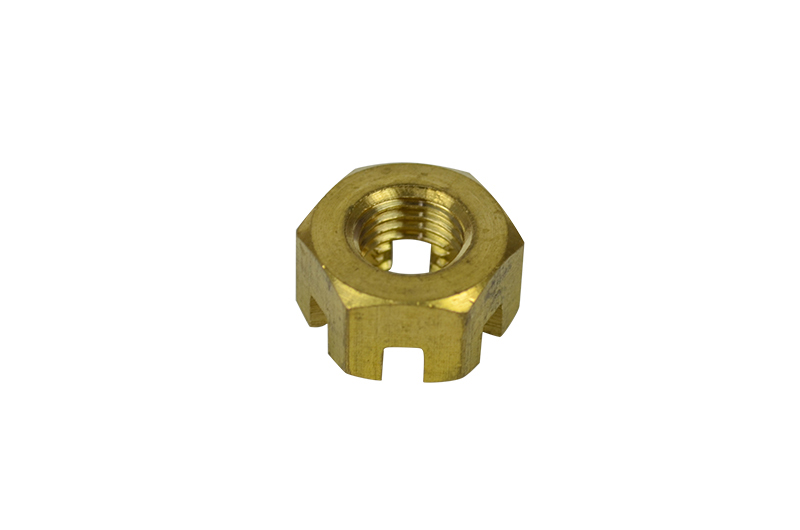

| H7 | Cover, Water Inlet 2 | H16 | Nut Castle M10*1.25 |
| H8 | Screw M5*20 | H17 | Pin Cotter |
| H9 | Nut Self-Locking M5 | H18 | Propeller |
| CODE | PART NAME | CODE | PART NAME |

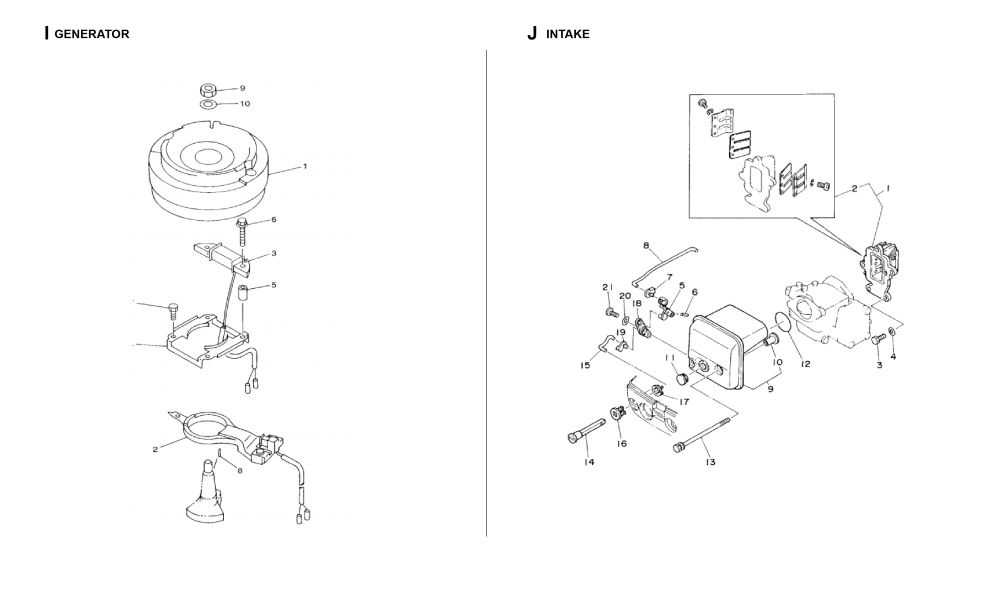

| I1 | Rotor Assy | I6 | Bolt, Flange |

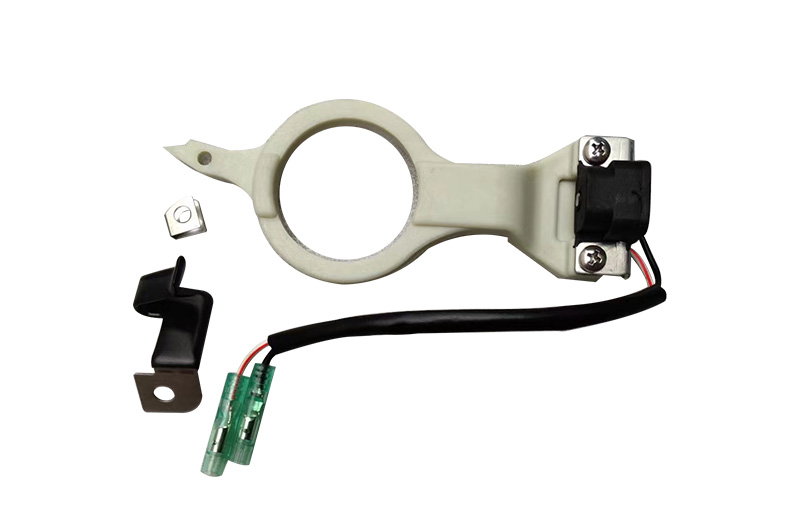

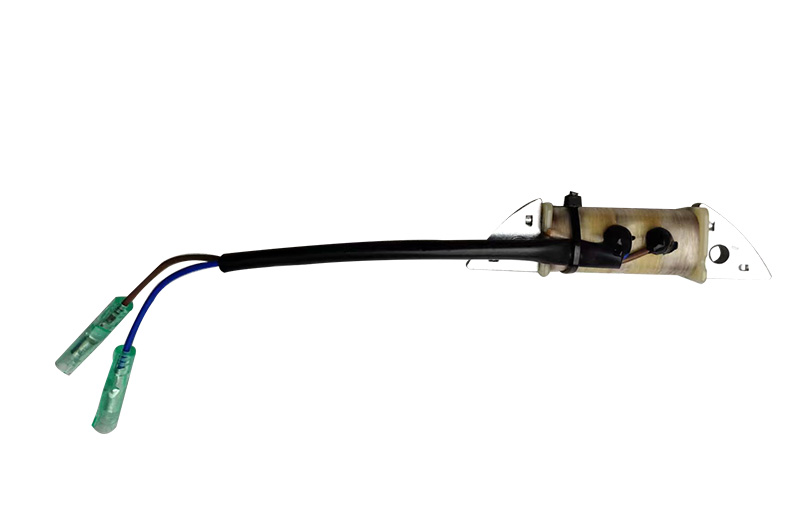

| I2 | Coil, Pulser | I7 | Bolt M6*16 |
| I3 | Coil Charge | I8 | Key Woodruff |
| I4 | Retainer, Magneto Base | I9 | Nut M12 |
| I5 | Bolt M6*30 | I10 | Washer Plate |
| CODE | PART NAME | CODE | PART NAME |

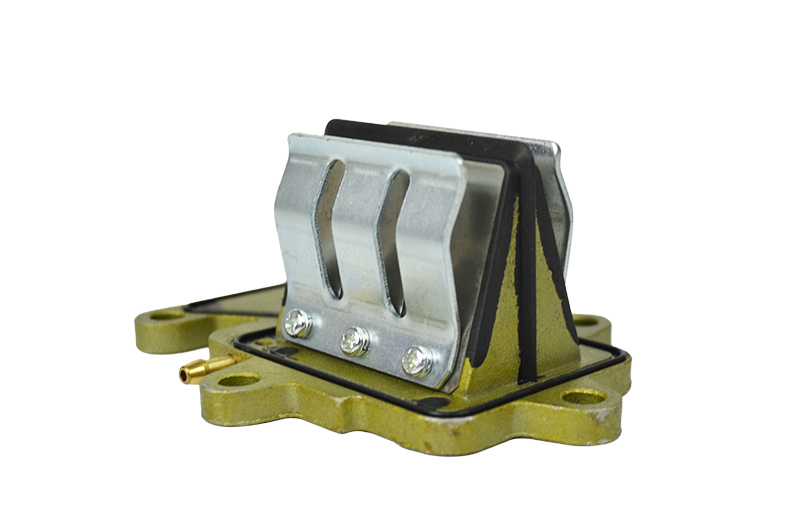

| J1 | Reed Valve Assy | J11 | Grommet |
| J3 | Bolt M6*20 | J12 | O Ring |
| J4 | Washer Φ6.5Xφ12X1.5 | J13 | Bolt M6*95 |
| J5 | Lever, Choke | J14 | Knob Choke |
| J6 | Pin Spring Φ2X12 | J15 | Rod, Choke 1 |
| J7 | Joint Choke Lever | J16 | Grommet |
| J8 | Knob Choke | J17 | Grommet2 |
| J9 | Silencer Assy. Intake | J18 | Lever, Choke 1 |
| J10 | Collar | J19 | Joint Choke Lever |
| CODE | PART NAME | CODE | PART NAME |

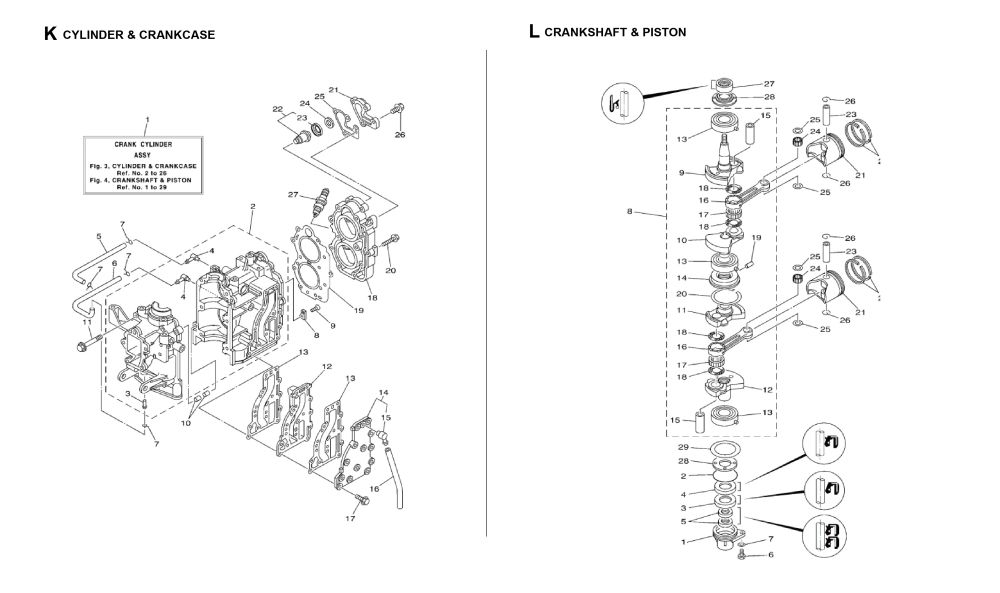

| K1 | Crank Cylinder Assy | K14 | Outer Cover Exhaust |
| K2 | Crankcase Assy | K15 | Nipple Hose |
| K3 | Pipe Joint | K16 | Hose（L300） |
| K4 | Pipe Joint | K17 | Bolt M6*30 |
| K5 | Hose（L220） | K18 | Head Cylinder 1 |
| K7 | Clip Φ6 | K19 | Gasket Cylinder Head1 |
| K8 | Anode | K20 | Bolt Flange M7*38 |
| K9 | Screw Countersunk | K21 | Cover Thermostat |
| K10 | Pin Dowel | K22 | Thermostat |
| K11 | Bolt M8*60 | K25 | Gasket Cover |
| K12 | Inner Cover Exhaust | K26 | Bolt M6*25 |
| K13 | Gasket Exhaust Inner Cover | K27 | Plug Spark （Ngk） |
| CODE | PART NAME | CODE | PART NAME |
| L1 | Housing Oil Seal | L16 | Rod Connecting |
| L2 | O-Ring | L17 | Bearing |
| L3 | Oil Seal Φ25*Φ38*7 | L18 | Washer |
| L5 | Oil Seal Φ13*Φ25*6 | L20 | Circlip |
| L6 | Bolt M6*16 | L21 | Piston |
| L7 | Washer Φ6.5Xφ12X1.5 | L22 | Piston Ring |

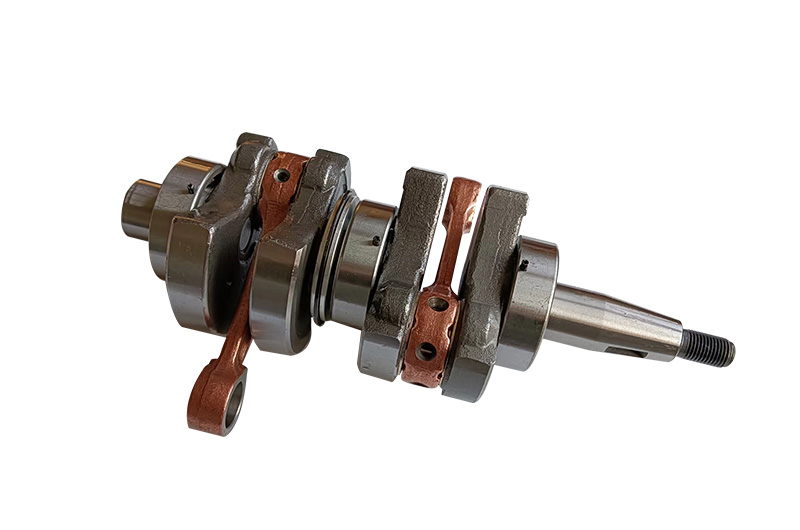

| L8 | Crankshaft Assy | L23 | Pin Piston |
| L9 | Crank1 | L24 | Pin Dowel |
| L10 | Crank2 | L25 | Washer Plate |
| L11 | Crank3 | L26 | Clip Piston Pin |
| L12 | Crank4 | L27 | Oil Seal Φ23*Φ36*13 |
| L13 | Bearing Φ25*Φ52*15 | L28 | Spacer |
| L14 | Seal Labyrinth | L29 | Washer Plate |
| L15 | Pin Crank1 | — | |
| CODE | PART NAME | CODE | PART NAME |
| M1 | Fule Pipe Joint Comp | M8 | Nut M8 |
| M2 | Bolt M6*20 | M9 | Pipe Φ9Xφ5Xl180 |
| M3 | Washer Φ6.5Xφ12X1.5 | M10 | Clip Φ9 |
| M4 | Filter Assy. | M11 | Bracket Filter |
| M5 | Element Filter | M12 | Bolt M6*12 |
| M6 | Cup Filter | M13 | Plate |
| M7 | O -Ring | — | |
| CODE | PART NAME | CODE | PART NAME |

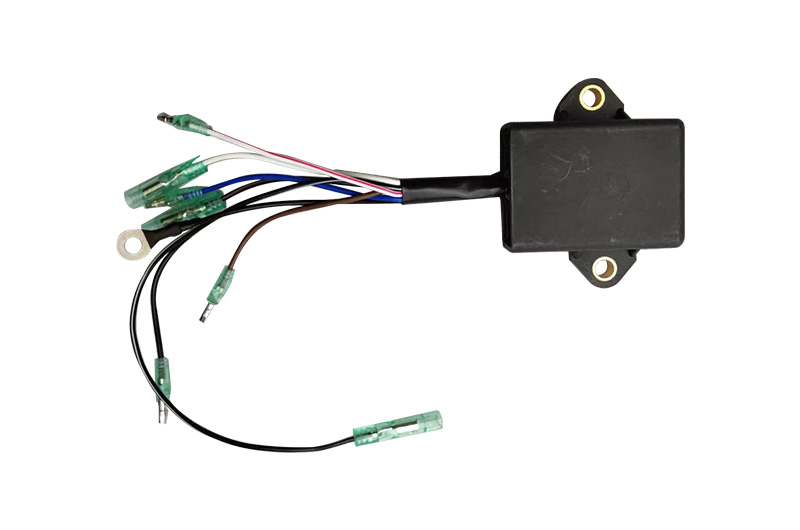

| N1 | Cdi Unit Assy | N8 | Washer Φ6.5Xφ12X1.5 |
| N2 | Bolt M6*30 | N9 | Grommet |
| N3 | Washer Φ6.5Xφ16X1.5 | N10 | Cap Plug |
| N4 | Clamp | N11 | Clamp |
| N5 | Clamp | N12 | Bolt M6*12 |

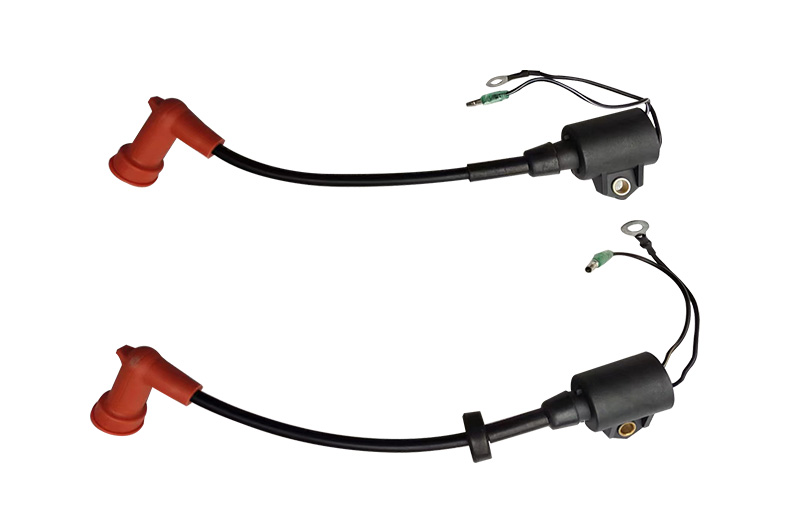

| N6 | Ignition Coil Assy | N13 | 12 Wire, Earth Lead |
| N7 | Bolt M6*16 | N14 | Bolt M6*12 |
| CODE | PART NAME | CODE | PART NAME |
| O1 | Stater Assy. | O15 | Collar |
| O2 | Case Stater | O16 | Screw Tapping St4.8X10 |
| O3 | Guide, Rope | O17 | Wire Starter L1800Mm |
| O4 | Collar | O18 | Handle Starter |
| O5 | Drum Sheave | O19 | Cover |
| O6 | Pawl Drive | O20 | Stopper |
| O7 | Spring Stater | O21 | Plunger Starter Stop |
| O8 | Bush | O22 | Spring Return |
| O9 | Plate Drive | O23 | Pin Cotter |
| O10 | Spring Drive Pawel | O24 | Washer Flat |
| O11 | Spring | O25 | Seal, Rubber |
| O12 | Spring Return | O26 | Bolt M6*20 |
| O13 | Circlip Φ8 | O27 | Washer Φ6.5Xφ12X1.5 |
| O14 | Bolt M6*16 | O28 | Label Warning |
| CODE | PART NAME | CODE | PART NAME |
| P1 | Top Cowling Assy | P10 | Washer, Spring |
| P2 | Top Cowling W/O Graphics |
P11 | Graphic Side1 |
| P3 | Seal | P12 | Graphic Side2 |
| P4 | Hook | P13 | Graphic Rear |
| P5 | Screw Pan Head M4*12 | P14 | Graphic Side2 |
| P6 | Holder Clamp Band | P15 | |
| P7 | Screw Pan Head M4*12 | P16 | Nut Self-Locking M4 |
| P8 | Molding, Air Duct | P17 | Graphic Two Stroke |
| P9 | Screw Pan Head M6*16 | — | |
| CODE | PART NAME | CODE | PART NAME |
| Q1 | Fuel Tank Assy(24L) | Q8 | Fuel Pipe Comp. |
| CODE | PART NAME | CODE | PART NAME |

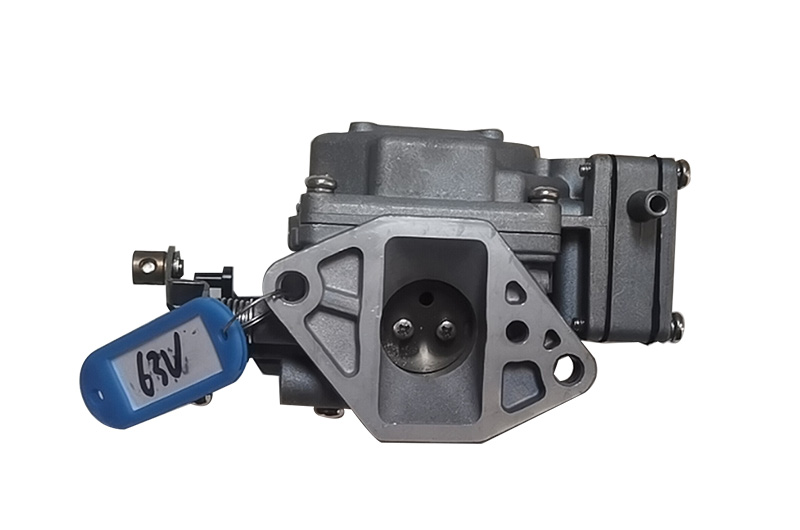

| R1 | Carburetor Assy | R17 | Screw, Drain |
| R2 | Screw, Pilot | R18 | Float |
| R3 | Spring | R19 | .Valve, Needle |
| R4 | Plate | R20 | Clip |
| R5 | Gaske | R21 | Pin, Float Arm |
| R6 | Screw Pan Head M4*10 | R22 | Screw Pan Head M4*8 |
| R7 | Jet (#48) | R23 | Screw Pan Head M3*6 |
| R8 | Rubber Cap | R24 | Nut Hexagon M3 |
| R9 | Screw, Stop | R25 | Screw, With Washer |
| R10 | Spring, Compression | R26 | Cover |
| R11 | Gasket, Float Chamber | R27 | Diaphragm |
| R12 | Body, Float Chamber | R28 | Body 1 |
| R13 | Jet, Needle | R29 | Diaphragm |
| R14 | Jet, Main (#110) | R30 | Gasket, Fuel Pump 1 |
| R15 | Screw, With Washer | R31 | Valve, Check |
| R16 | Washer, Spring | R32 | Screw Pan Head M4*6 |
