NTB430D Brush Cutter Parts

The precision machined Craftop NTB430D spare parts are durable:

Engine and crankshaft body made of lightweight aluminum alloy with CNC machining for accuracy.

Excellent grade nylon reinforcement for plastic parts with good thermal resistance and strength.

Easy start ignition system for fast starting and labor-saving operation.

U-shaped handlebar designed for ergonomic use and even load distribution to reduce fatigue.

90° rotatable handlebar for easy retraction.

Cutting rod equipped with thickened shock absorber sleeve for reduced vibration transmission and comfortable operation.

High precision and strict tolerance control in the gearbox for a service life of over 200 hours.

Exploded View Of The Whole Machine

Important Spare Parts

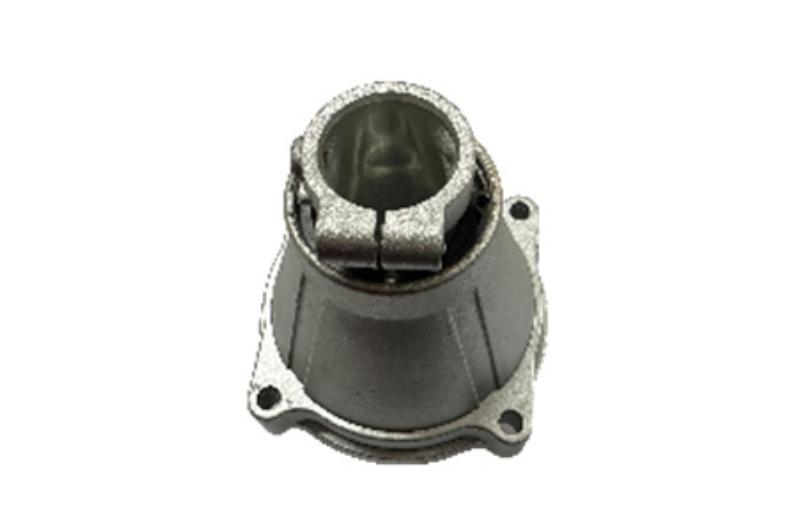

1.Connection Plate Assembly (bright silver) 26 or 28

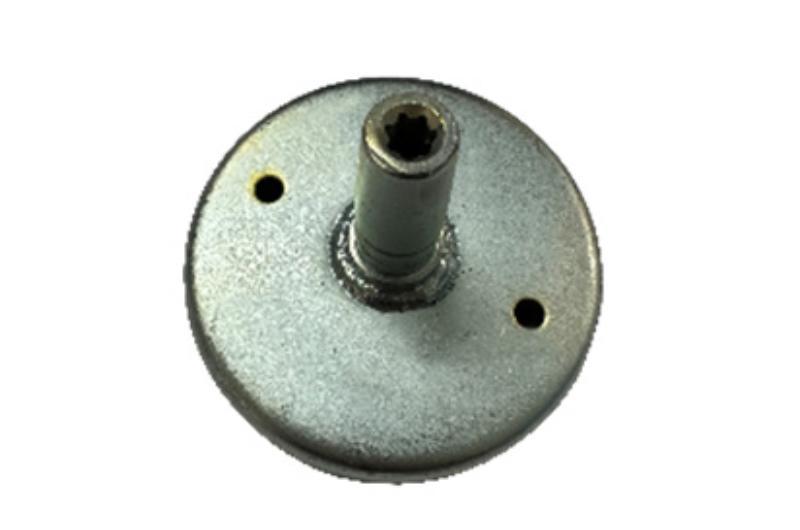

2.Passive Disc Welding (nine teeth or seven teeth)

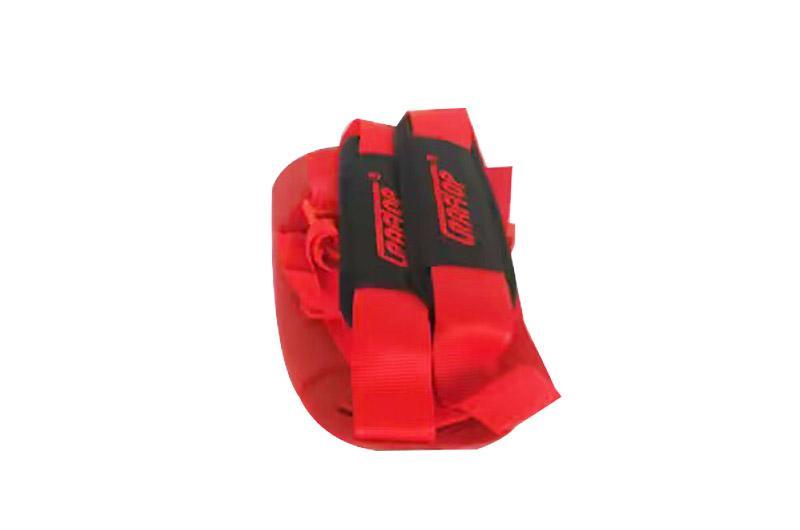

3.Strap Combination (shoulder hard shell)

4.Two-Section Handle Assembly

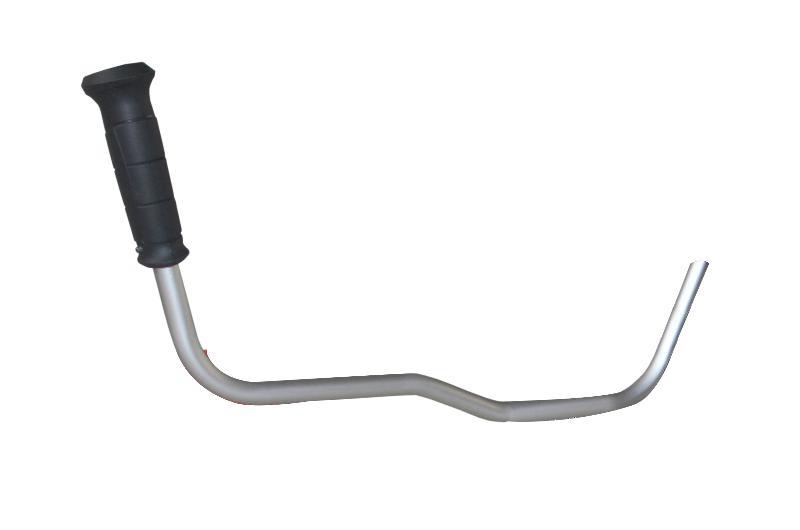

5.Stihl Handlebar Assembly

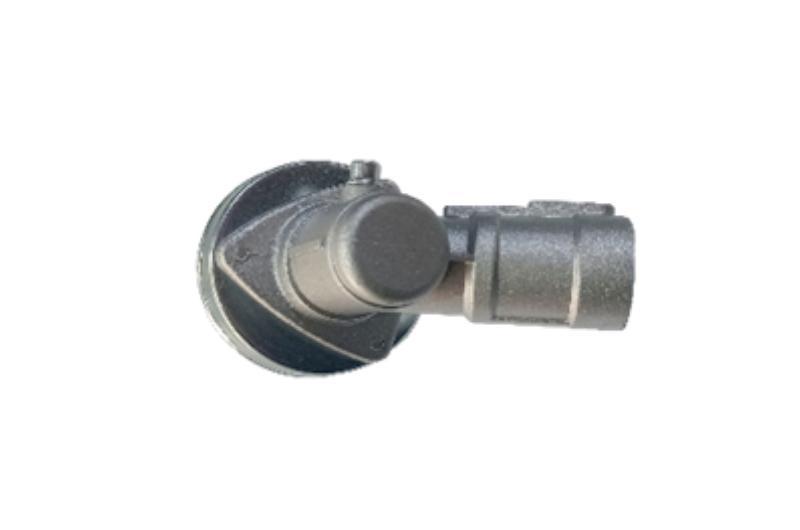

6.Gearbox Assembly (bright silver) (26 or 28) (9 teeth)

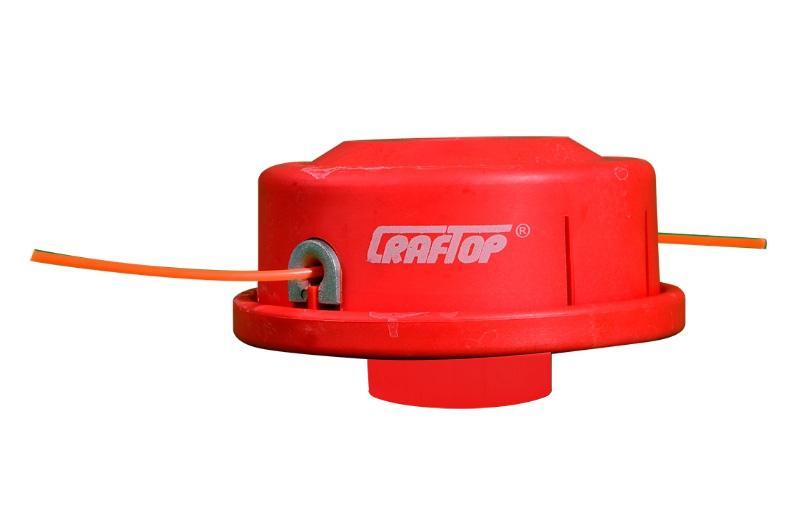

7.Turfing Head Assembly (rope type)

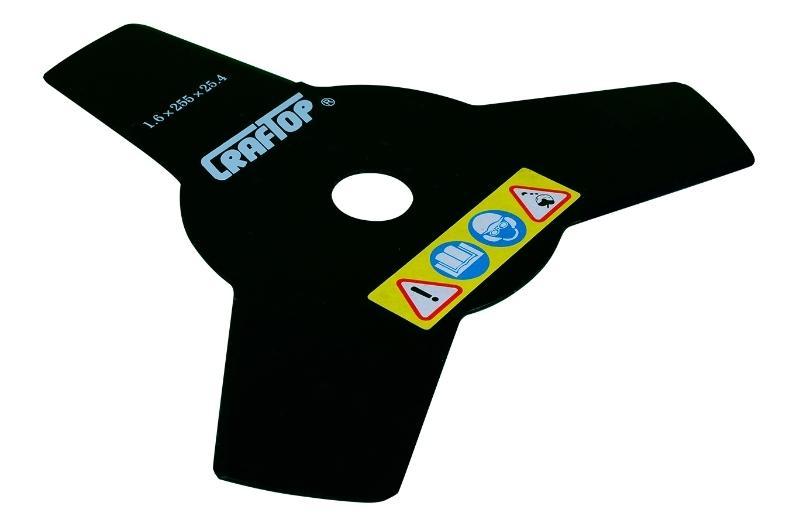

8.Three-Tooth Blade

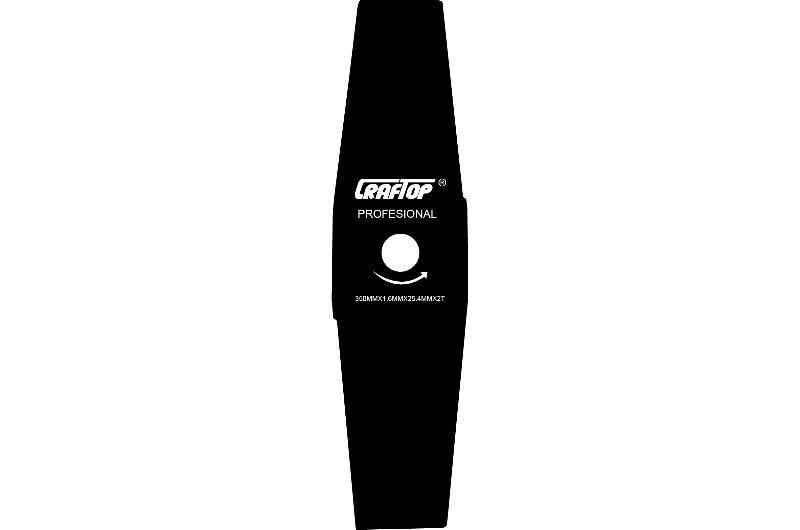

8.Two-Tooth Blade

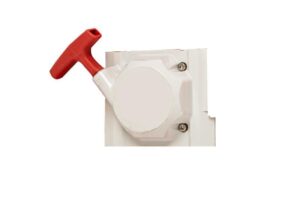

1.Starter Assembly (easy start+normal startup)

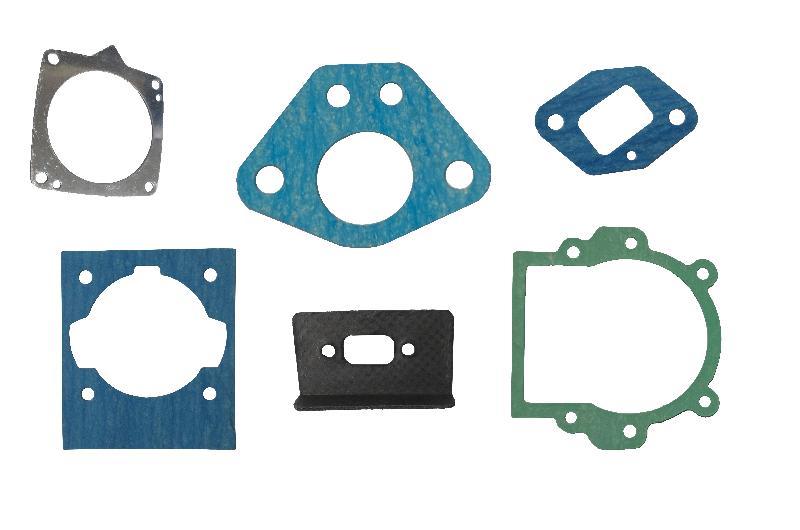

2. Gasket Assembly

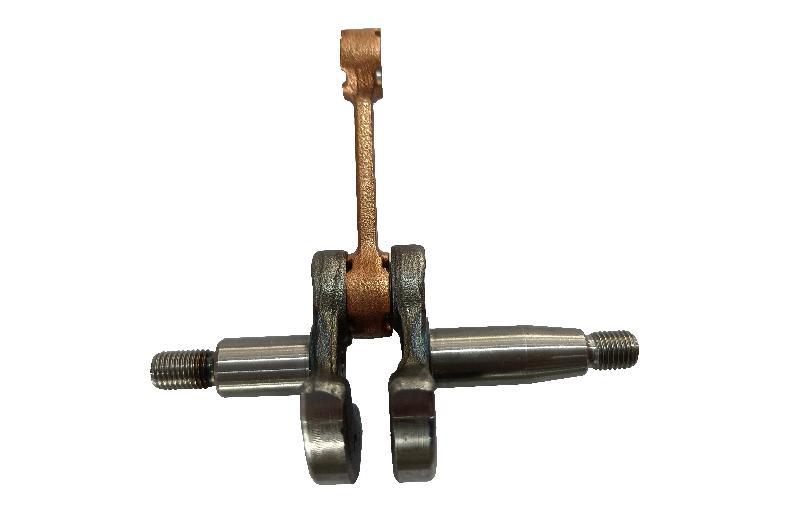

3. Crankshaft Connecting Rod Assembly

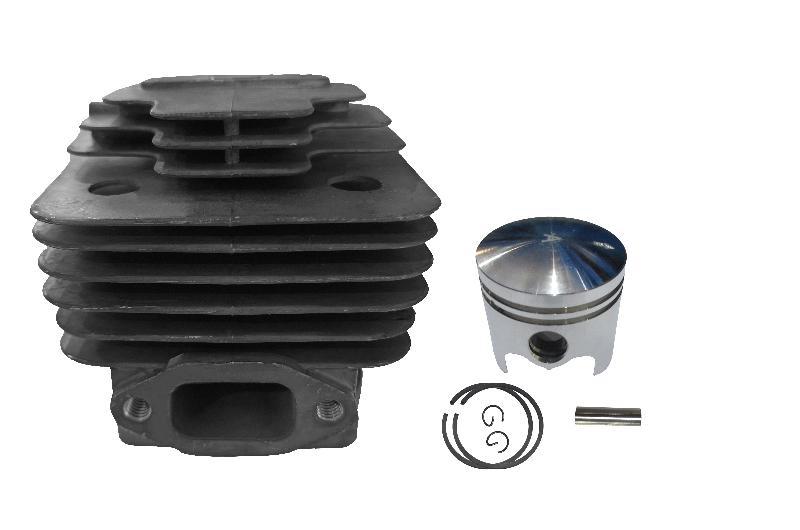

4.Cylinder and Piston Group

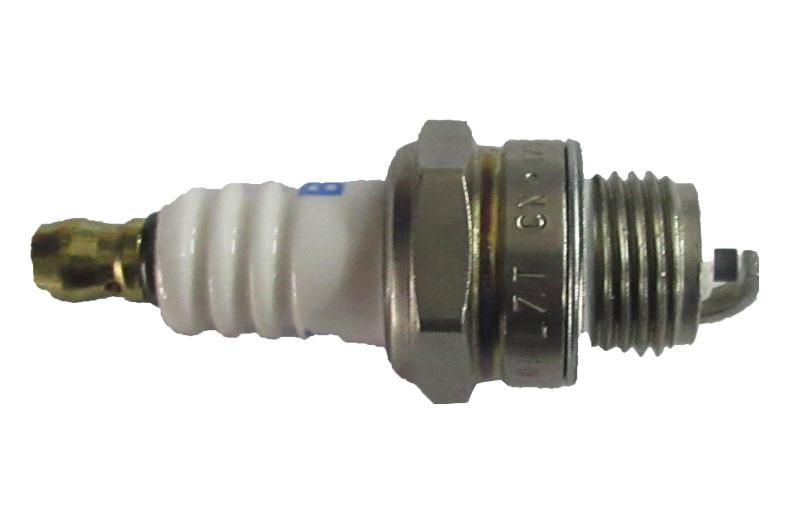

5.Spark Plug

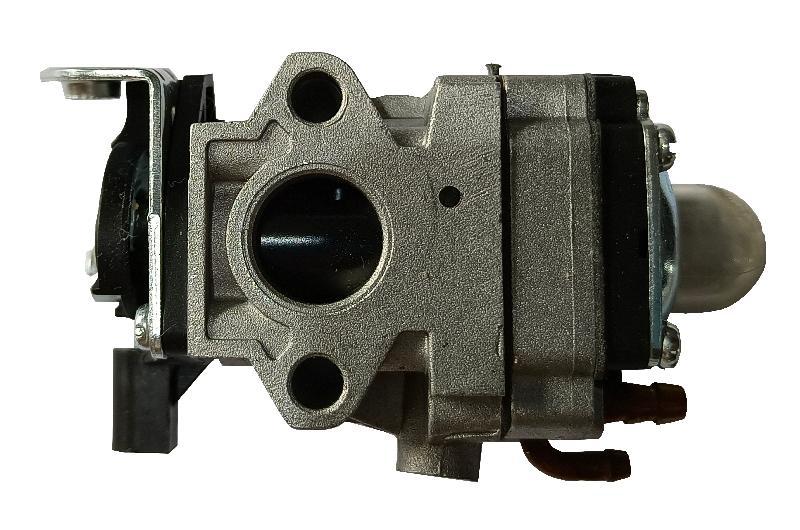

6. Carburetor

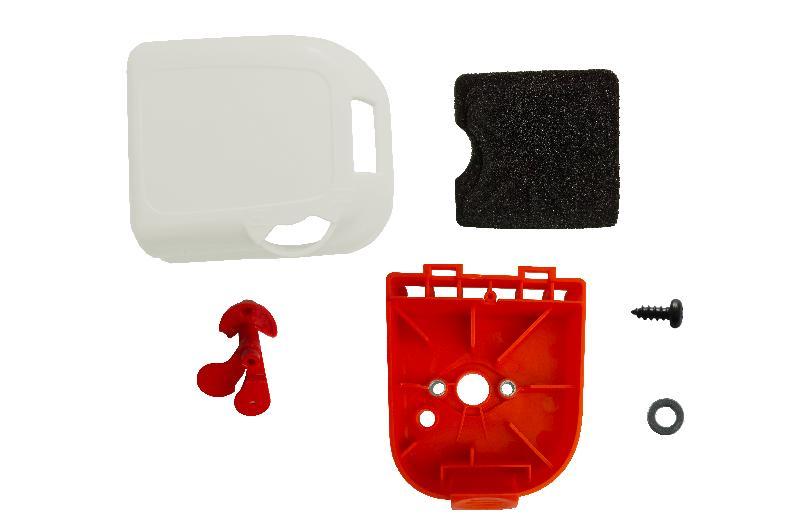

7.Air Filter Assembly

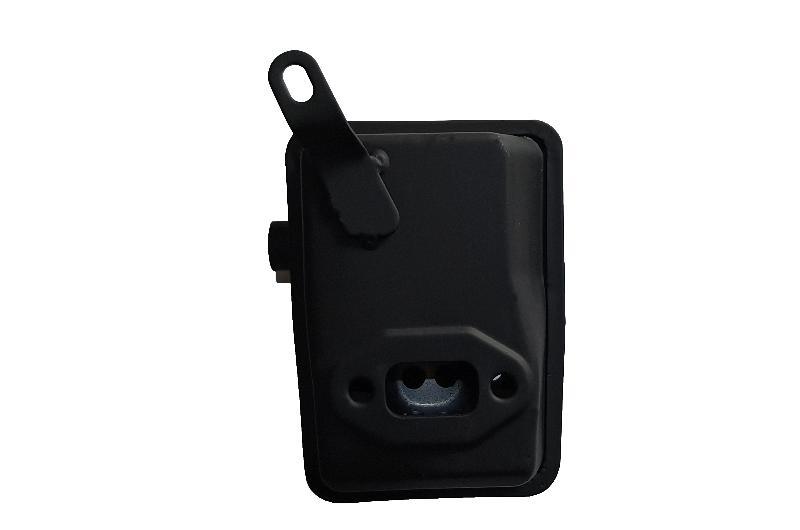

8. Silencer

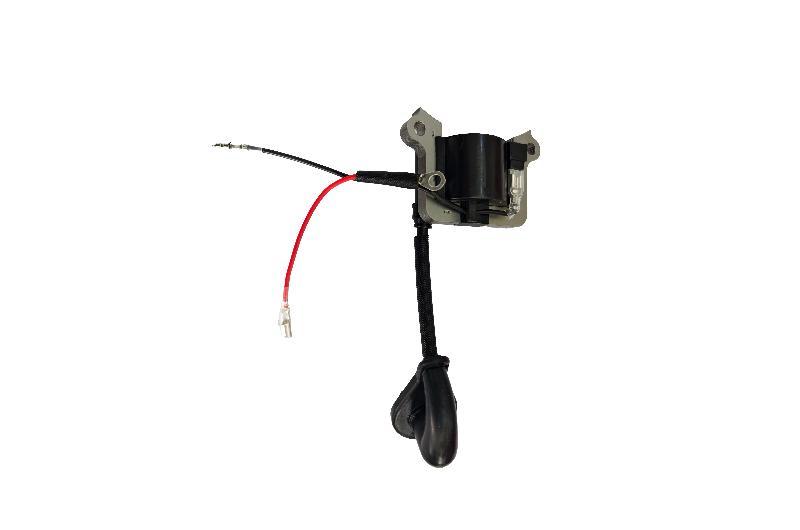

9.Ignition Assembly

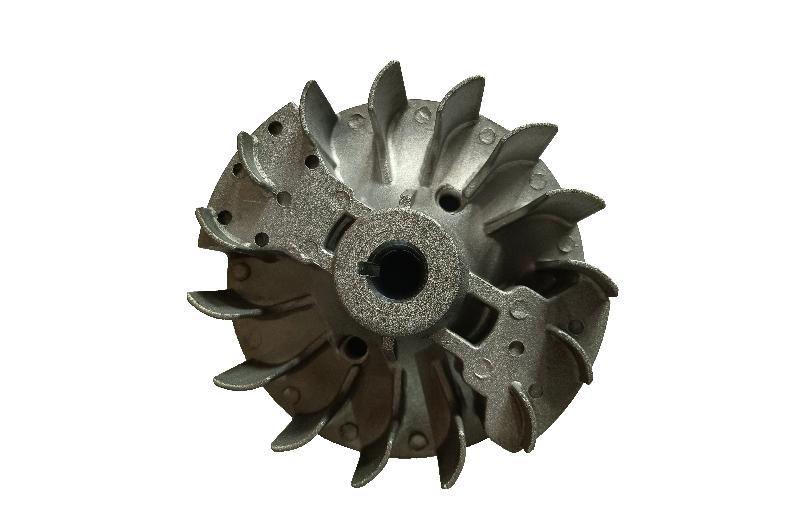

10.Flywheel

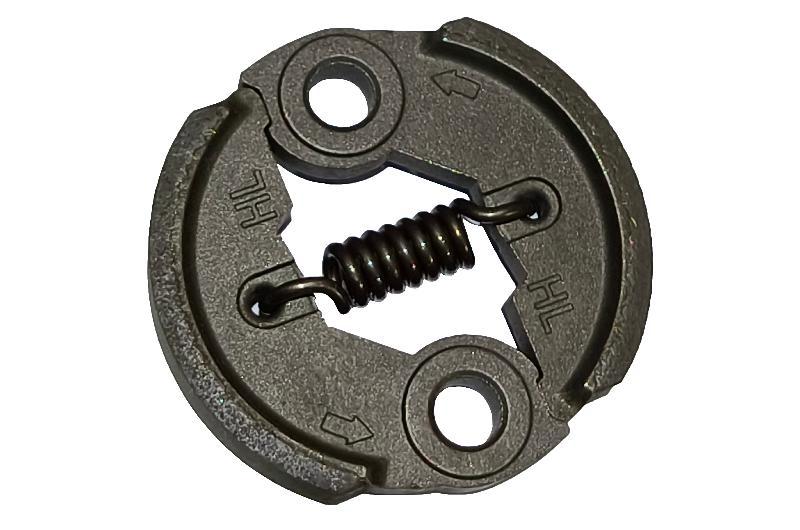

11.Clutch Assembly

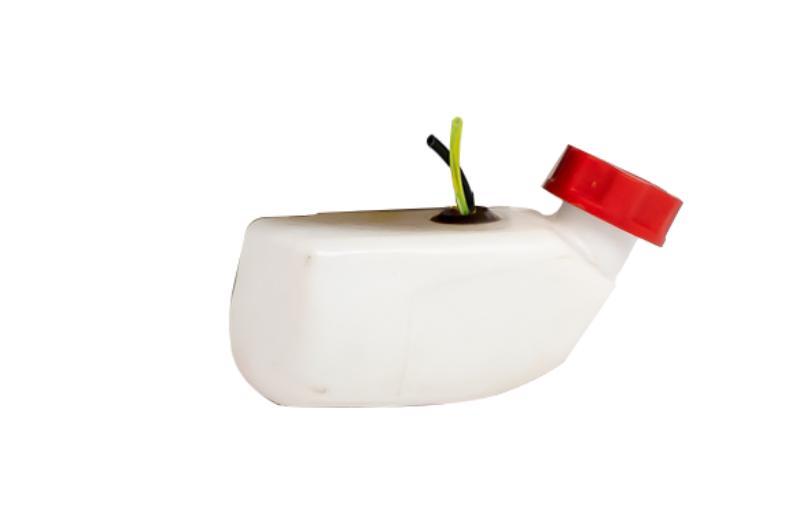

12.Oil Can Assembly

Other Spare Parts

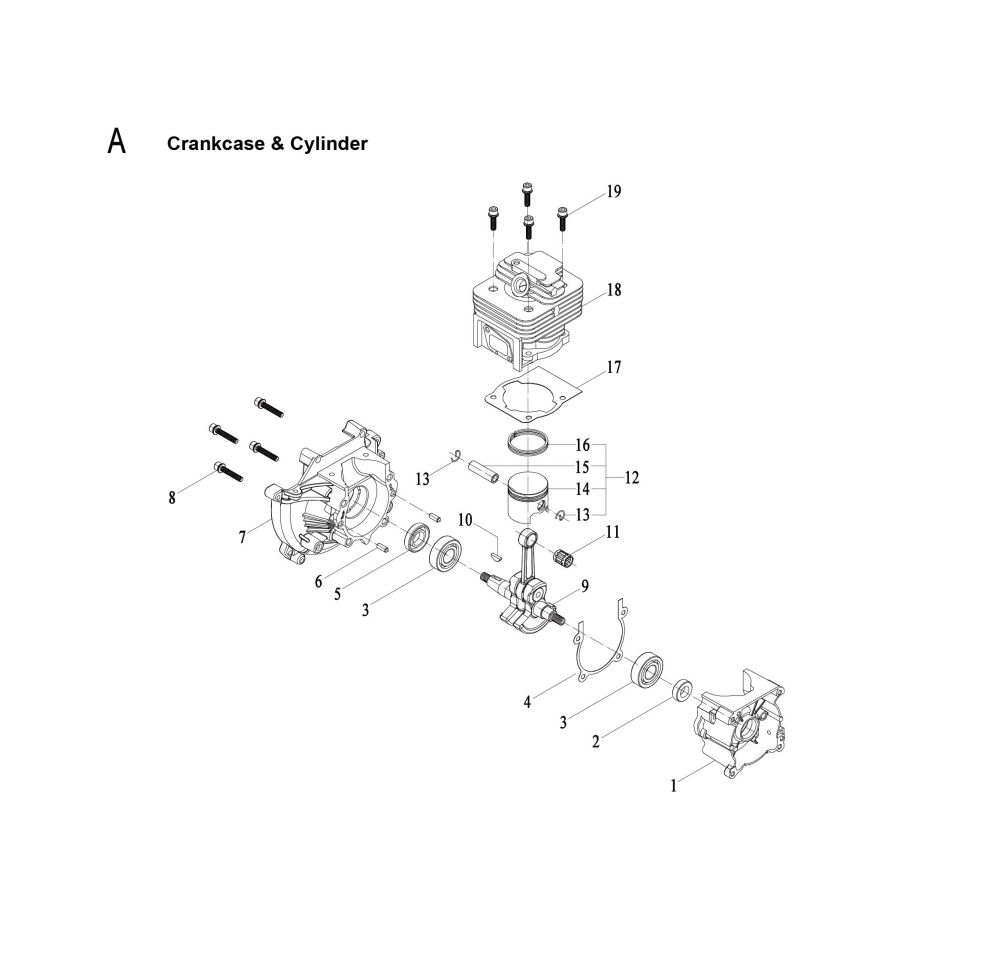

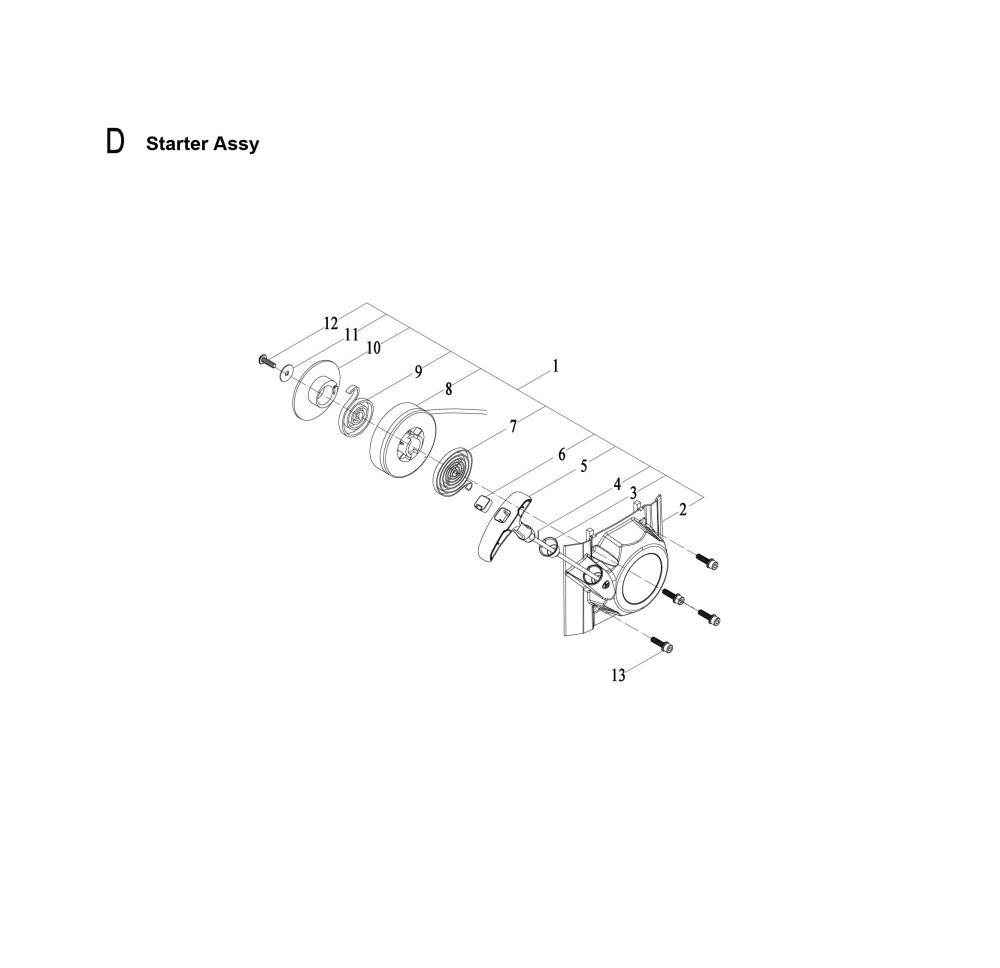

A Crankcase & Cylinder		D Starter Assy
Code	Part Name	Code	Part Name
A1	Rear Crankcase	D1	Starter Assy
A2	Oil Seal(S)	D2	Starter Cover
A3	Ball Bearing	D3	Bushing
A4	Gasket, Crankcase	D4	Rope
A5	Oil Seal(L)	D5	Grip, Starter
A6	Pin	D6	Grip Cover, Starter
A7	Front Crankcase	D7	Return Spring
A8	Screw, Crankcase	D8	Pulley, Starter
A9	Crankshaft	D9	Buffer Spring
A10	Woodruff Key	D10	Starter Reel
A11	Needle Bearing, Piston	D11	Washer
A12	Piston Assy	D12	Screw ST4.8×16F
A13	Circlip	D13	Screw

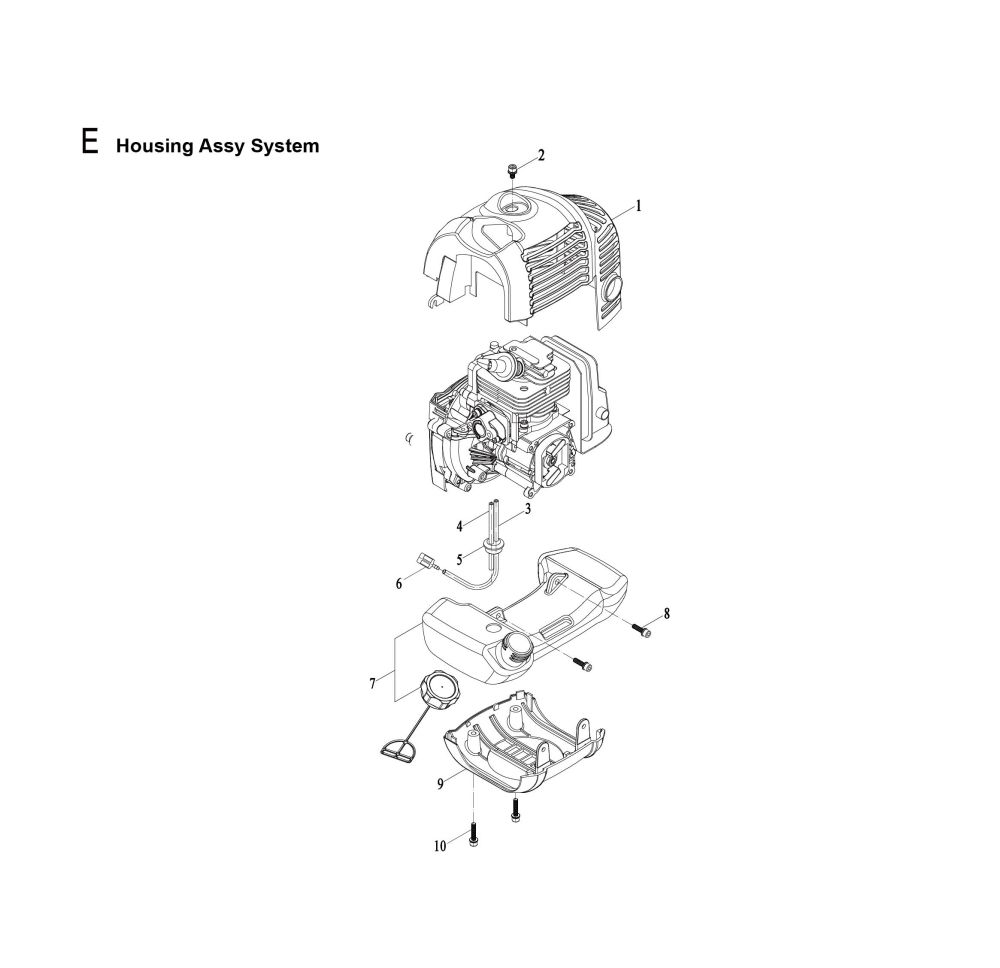

A14	Piston	E Housing Assy System
A15	Piston Pin	Code	Part Name
A16	Piston Rings	E1	Cylinder Cover
A17	Gasket, Cylinder	E2	Screw, Cover
A18	Cylinder	E3	Inlet Fuel Pipe
A19	Screw, Cylinder	E4	Return Fuel Pipe

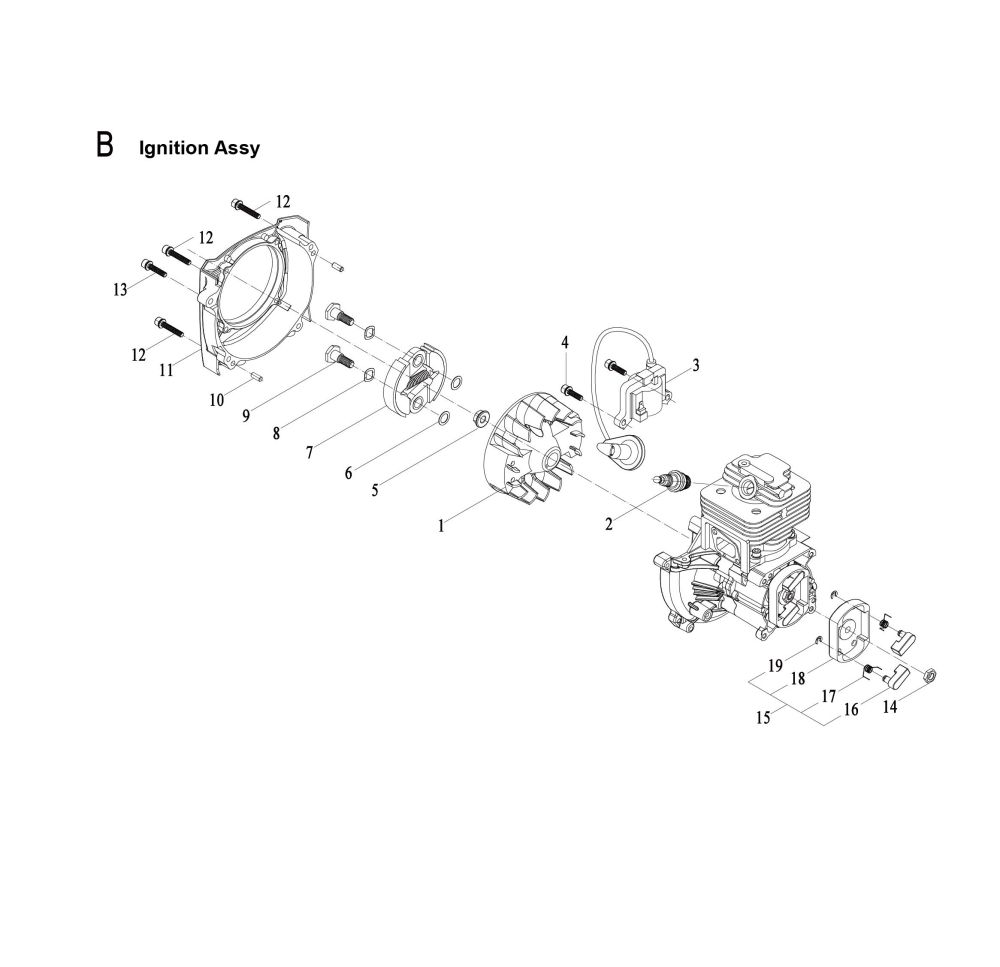

B Ignition Assy		E5	Grommet, Fuel Pipe
Code	Part Name	E6	Fuel Filter
B1	Flywheel	E7	Fuel Tank Assy
B2	Spark Plug	E8	Screw, Fuel Tank
B3	Ignition Coil(Mitsubishi)	E9	Guard, Fuel Tank
B4	Screw, Ignition Coil	E10	Screw, Fuel Tank

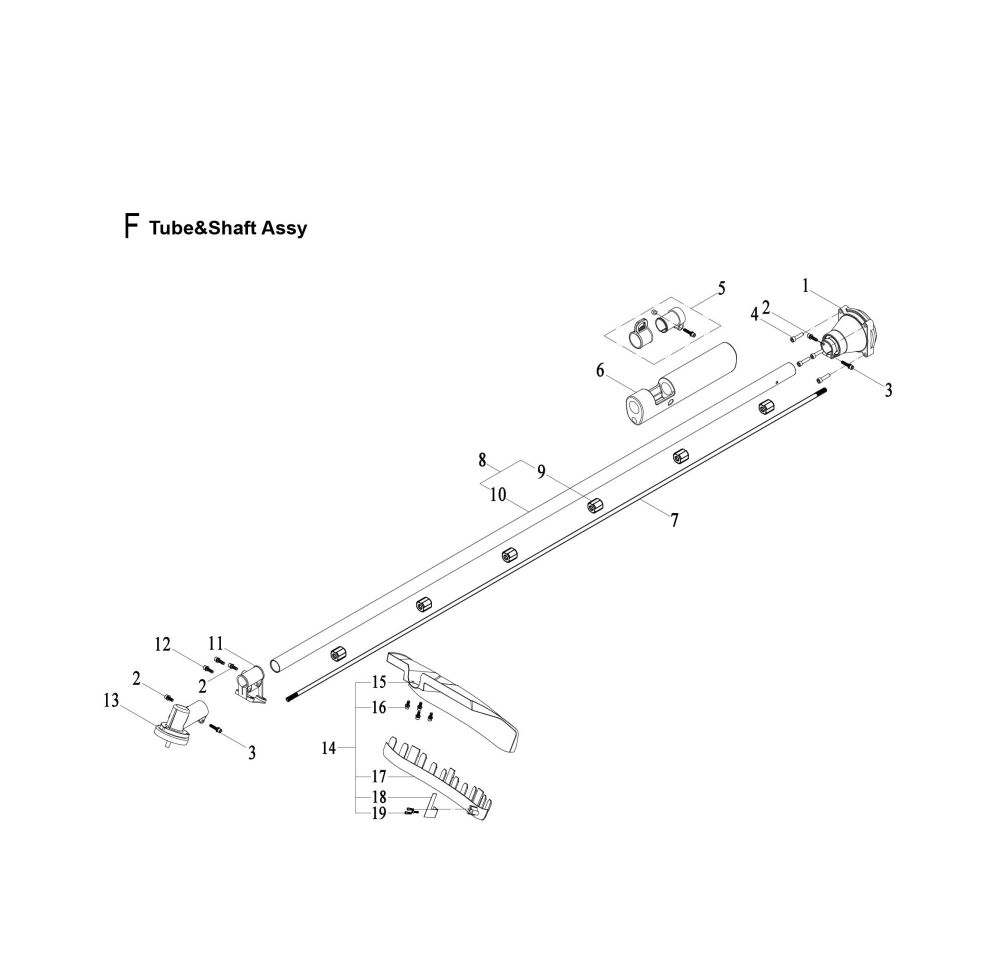

B5	Nut, Flywheel	F Tube&Shaft Assy
B6	Washer, Clutch	Code	Part Name
B7	Clutch	F1	Clutch Housing Assy
B8	Wave Washer	F2	Screw A
B9	Bolt, Clutch	F3	Screw B
B10	Dowel Pin	F4	Screw C
B11	Fan Cover	F5	Hook Clamp
B12	Screw, Fan Cover(L)	F6	Buffer Sleeve(Luxury)
B13	Screw, Fan Cover(S)	F7	Drive Shaft
B14	Nut	F8	Tube Set
B15	Starter Cup Assy	F9	Oil Bearings
B16	Pawl	F10	Tube (matte)
B17	Torsion Spring	F11	Deflector Seat
B18	Cup Body	F12	Screw, Deflector Seat
B19	E-clip	F13	Gearbox Assy

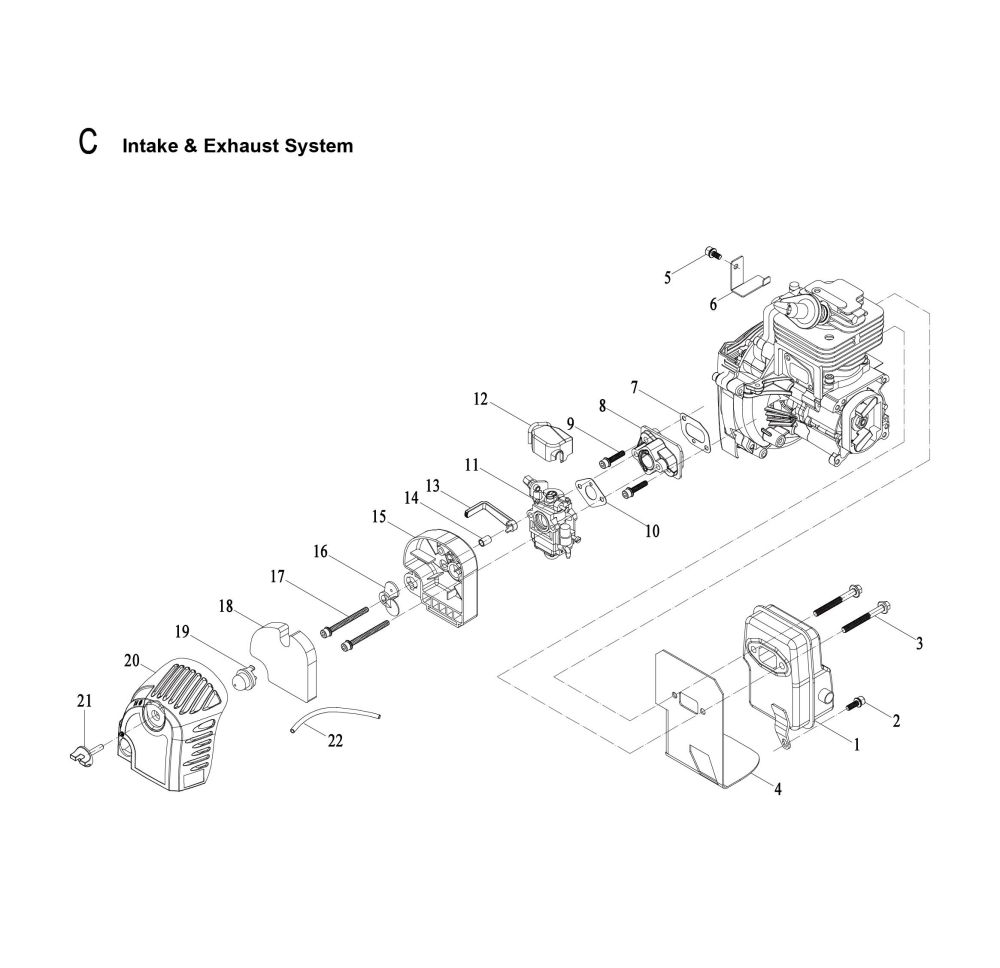

C Intake & Exhaust System		F14	Deflector Assy
Code	Part Name	F15	Deflector
C1	Muffler	F16	Screw, Deflector
C2	Screw，Muffler	F17	Deflector Skirt
C3	Screw(L), Muffler	F18	Blade
C4	Gasket, Muffler	F19	Screw, Skirt

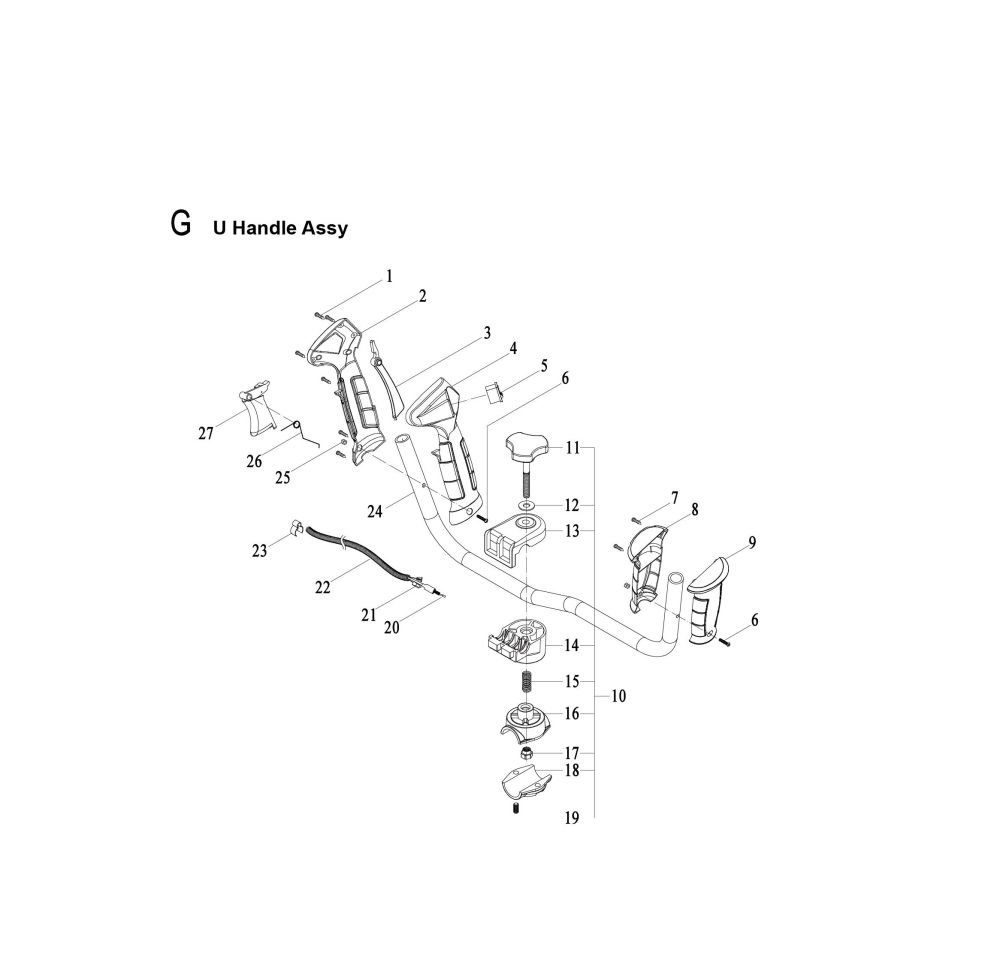

C5	Screw	G U-Handle Assy
C6	Support, Gasket	Code	Part Name
C7	Gasket, Monifold	G1	Screw, Control Handle
C8	Monifold	G2	Control Handle, R
C9	Screw, Monifold	G3	Interlock Trigger
C10	Gasket, Carburetor	G4	Control Handle, L
C11	Carburetor	G5	ON/OFF Switch
C12	Carburetor Cover	G6	Screw(L), Control Handle
C13	Choke Shutter	G7	Self-tapping Screw, Left Handle
C14	Sleeve	G8	Left Handle, R
C15	Filter Housing	G9	Left Handle, L
C16	Baffle Plate, Choke	G10	U-Handle Seat(Luxury)
C17	Screw, Air Filter	G11	Knob
C18	Air filter	G12	Washer, Knob
C19	Fuel Primer Bulb	G13	Upper Clamp
C20	Filter Cover	G14	Bottom Clamp
C21	Screw Plug	G15	Clamp Spring
C22	Fuel Ex. Hose	G16	Clamp Support

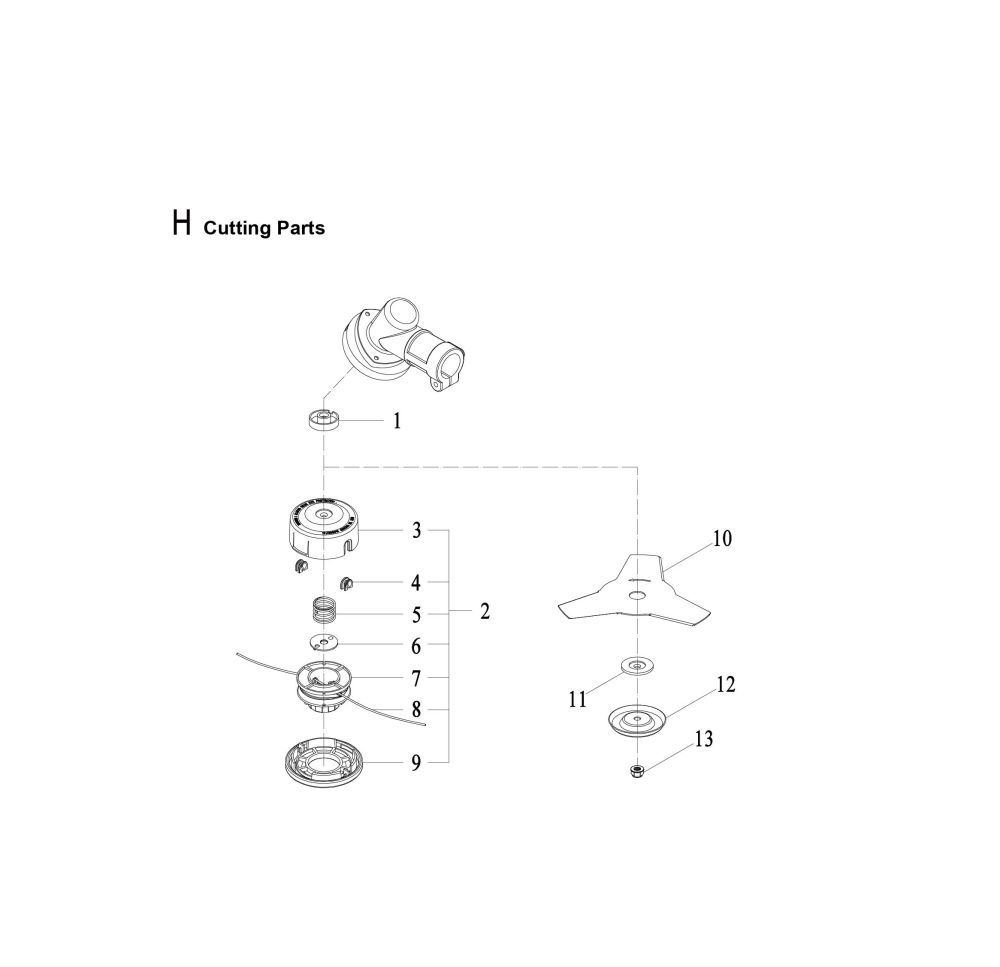

H Cutting Parts		G17	Nut
Code	Part Name	G18	Bottom Holder
H1	Trust Plate	G19	Screw
H2	Trimmer Head Assy	G20	Throttle Cable
H3	Housing, Trimmer Head	G21	STOP Wire
H4	Cutting Line Guide	G22	Cable Wave Hose
H5	Spring, Trimmer Head	G23	C-Clip
H6	Upper Over	G24	Tube, U-Handle
H7	Cutting Line Reel	G25	Self-tightening Locknut
H8	Nylon Cutting Line	G26	Torsion Spring,Throttle Trigger
H9	Bottom cover	G27	Throttle Trigger
H10	3-T Blade
H11	Trust Washer
H12	Guard, Gearbox
H13	Nut, Gearbox

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
