| Illustration A | Crankcase | Illustration H | Tank Housing |
| CODE | PART NAME | CODE | PART NAME |

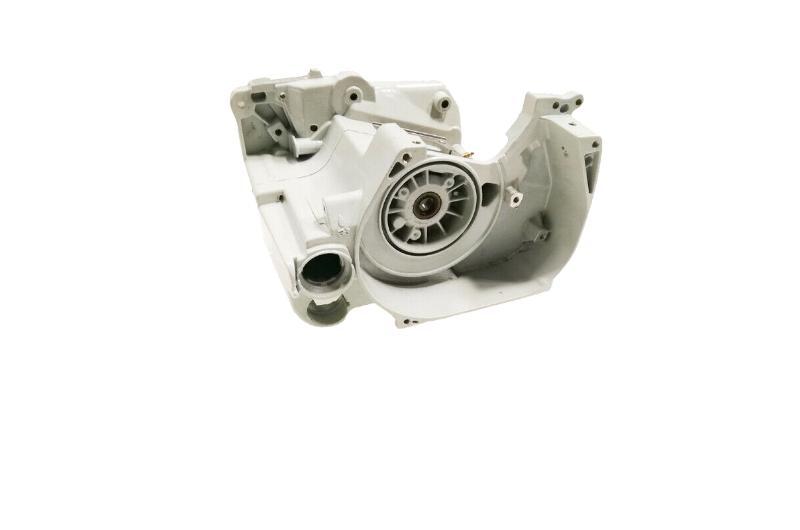

| A1~11 | Crankcase | H | Tank Housing |
| A8 | Spline Screw | H3 | Collar Screw |
| A9 | Circlip | H5~6 | Tank Vent |
| A10 | Grooved Ball Bearing | H7 | Filler Cap |
| A11 | Grooved Ball Bearing | H9 | Hose |
| A12 | Oil Seal | H10 | Pickup Body |
| A13 | Oil Seal | H12 | Switch Shaft |
| A14 | Hose | H14 | Contact Spring |

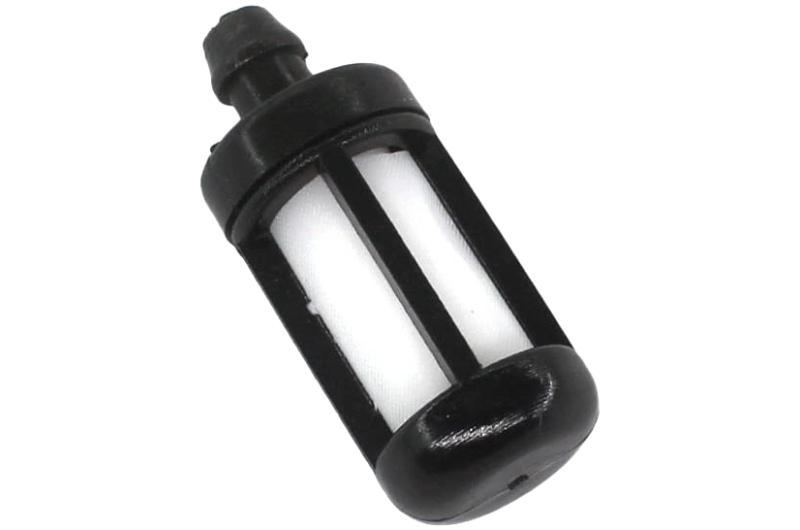

| A14,A15 | Pickup Body | H18 | Throttle trigger |
| A16 | Gasket | H19 | trigger Interlock |

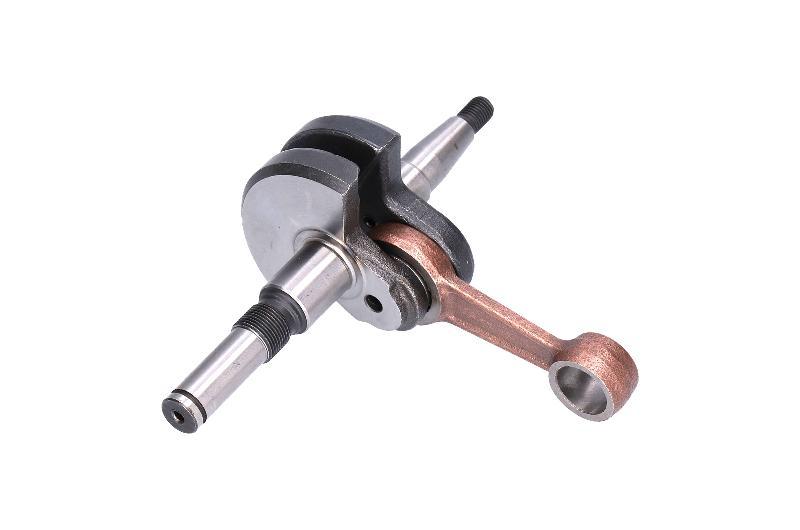

| A17 | Crankshaft | H20 | Throttle Rod |
| A18 | Woodruff Key | H21 | Torsion Spring |

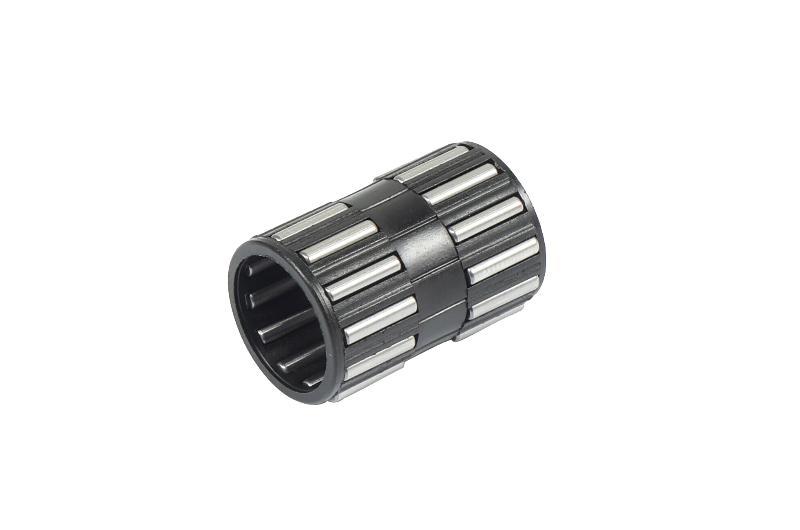

| A19 | Needle Cage | H23 | Pan Head Self-Tapping Screw |
| A20 | Filler Cap | H24 | Handle Molding |
| Illustration B | Cylinder | H25 | Washer |
| CODE | PART NAME | Illustration J | Air Filter, Handlebar |

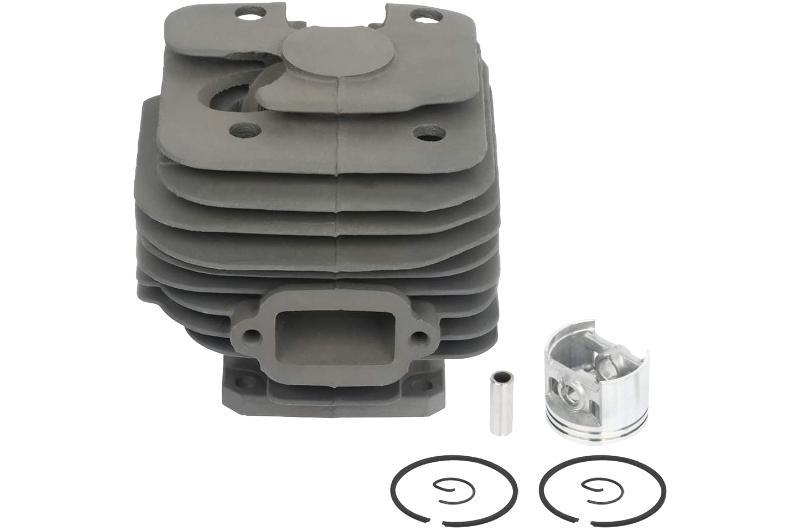

| B1~5 | Cylinder With Piston | Illustration M | AV System |
| B2 | Piston | CODE | PART NAME |

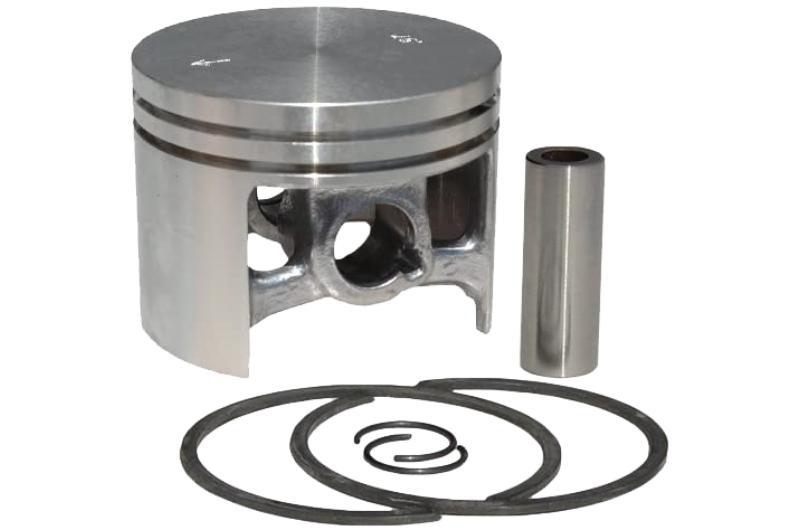

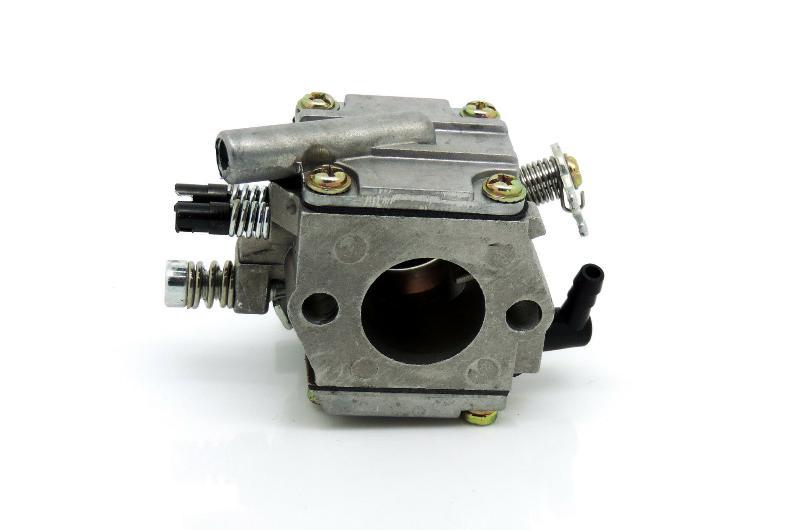

| B3 | Piston Ring | J1 | Carburetor Bing |
| B4 | Piston Pin | J3 | Grommet |

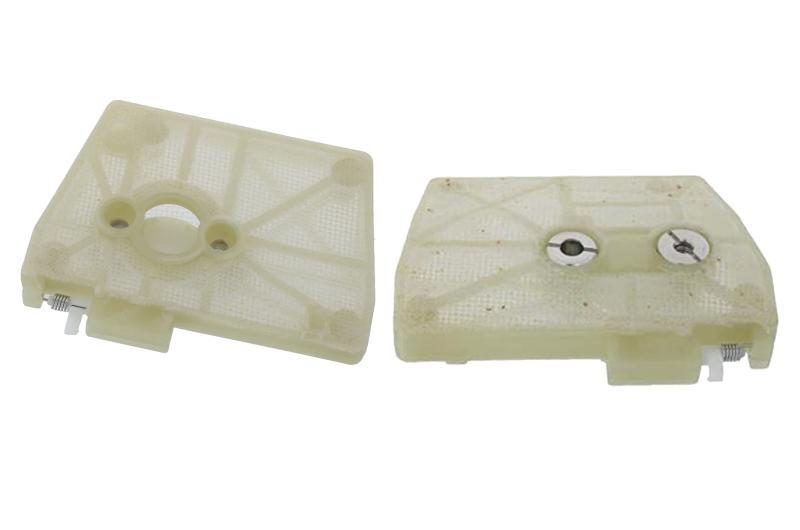

| B5 | Snap Ring | J4~10 | Air Filter, Wire Mesh |
| B6 | Cylinder Gasket | J12~13 | Handlebar |
| B8 | Spline Screw | J14 | Pan Head Self-Tapping Screw |

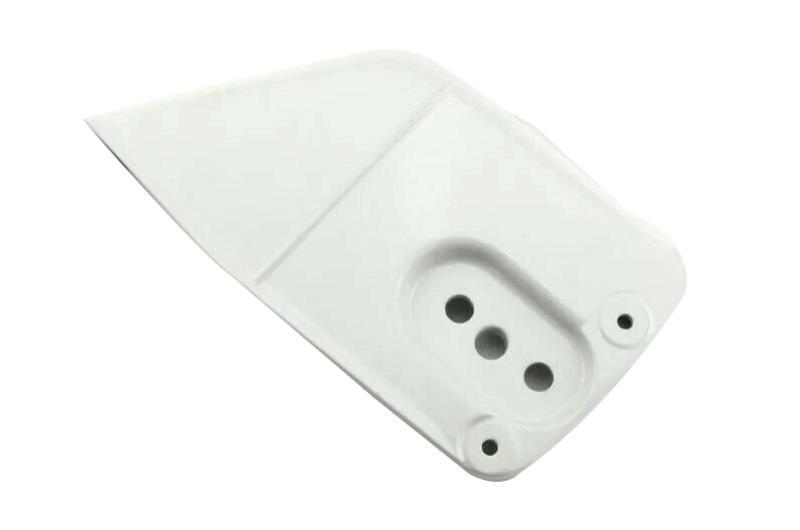

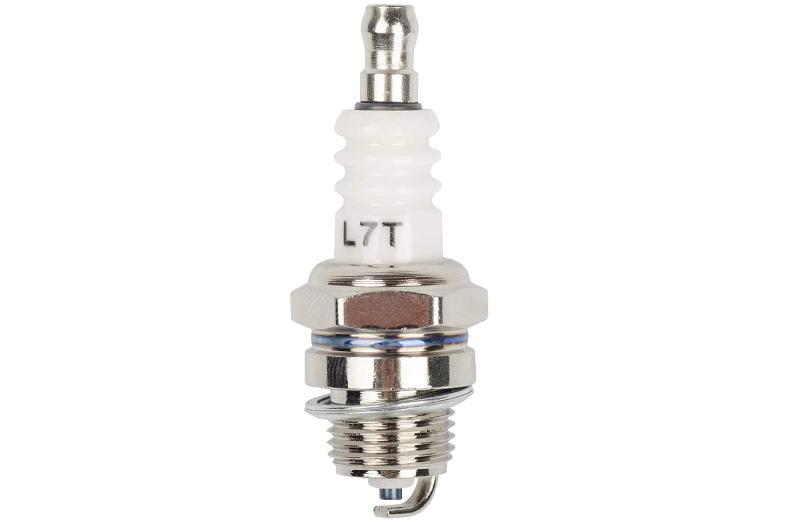

| B9 | Spark Plug | J15 | Chain Sprocket Cover |
| B10 | Exhaust Gasket | J16 | Bumper Strip |
| B11 | Hose Clip | J17 | Guard |
| B12 | Manifold | J18 | Collar Nut |
| B13 | Sleeve | M1 | Annular Buffer |
| A16,B6,B10,D1 | Set Of Gaskets | M2 | Pan Head Self-Tapping Screw |
| Illustration C | Muffler | M3 | Plug |
| Illustration D | Oil Pump | M4 | Plug |
| CODE | PART NAME | M5 | Chain Catcher |

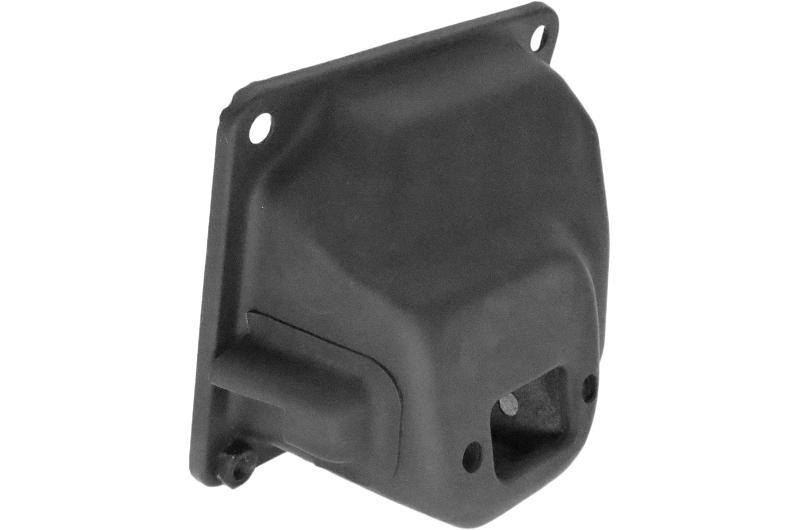

| C1~4 | Muffler Kit Standard | M6 | Self-Tapping Screw |
| D1 | Gasket | M7 | Annular Buffer |

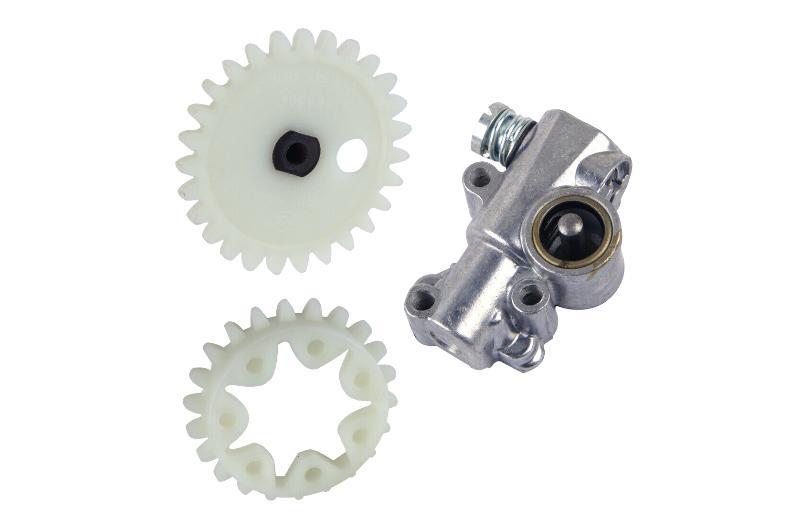

| D2 | Oil Pump | M8 | Plug |
| D | Oil Pump Assy | M9 | Annular Buffer |
| D5 | Worm | M10 | Spline Screw |
| D17 | Spline Screw | M11 | Retainer |
| Illustration E | Clutch | M12 | Pan Head Screw |
| CODE | PART NAME | Illustration N | Chain Tensioner, Carburetor Box Cover |
| E1 | Washer | CODE | PART NAME |

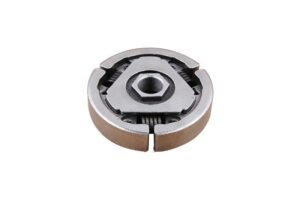

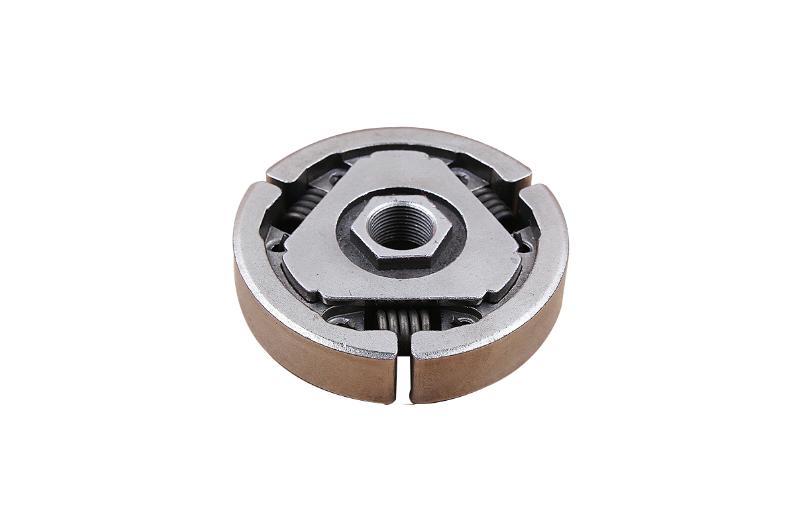

| E2~4 | Clutch | N1 | Collar Screw |
| E4 | Tension Spring | N2 | Spur Gear / Chain Adjusting Screw Kit |
| E5 | Chain Sprocket | N3 | O-Ring |
| E6 | Spur Gear | N4 | Tensioner Slide |
| E7 | Worm | N5 | Thrust Pad |
| E8 | Needle Cage | N6 | Cover Plate |
| E10 | Brake Band | N7 | Pan Head Screw |
| E11 | Lever | N8 | Support |
| E16 | Lever | N9 | Inner Side Plate |
| E17 | Sealing Washer | N10 | Bumper Spike |
| E18 | Tension Spring | N11 | Spline Screw |
| E19 | Spline Screw | N12 | Lock Nut |
| E20 | Cover | N13~17 | Carburetor Box Cover |
| E21 | Washer | N16~17 | Twist Lock |
| E22 | Circlip | N19 | Shroud |
| E23 | Washer | N21 | Collar Screw |
| E24 | E-Clip | N22 | Ring |
| E25 | Clutch Drum | ||

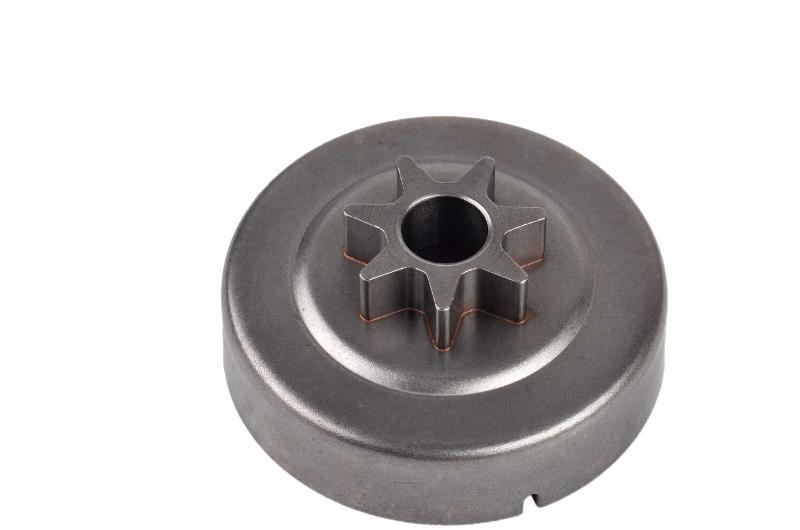

| E28 | Rim Sprocket | ||
| E29 | Hand Guard | ||
| E30 | Spline Screw | ||
| E33 | Spline Screw | ||
| Illustration F | Ignitiona System | ||
| Illustration G | Rewind Starter | ||
| CODE | PART NAME | ||

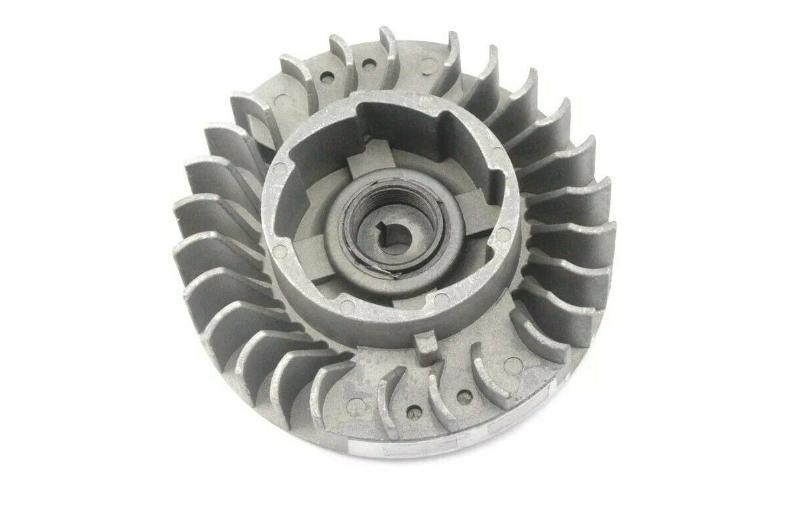

| F1 | Flywheel | ||

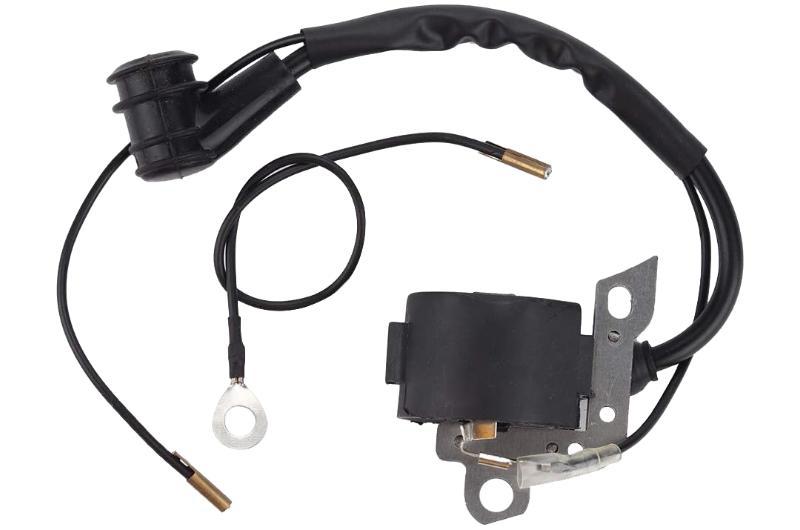

| F3~6, 9~14 | Lgnition Coil Complete | ||

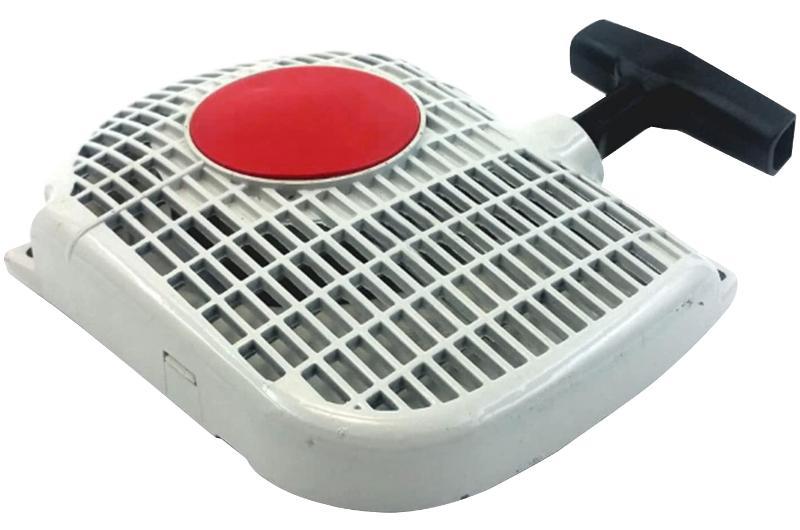

| G1-15 | Fan Housing With Rewind Starter | ||
| G1 | Fan Housing | ||

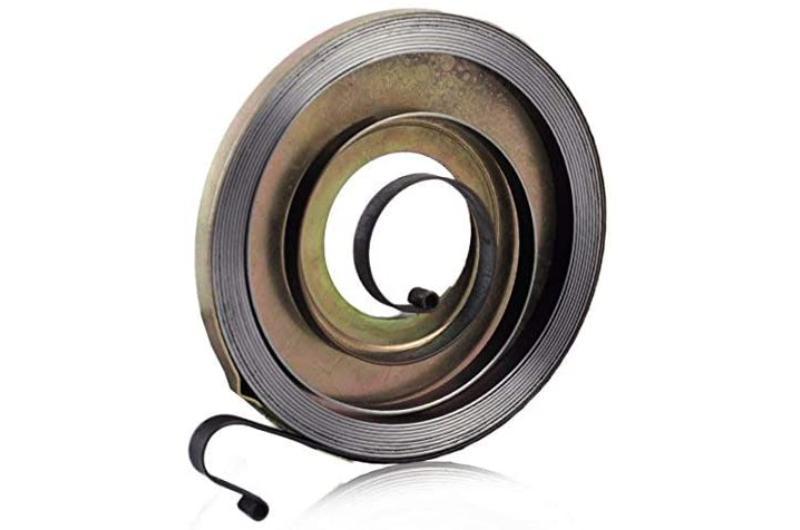

| G6~7 | Rewind Spring | ||
| G8 | Rope Rotor | ||
| G14 | Segment | ||
| G9~11 | Pawl+Washer+Spring | ||
| G12 | Starter Grip | ||
Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
